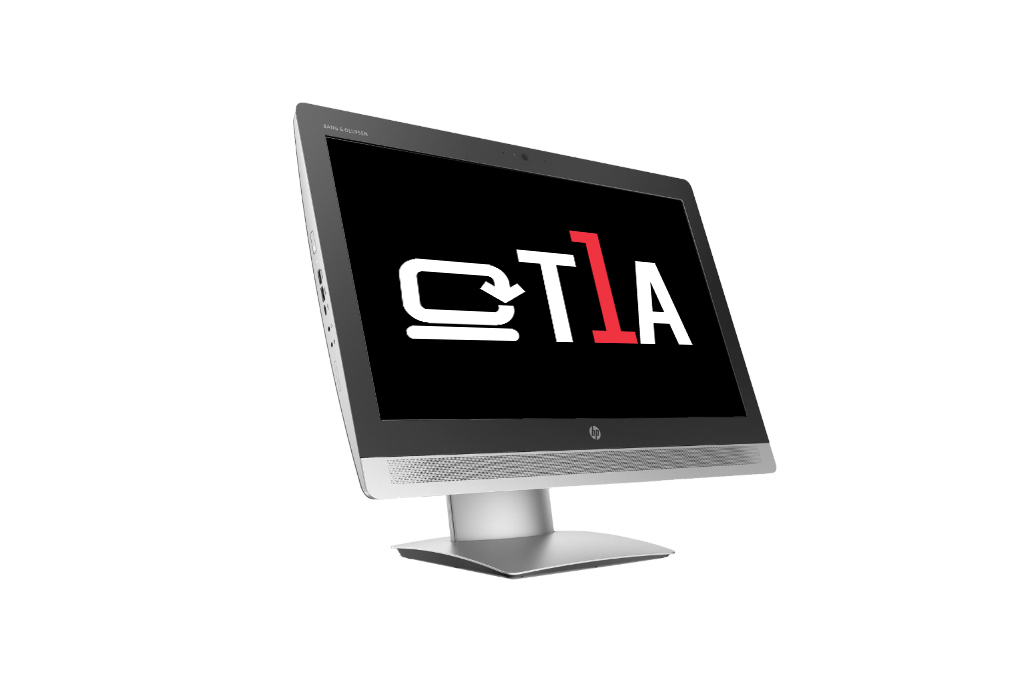

D-HPED800G2-MU-T013 PC/workstation Intel® Core™ i5 i5-6500

8 GB DDR4-SDRAM 120 GB SSD Windows 10 Pro Desktop Aluminium, Grey, Silver

Model D-HPED800G2-MU-T013EAN 5711603033993

131 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage120 GB
GraphicsNot available

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 120 GB
Graphics: Not available

Brand: T1A
Category: PCs/Workstations
Model: D-HPED800G2-MU-T013
Part number: D-HPED800G2-MU-T013
EAN / UPC: 5711603033993
Also known as: T1A D-HPED800G2-MU-T013 PC/workstation Intel® Core™ i5 i5-6500 8 GB DDR4-SDRAM 120 GB SSD Windows 10 Pro Desktop Aluminium, Grey, Silver

Specifications

131 specifications in 15 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	6th gen Intel® Core™ i5
Processor model	i5-6500
Processor cores	4
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	3.2 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-6500 Desktop series
Processor codename	Skylake
Thermal Design Power (TDP)	65 W
Tcase	71 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	R0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	2133,1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory slots	2x SO-DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	120 GB
Optical drive type	DVD+RW
Storage media	SSD

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1912
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	Workstation
Trusted Platform Module (TPM)	Yes

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	1
Line-out	Yes
Microphone in	Yes
DVI port	No
PS/2 ports quantity	2

Power

Specification	Value
Power supply input voltage	120 - 230 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Desktop
Number of 2.5" bays	1
Product colour	Aluminium, Grey, Silver
Refurbished	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	Multilingual

Display

Specification	Value
Display included	Yes
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88184
Processor code	SR2BX
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.2, AVX 2.0, SSE4.1
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
