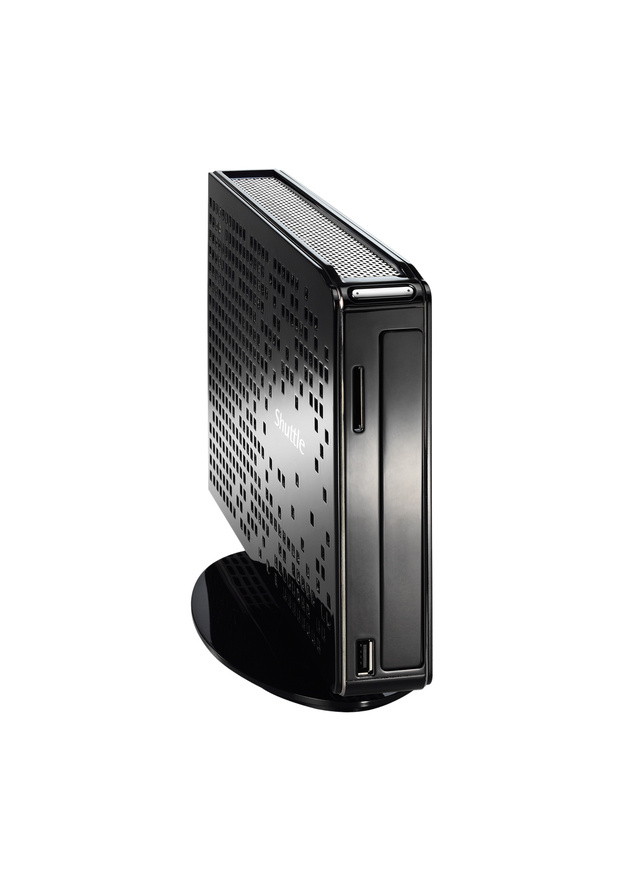

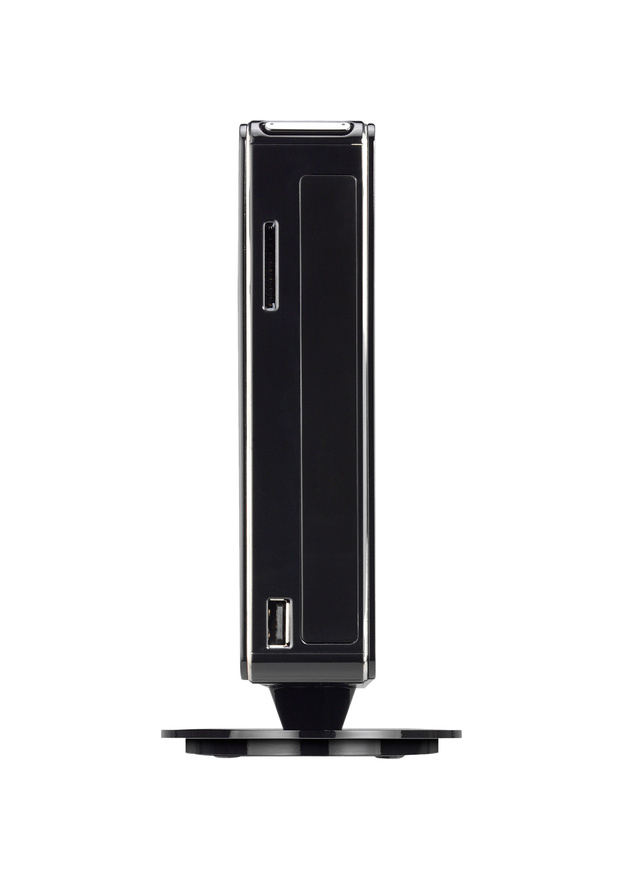

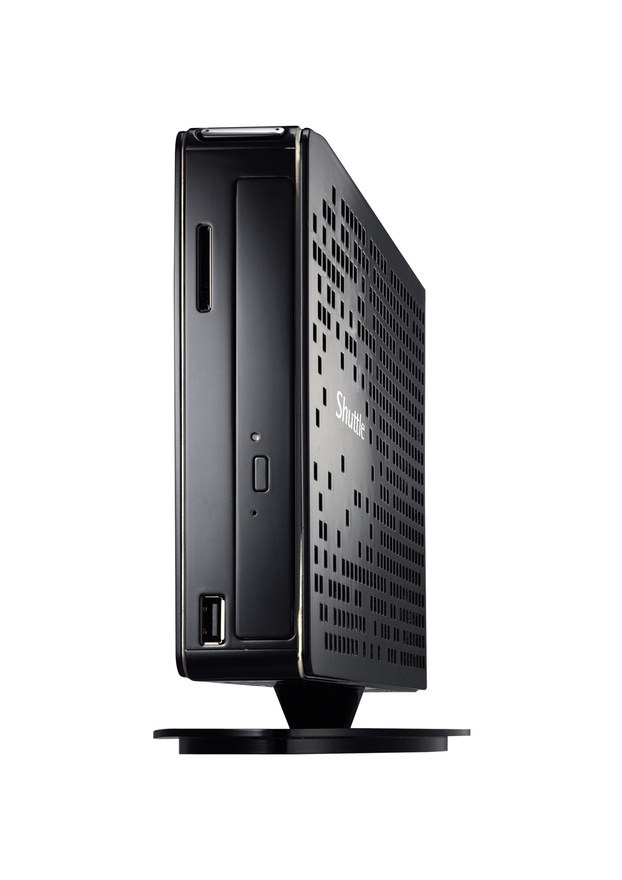

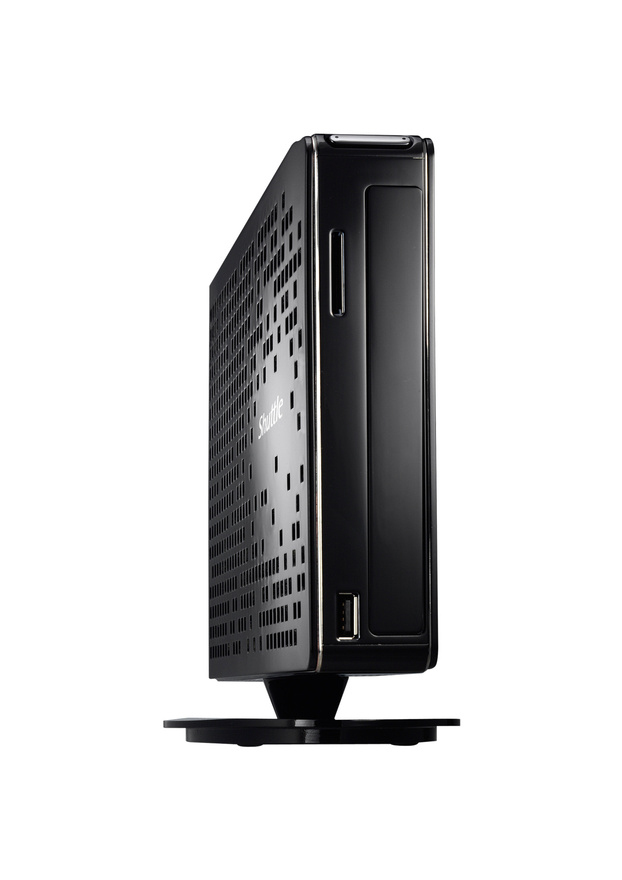

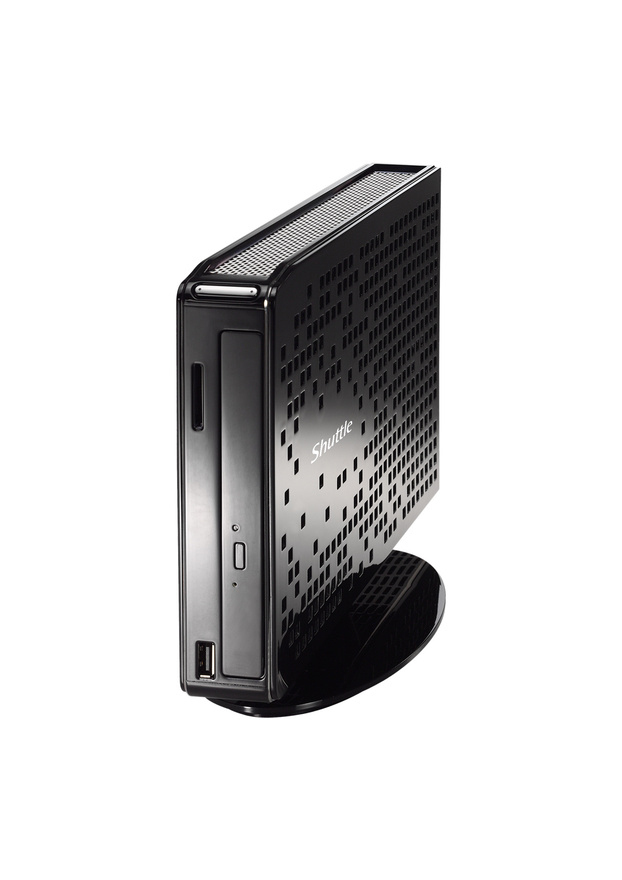

XS35703V2 PC Intel Atom® D525
2 GB DDR3-SDRAM 160 GB Intel® GMA 3150 Mini PC Black
Model XS35703V2
118 specifications
- ProcessorIntel Atom®
- Memory2 GB
- Storage160 GB
- GraphicsIntel® GMA 3150
- SpeedWi-Fi 4 (802.11n)
- TypeMini PC
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 3150
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Mini PC
- Brand
- Shuttle
- Category
- PCs/Workstations
- Model
- XS35703V2
- Part number
- XS35703V2
- Also known as
- Shuttle XS35703V2 PC Intel Atom® D525 2 GB DDR3-SDRAM 160 GB Intel® GMA 3150 Mini PC Black
Specifications
118 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D525 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.8 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Bus type | DMI |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Atom D500 Series |
| Processor codename | Pineview |
| Thermal Design Power (TDP) | 13 W |
| Tjunction | 100 °C |
| Number of processors installed | 1 |
| Processor socket | BGA 559 |
| Number of Processing Die Transistors | 176 M |
| Processing Die size | 87 mm² |
| Stepping | B0 |
| Maximum internal memory supported by processor | 4 GB |
| Memory types supported by processor | DDR3 800 (SODIMM only); DDR2 667/800 |
| Memory bandwidth supported by processor (max) | 6.4 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Single-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | No |
| Number of HDDs installed | 1 |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MS PRO, SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 3150 |
| On-board graphics card model | Integrated |
| Maximum graphics card memory | 0.256 GB |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel NM10 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Networking features | Gigabit Ethernet, WLAN |

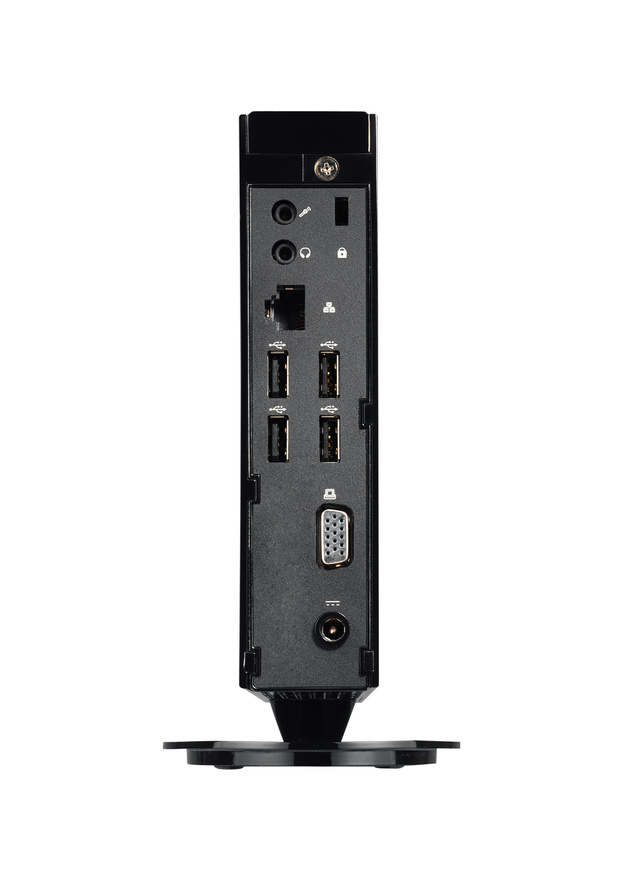

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| DC-in jack | Yes |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power supply | 40 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (typical) | 20 W |
Design
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows 7, Windows XP, Linux |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Processor ARK ID | 49490 |
| Processor code | SLBXC |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | IDT92HD81 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 38.5 mm |
| Depth | 252 mm |
| Height | 162 mm |
| Weight | 1.8 kg |
| Dimensions (WxDxH) | 38.5 x 252 x 162 mm |
Certificates
| Specification | Value |
|---|---|
| Safety | CB, BSMI, ETL |
| Compliance certificates | RoHS |
| Certification | CE, FCC, BSMI, C-Tick |
