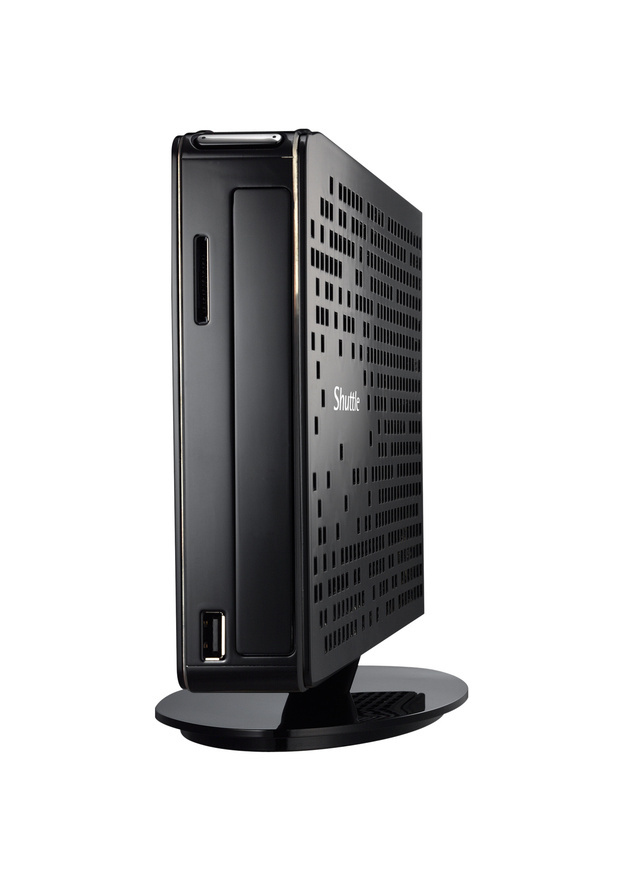

Shuttle XS350VA V2

Model XS350VA V2EAN 4046047102266

143 specifications

ProcessorIntel Atom®
Memory2 GB
Storage320 GB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypeMini PC

See all specifications

Overview

Processor: Intel Atom®
Memory: 2 GB
Storage: 320 GB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: Mini PC

Brand: Shuttle
Category: PCs/Workstations
Model: XS350VA V2
Part number: XS350VA V2
EAN / UPC: 4046047102266
Also known as: Shuttle XS350VA V2 PC Intel Atom® D525 2 GB DDR3-SDRAM 320 GB HDD Linux Small Desktop Mini PC Black

Specifications

143 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor cores	2
Processor threads	4
Processor frequency	1.8 GHz
Processor cache	1 MB
Processor cache type	L2
Bus type	DMI
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Processor codename	Pineview
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Number of processors installed	1
Processor socket	BGA 559
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Stepping	B0
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3 800 (SODIMM only); DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory slots	2
Memory channels	Single-channel

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	No
Storage media	HDD
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
HDD size	2.5"
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MS PRO, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Integrated
Maximum graphics card memory	0.256 GB
Graphics card family	Intel
Maximum resolution	2048 x 1536 pixels

Performance

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel NM10
Compatible processor series	Intel Atom®

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Gigabit Ethernet
Networking features	Gigabit Ethernet, WLAN

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	No
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
S/PDIF out port	No
DC-in jack	Yes
SmartCard slot	No
Serial ports quantity	0
Parallel ports quantity	0
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm

Power

Specification	Value
Power supply	40 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Power consumption (standby)	16 W
Power consumption (typical)	20 W

Design

Specification	Value
Chassis type	Small Desktop
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Form factor	1,3L-sized PC

Software

Specification	Value
Operating system installed	Linux

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	49490
Processor code	SLBXC
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	IDT92HD81

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C

Weight & dimensions

Specification	Value
Width	38.4 mm
Depth	252 mm
Height	162 mm
Weight	1.8 kg
Dimensions (WxDxH)	38.4 x 252 x 162 mm

Packaging data

Specification	Value
Package weight	2.5 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
Cables included	AC
AC adapter included	Yes

Certificates

Specification	Value
Safety	CB, BSMI, ETL
Compliance certificates	RoHS
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Certification	CE, FCC, BSMI, C-Tick
