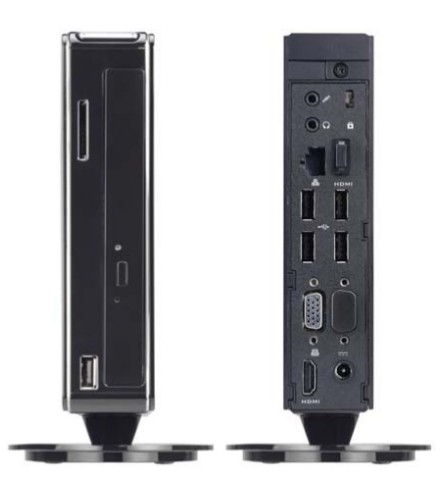

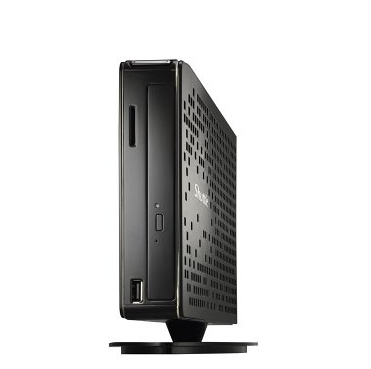

XS 3520MA V3
Model XS 3520MA V3Part no. XS3520MA V3EAN 4046047102402
178 specifications
- ProcessorIntel Atom®
- Memory2 GB
- Storage500 GB
- GraphicsAMD Radeon HD 7410M
- SpeedWi-Fi 4 (802.11n)
- TypeMini PC
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 500 GB
- Graphics
- AMD Radeon HD 7410M
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Mini PC
- Brand
- Shuttle
- Category
- PCs/Workstations
- Model
- XS 3520MA V3
- Part number
- XS3520MA V3
- EAN / UPC
- 4046047102402
- Also known as
- Shuttle XS 3520MA V3 Intel Atom® D2700 2 GB DDR3-SDRAM 500 GB HDD AMD Radeon HD 7410M Windows 7 Home Premium Mini PC Black
Specifications
178 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D2700 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.13 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 2.5 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Atom D2700 Series |
| Processor codename | Cedarview |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 4 |
| Number of processors installed | 1 |
| Processor socket | BGA 559 |
| Stepping | B2 |
| Maximum internal memory supported by processor | 4 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 6.4 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 2 |
| Memory clock speed | 1333 MHz |
| Memory channels | Single-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD-RW |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| HDD size | 2.5" |
| Number of SSDs installed | 0 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | AMD Radeon HD 7410M |
| Discrete graphics card memory | 0.5 GB |
| Discrete graphics memory type | GDDR3 |
| On-board graphics card model | Integrated |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 640 MHz |
| Graphics card | Radeon HD 7410M |
| Graphics card family | AMD |
| Maximum resolution | 2048 x 1536 pixels |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel NM10 |
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 150 Mbit/s |
| Bluetooth | No |
| Internal modem | No |
| Wake-on-LAN ready | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet interface type | Gigabit Ethernet |
| Fibre Channel | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| DisplayPorts quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | No |
| Headphone outputs | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 0 |
| S/PDIF out port | No |
| DC-in jack | Yes |
| SmartCard slot | No |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
| Modem (RJ-11) ports | 0 |
| COM ports quantity | 0 |
| HDMI | Yes |
| Headphone connectivity | 3.5 mm |
| Microphone connectivity | 3.5 mm |
| USB ports quantity | 5 |
| eSATA/USB 2.0 ports quantity | 0 |
| Total number of SATA connectors | 2 |
| USB 1.1 ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x16 slots | 0 |
| Mini PCI Express slots | 1 |
| PCI slots | 0 |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
Power
| Specification | Value |
|---|---|
| Power requirements | 19V / 2.1A |
| Power supply | 40 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (typical) | 20 W |
Design
| Specification | Value |
|---|---|
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cooling type | Passive |
| Form factor | 1,3L-sized PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Operating system architecture | 32-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel ME Firmware Version | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 59683 |
| Processor code | SR0D9 |
| Processor package size | 22 X 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
| Built-in microphone | No |
| Speakers | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 38.5 mm |
| Depth | 252 mm |
| Height | 162 mm |
| Weight | 1.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Cables included | AC |
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Safety | CB, BSMI, ETL |
| Compliance certificates | RoHS |
| Certification | CE, FCC, BSMI, C-Tick, CCC Eup Lot6 |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Other features
| Specification | Value |
|---|---|
| Security features | WPA/WPA2(-PSK), WEP 64/128bit, IEEE 802.11x/i |
| TV tuner integrated | No |
