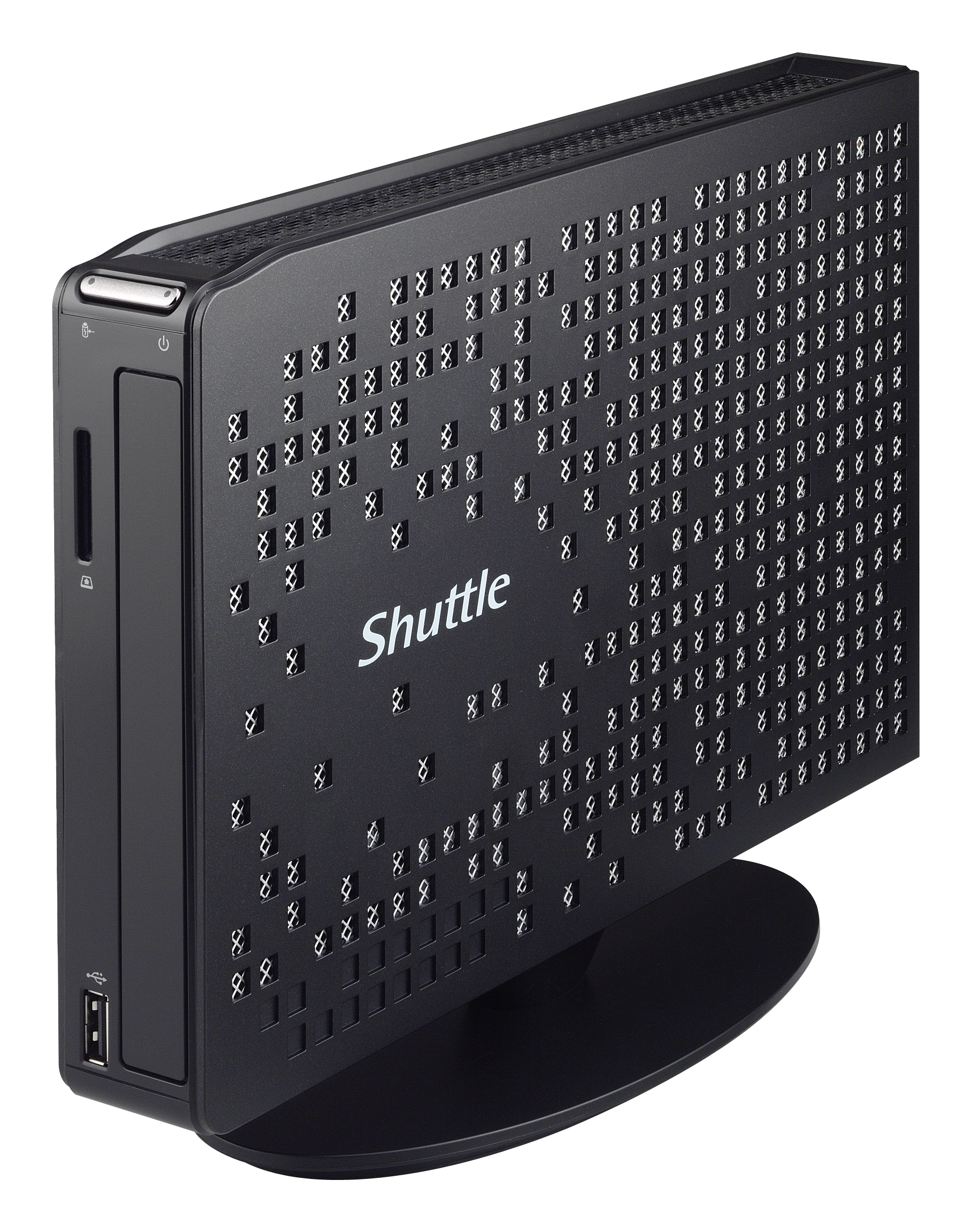

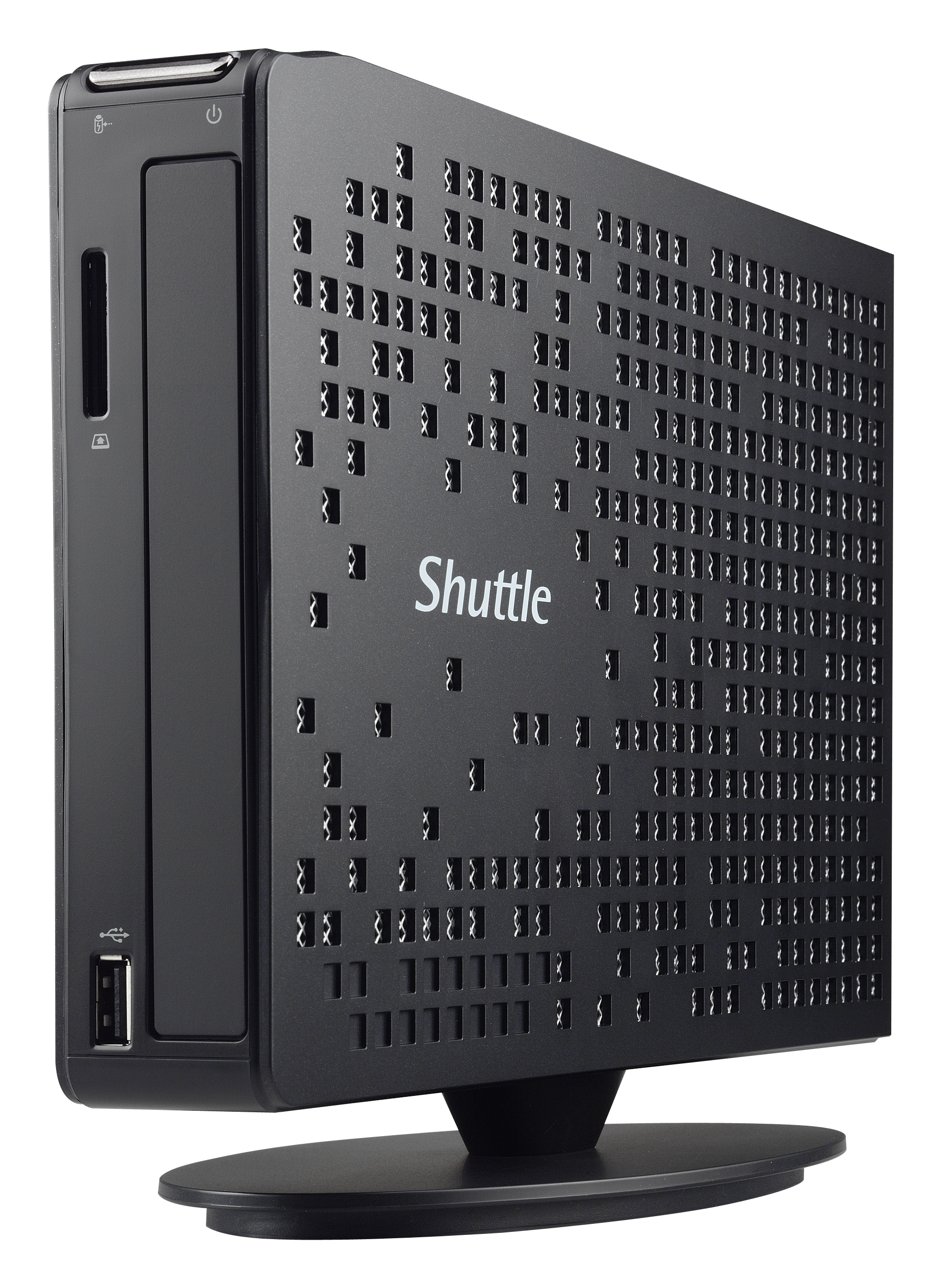

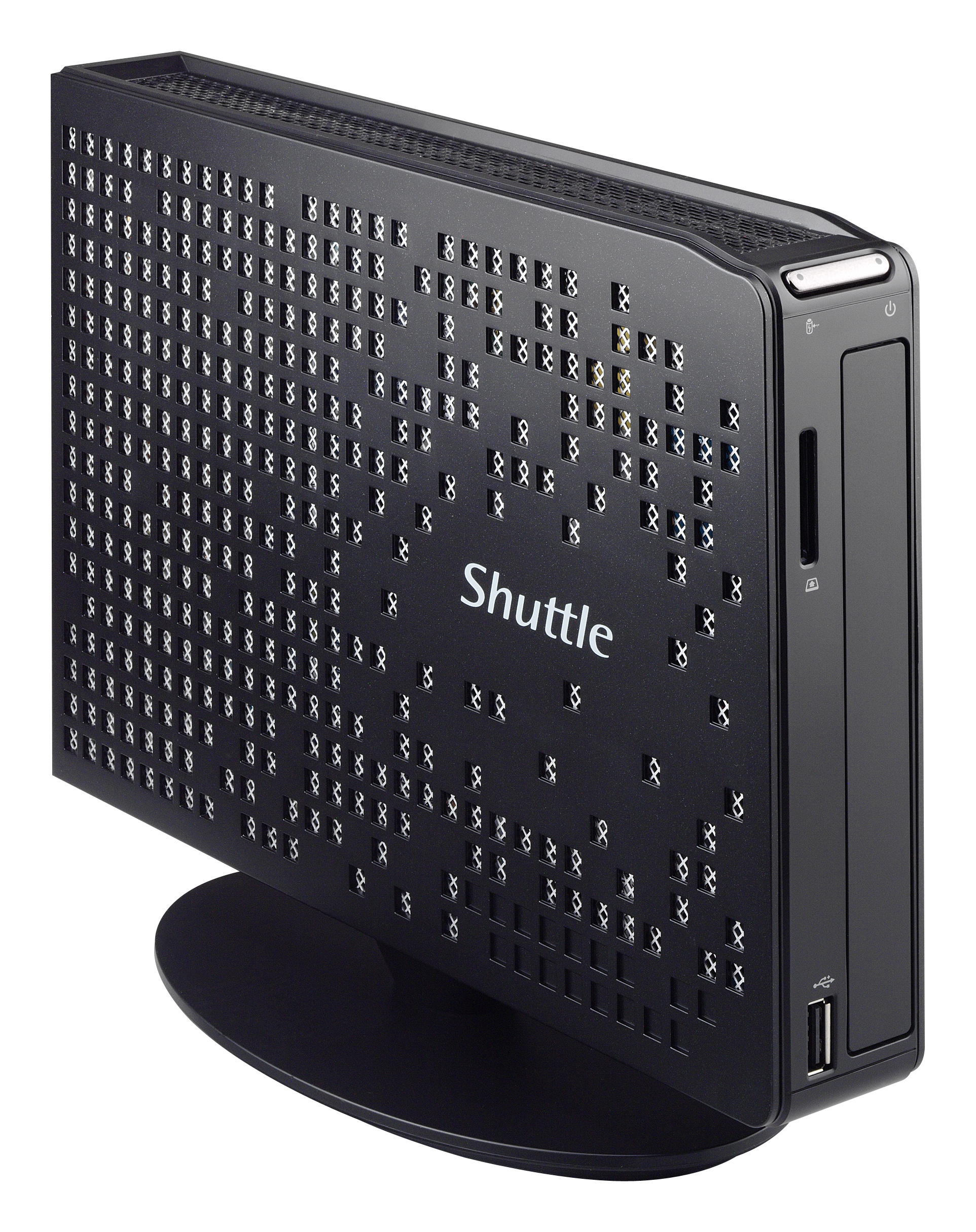

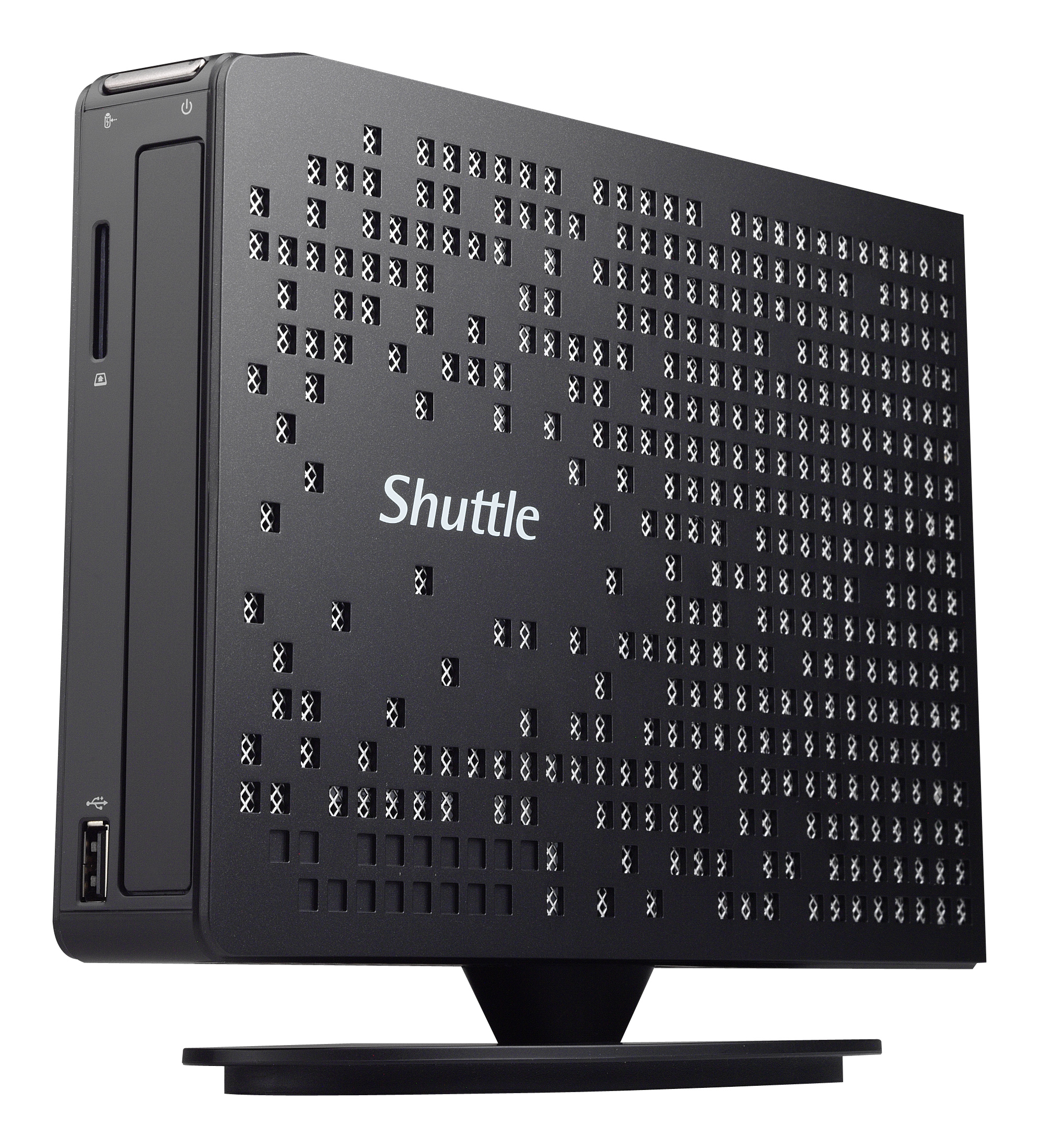

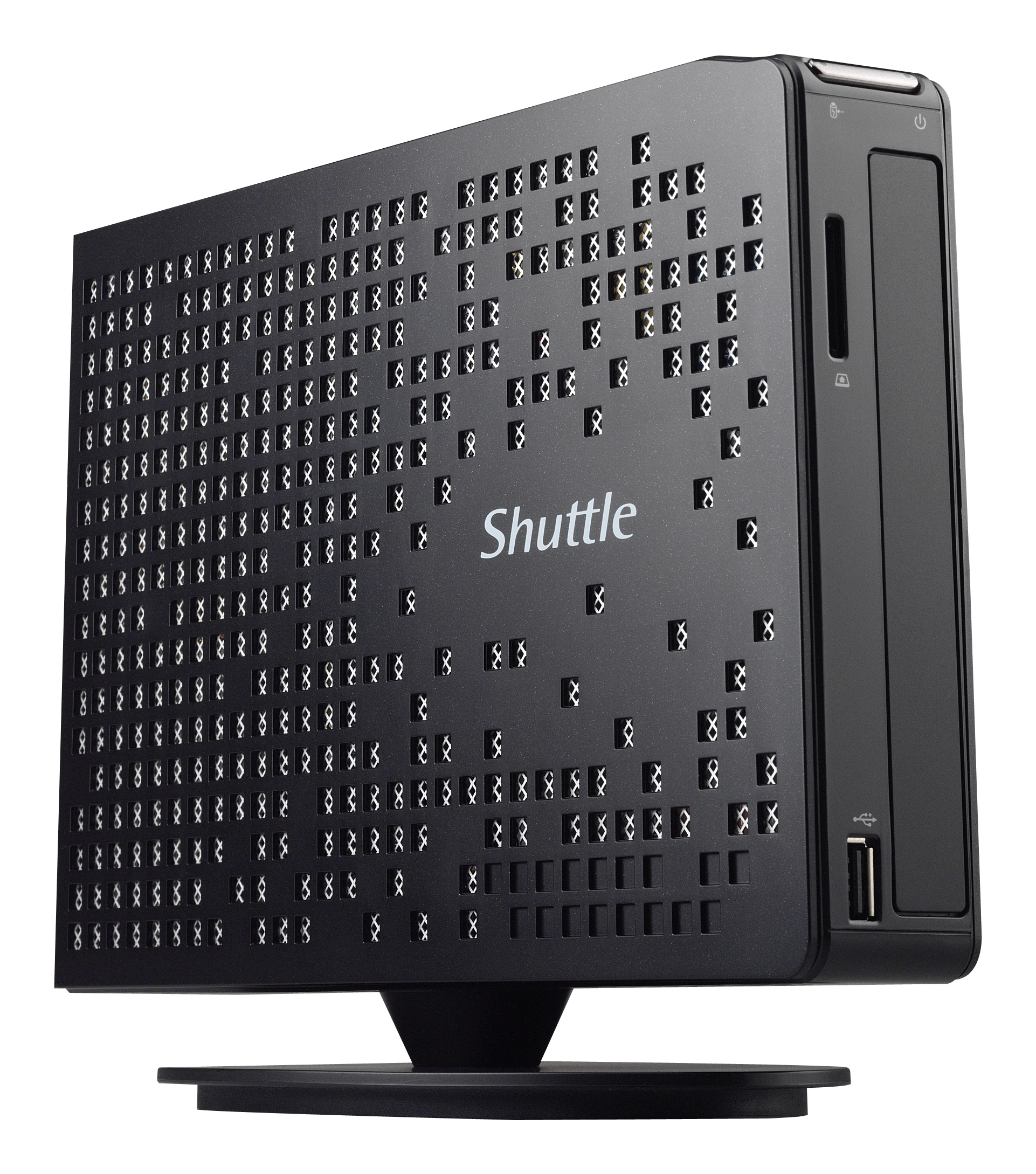

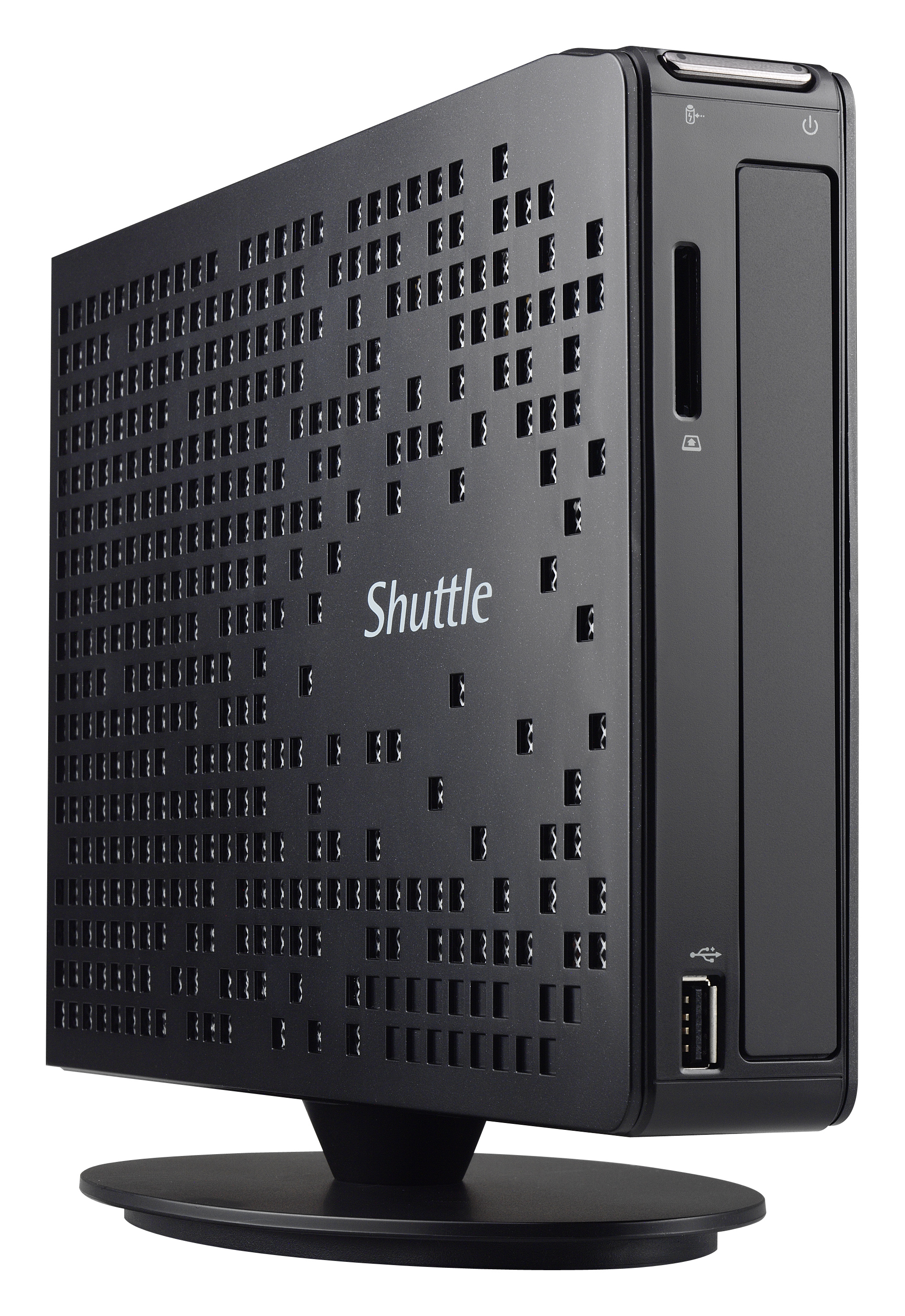

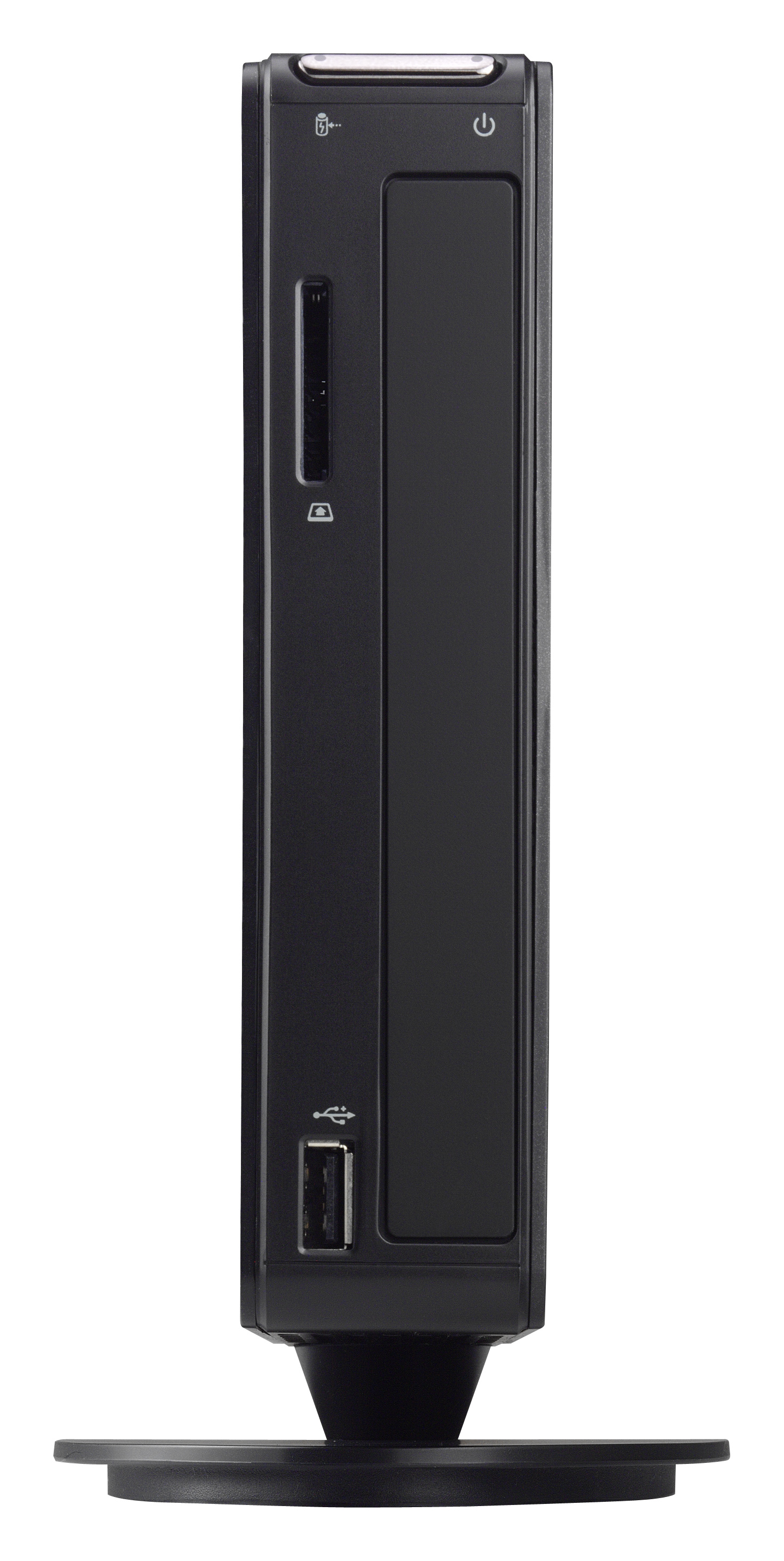

Shuttle XS 3500BB V4

Model XS 3500BB V4Part no. XS3500BBV4EAN 887993600284

137 specifications

ProcessorIntel® Celeron®
Memory2 GB
Storage32 GB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypeMini PC

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 2 GB
Storage: 32 GB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: Mini PC

Brand: Shuttle
Category: PCs/Workstations
Model: XS 3500BB V4
Part number: XS3500BBV4
EAN / UPC: 887993600284
Also known as: Shuttle XS 3500BB V4 Intel® Celeron® J1900 2 GB DDR3L-SDRAM 32 GB SSD Windows 8.1 with Bing Mini PC Black

Specifications

137 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J1900
Processor cores	4
Processor threads	4
Processor boost frequency	2.42 GHz
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	L2
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor J1000 series for Desktop
Processor codename	Bay Trail
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1170
Stepping	B3
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333 MHz
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	1x SO-DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	32 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	2
Number of SSDs installed	1
SSD capacity	32 GB
SSD interface	SATA
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	688 MHz
On-board graphics card dynamic frequency (max)	854 MHz
Graphics card Open GL support	Yes

Performance

Specification	Value
Product type	Mini PC

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wake-on-LAN ready	Yes

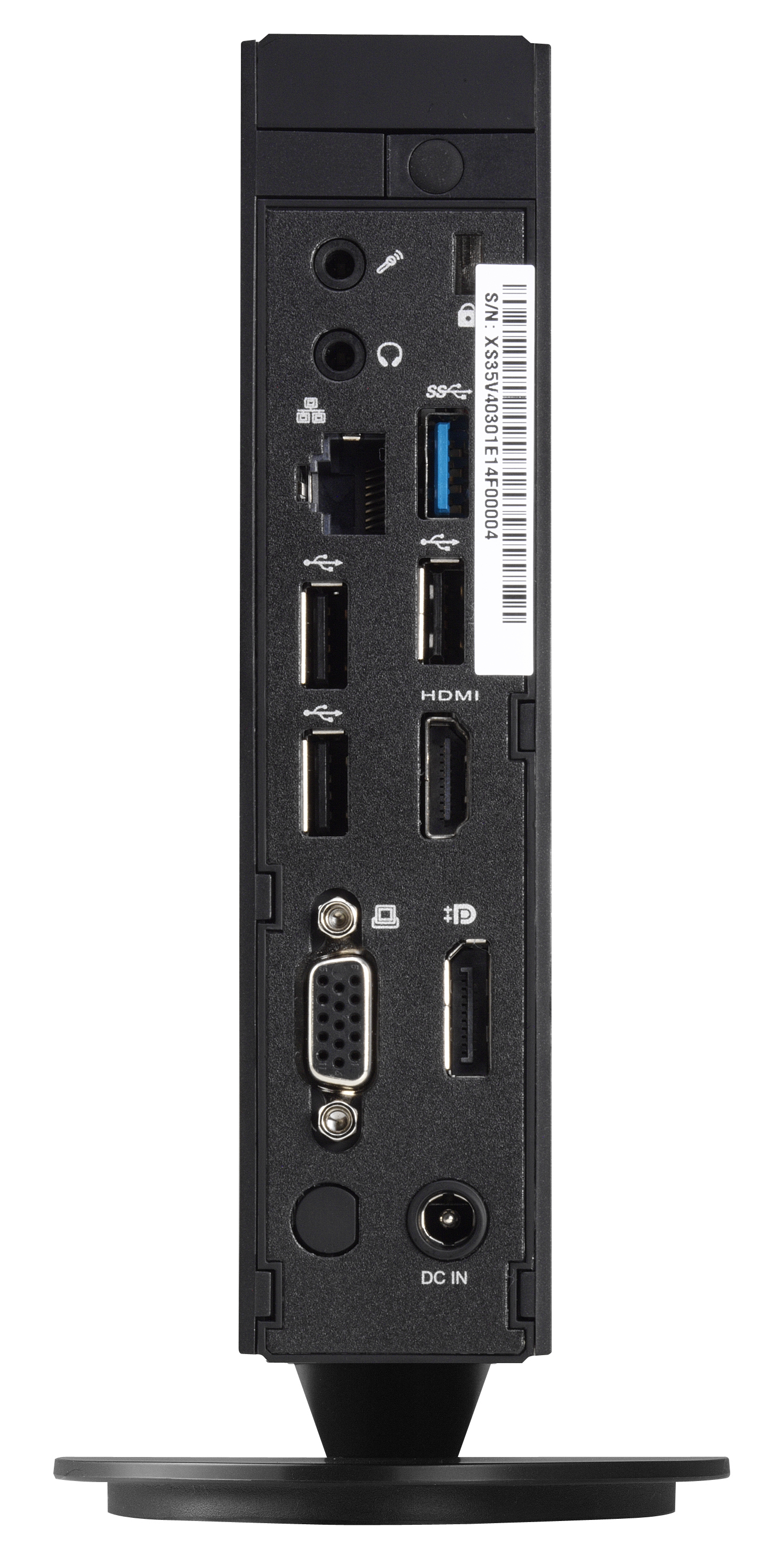

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
DC-in jack	Yes

Power

Specification	Value
Power supply	40 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Power consumption (standby)	7.5 W

Design

Specification	Value
Chassis type	Mini PC
Volume	1.5 L

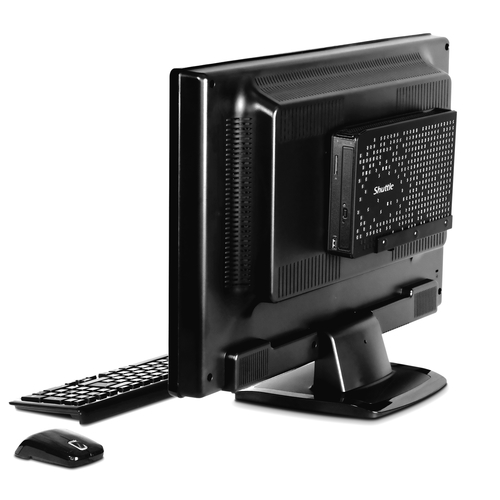

Panel mounting interface	75 x 75,100 x 100 mm
Placement supported	Vertical
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 8.1 with Bing
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	78867
Processor code	SR1SC
Processor package size	25 X 27 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	37.5 mm
Depth	250 mm
Height	160 mm
Weight	2.1 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CE, FCC, BSMI, C-Tick, CCC, CB, ETL, Eup Lot6
