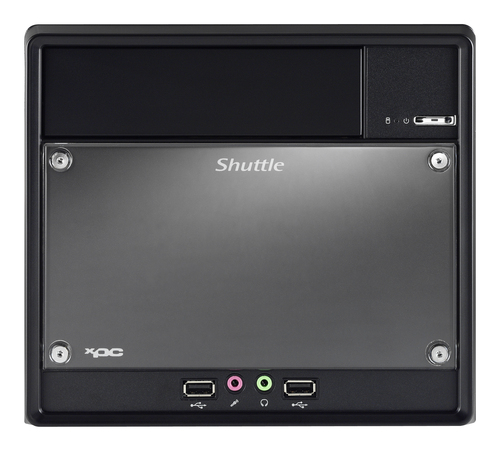

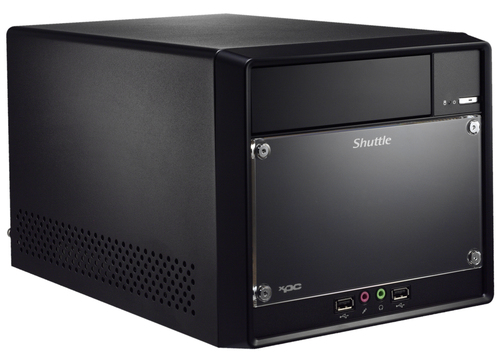

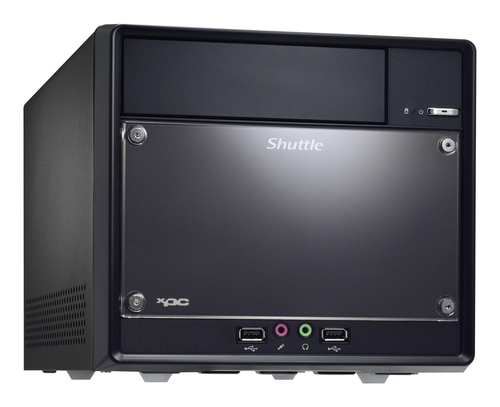

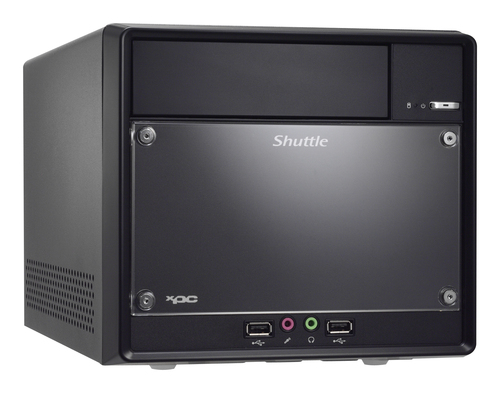

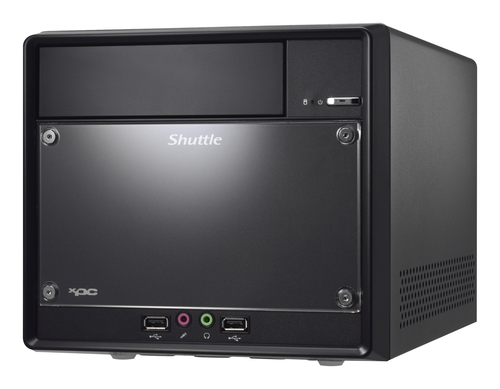

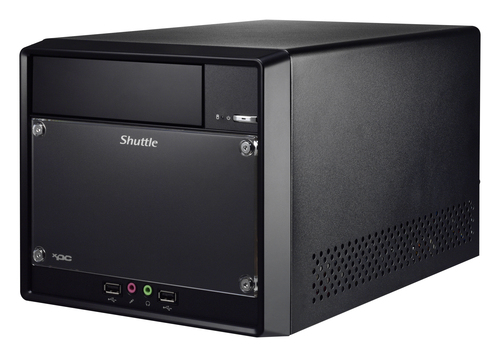

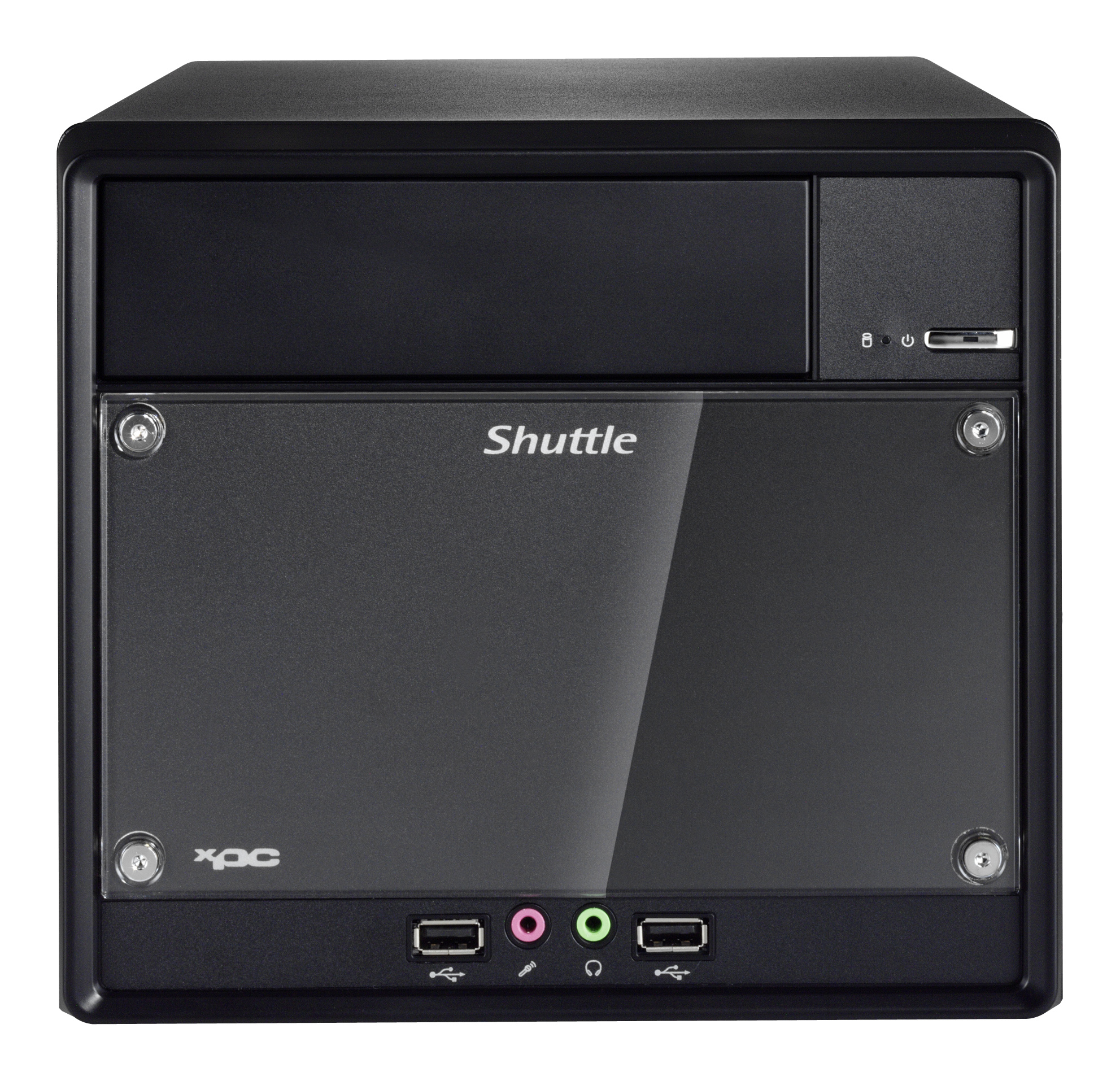

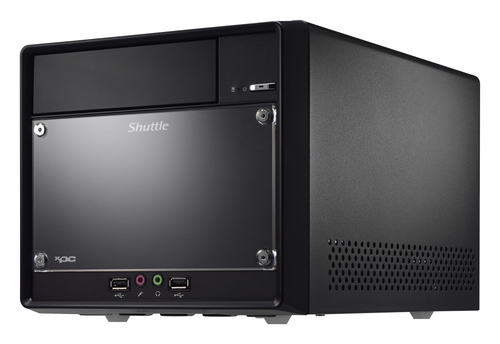

Shuttle XPC J4 4100BA

Model XPC J4 4100BAPart no. J4 4100BAEAN 4046047102334

116 specifications

ProcessorIntel® Pentium®
Memory2 GB
Storage320 GB
GraphicsNot available
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 2 GB
Storage: 320 GB
Graphics: Not available
Type: PC
OS: Windows 7 Professional

Brand: Shuttle
Category: PCs/Workstations
Model: XPC J4 4100BA
Part numbers: J4 4100BA, PCT-J4410BA1
EAN / UPC: 4046047102334
Also known as: Shuttle XPC J4 4100BA Intel® Pentium® E6500 2 GB DDR3-SDRAM 320 GB Windows 7 Professional PC Black

Specifications

116 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	E6500
Processor cores	2
Processor threads	2
Processor frequency	2.93 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium E6000 Series for Desktop
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	74.1 °C
PCI Express slots version	1.0
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	11
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	DVD-RW
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® GMA
On-board graphics card model	Intel® GMA X4500
Maximum graphics card memory	1.759 GB
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® G41
Motherboard southbridge	Intel ICH7
Audio output channels	5.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
Serial ports quantity	0
Parallel ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power requirements	100 - 240V
Power supply	250 W

Design

Specification	Value
Number of 5.25" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
External drive bays	1
Internal drive bays	2

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	42805
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	IDT 92HD89C

Weight & dimensions

Specification	Value
Width	215 mm
Depth	325 mm
Height	190 mm
Weight	7 kg

Packaging data

Specification	Value
Package weight	7.5 kg

Certificates

Specification	Value
Safety	CB, BSMI
Compliance certificates	RoHS
Certification	FCC, CE, BSMI, Eup Lot6
