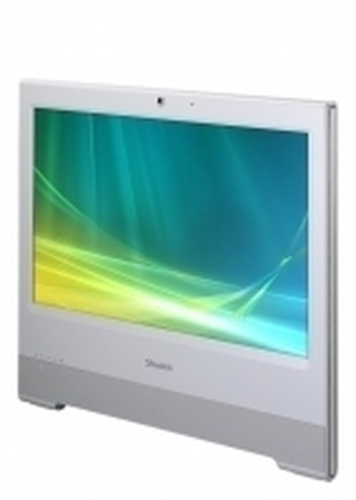

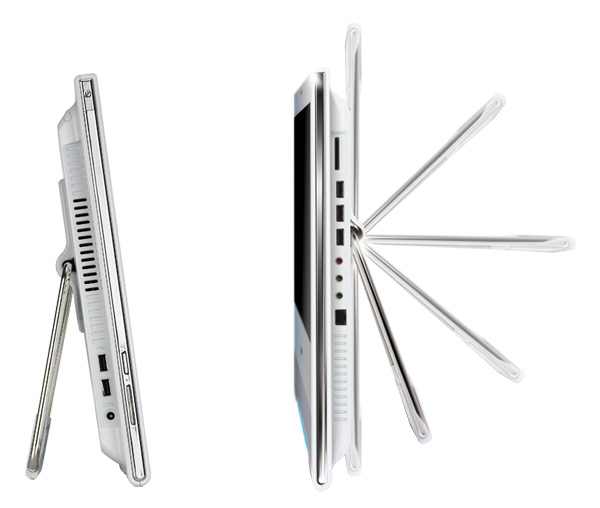

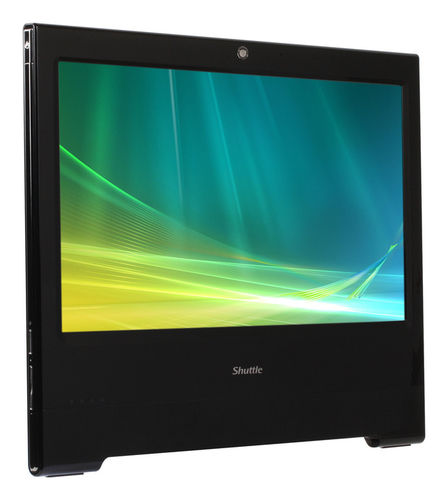

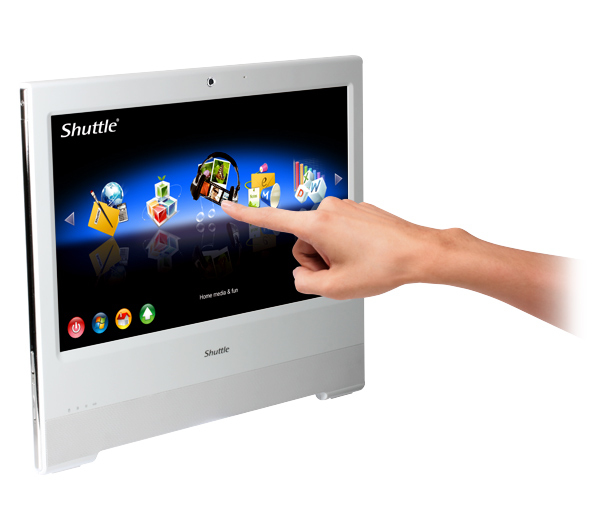

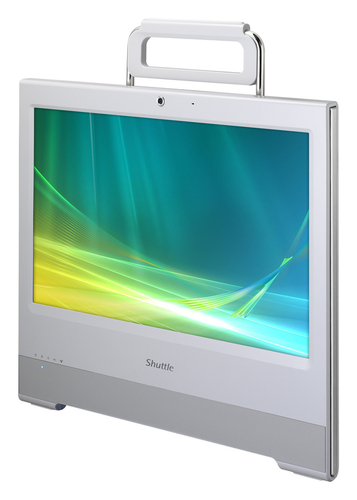

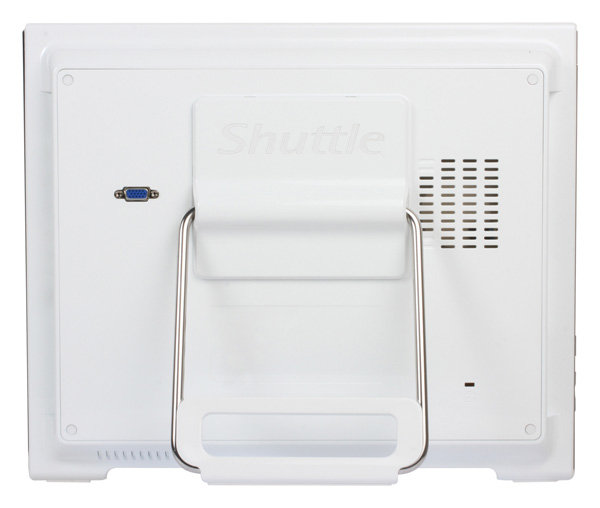

Shuttle X50XB PC Intel Atom® 330

2 GB DDR2-SDRAM 160 GB Intel® GMA 950

Model X50XB

98 specifications

Overview

Brand: Shuttle
Category: PCs/Workstations
Model: X50XB
Part number: X50XB
Also known as: Shuttle X50XB PC Intel Atom® 330 2 GB DDR2-SDRAM 160 GB Intel® GMA 950

98 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	330
Processor cores	2
Processor threads	4
Processor frequency	1.6 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	533 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Thermal Design Power (TDP)	8 W
Tcase	85.2 °C
Tjunction	100 °C
Processor socket	BGA 437
Number of Processing Die Transistors	94 M
Processing Die size	52 mm²
CPU multiplier (bus/core ratio)	12
Processor core voltage (AC)	1.25 - 1.40 V
Stepping	C0
ECC supported by processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM

Specification	Value
On-board graphics card	No
Discrete graphics card model	Intel® GMA 950
Maximum graphics card memory	0.224 GB

Specification	Value
Product type	PC
Audio output channels	5.1 channels

Specification	Value
Networking features	Gigabit Ethernet, WLAN

Specification	Value
Power requirements	100~240V AC, 1.5A, 50~60Hz
Power supply	65 W

Specification	Value
Operating system installed	No

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	35641
Processor code	SLG9Y
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	Realtek ALC 662
Built-in microphone	Yes

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 60%

Specification	Value
Certification	UL TÜV, CB, BSMI CE, FCC, BSMI, C-tick Energy Star 4.0
