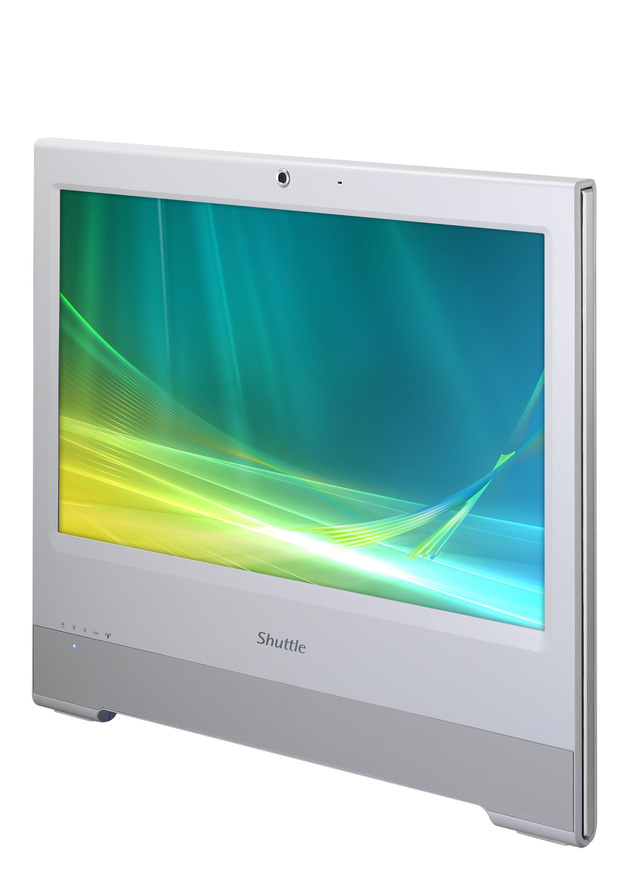

X 5000TB
Model X 5000TBPart no. X5000TB WHITE
102 specifications
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel Atom®
- Memory2 GB
- Storage160 GB
- GraphicsIntel® GMA 950
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 950
- Brand
- Shuttle
- Category
- PCs/Workstations
- Model
- X 5000TB
- Part numbers
- X5000TB WHITE, X5000TB BLACK, X5000TB-BLACK
- Also known as
- Shuttle X 5000TB Intel Atom® 330 2 GB DDR2-SDRAM 160 GB Intel® GMA 950 Windows 7 Home Premium PC White
Specifications
102 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | 330 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.6 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 8 W |
| Tcase | 85.2 °C |
| Tjunction | 100 °C |
| Processor socket | BGA 437 |
| Number of Processing Die Transistors | 94 M |
| Processing Die size | 52 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| Processor core voltage (AC) | 1.25 - 1.40 V |
| Stepping | C0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| HDD interface | SATA II |
| HDD speed | 5400 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 950 |
| Graphics card RAMDAC | 533 MHz |
| Maximum graphics card memory | 0.224 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8111C Gigabit Ethernet |
| Wireless technology | 802.11 b/g/n |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100~240V AC, 1.5A, 50~60Hz |
Design
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Display | LCD |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 35641 |
| Processor code | SLG9Y |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Audio Realtek ALC 662 |
| Built-in microphone | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 391.3 mm |
| Depth | 36 mm |
| Height | 327 mm |
| Weight | 3.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL TÜV, CB, BSMI CE, FCC, BSMI, C-tick |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | Yes |
