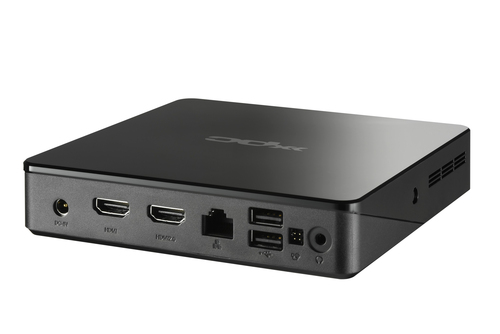

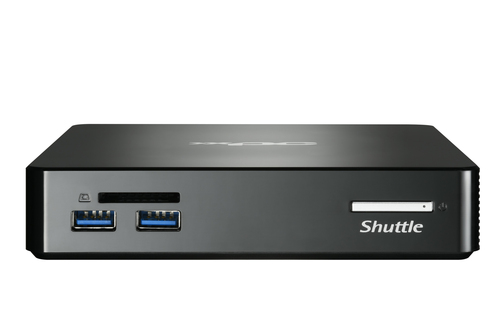

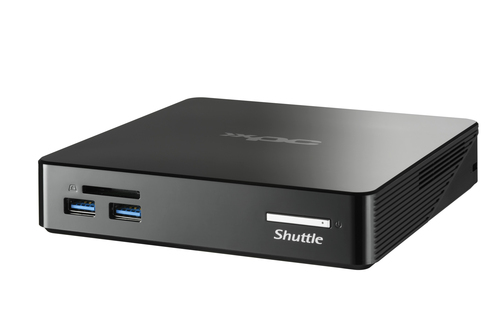

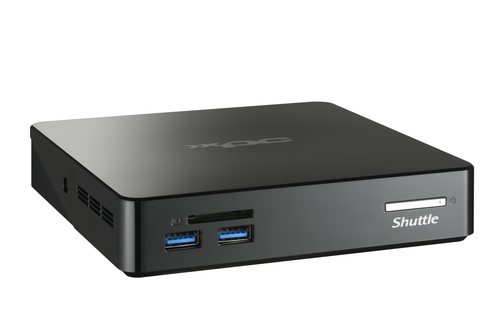

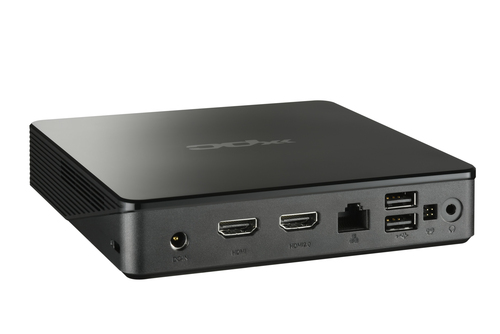

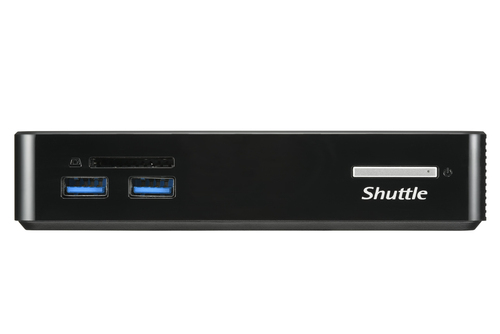

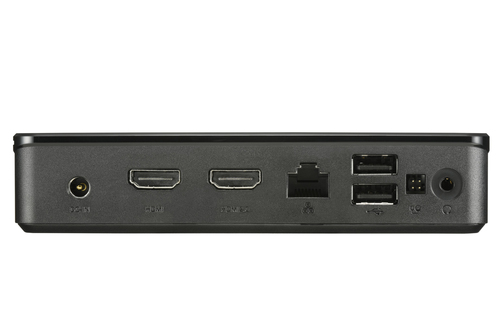

XPC Nano System NS03A, Android OS, Rockchip RK3568
2 GB RAM, 32GB eMMC, 2 xHDMI, 1x LAN, Wifi, fanless, 24/7 permanent operation
Model NS03AEAN 887993601687
71 specifications
- ProcessorRockchip
- Memory2 GB
- Storage32 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Rockchip
- Memory
- 2 GB
- Storage
- 32 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- Shuttle
- Category
- PCs/Workstations
- Model
- NS03A
- Part number
- NS03A
- EAN / UPC
- 887993601687
- Also known as
- Shuttle XPC Nano System NS03A, Android OS, Rockchip RK3568, 2 GB RAM, 32GB eMMC, 2 xHDMI, 1x LAN, Wifi, fanless, 24/7 permanent operation
Specifications
71 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Rockchip |
| Processor family | Rockchip |
| Processor model | RK3568 |
| Processor cores | 4 |
| Processor boost frequency | 2 GHz |
| Processor lithography | 22 nm |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Optical drive type | No |
| Storage media | eMMC |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | ARM |
| On-board graphics card family | ARM Mali |
| On-board graphics card model | ARM Mali-G52 2EE MC2 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Realtek RTL8211E |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4/2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 36 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 0.577 L |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cooling type | Passive |
| Housing material | Plastic |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android 11 |
| Compatible operating systems | Android 11, Debian 10 Linux |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Rockchip RK809-5 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 141 mm |
| Depth | 141 mm |
| Height | 29 mm |
| Weight | 270 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 810 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| VESA mount included | Yes |
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
