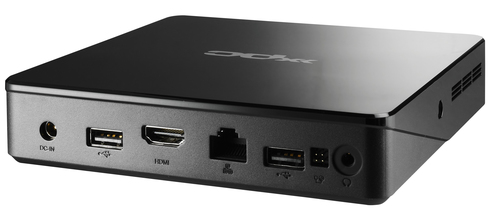

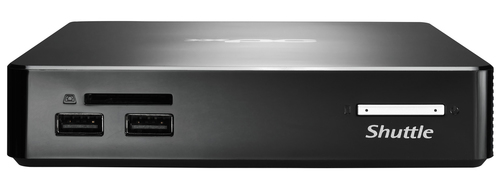

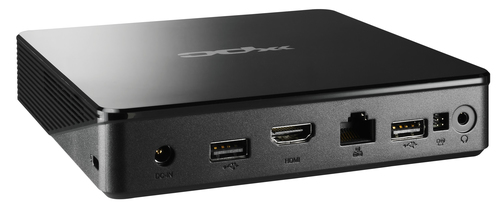

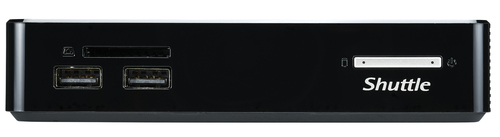

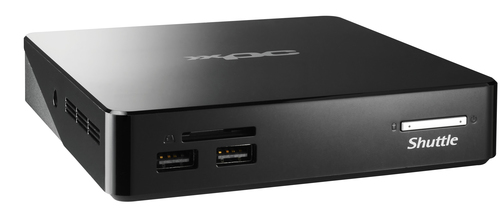

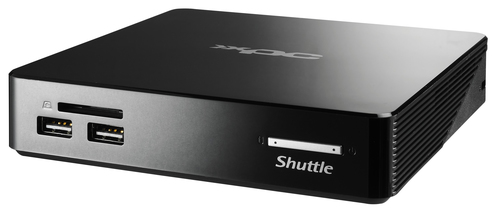

XPC nano NS02EV2 Rockchip RK3368
2 GB DDR3L-SDRAM 16 GB eMMC Android 8.1 Nettop Mini PC Black
Model NS02EV2Part no. PFB-NS02E041EAN 887993601540
66 specifications
- ProcessorRockchip
- Memory2 GB
- Storage16 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Rockchip
- Memory
- 2 GB
- Storage
- 16 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- Shuttle
- Category
- PCs/Workstations
- Model
- NS02EV2
- Part numbers
- PFB-NS02E041, NS02EV2
- EAN / UPC
- 887993601540, 887993601601
- Also known as
- Shuttle XPC nano NS02EV2 Rockchip RK3368 2 GB DDR3L-SDRAM 16 GB eMMC Android 8.1 Nettop Mini PC Black
Specifications
66 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Rockchip |
| Processor family | Rockchip |
| Processor model | RK3368 |
| Processor cores | 8 |
| Processor boost frequency | 1.5 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 16 GB |
| Optical drive type | No |
| Storage media | eMMC |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | PowerVR SGX6110 |
| Graphics card Open GL support | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Password protection | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Realtek RTL8211F-CG |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wake-on-LAN ready | Yes |

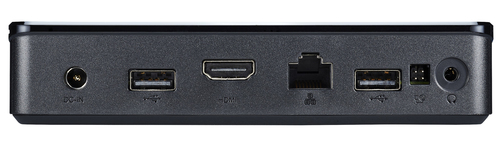

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 24 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Nettop |
| Volume | 0.577 L |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Housing material | Plastic |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android 8.1 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC5640-VB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 141 mm |
| Depth | 141 mm |
| Height | 29 mm |
| Weight | 270 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 650 g |
Packaging content
| Specification | Value |
|---|---|
| VESA mount included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, BSMI, RCM, VCCI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84715000 |
