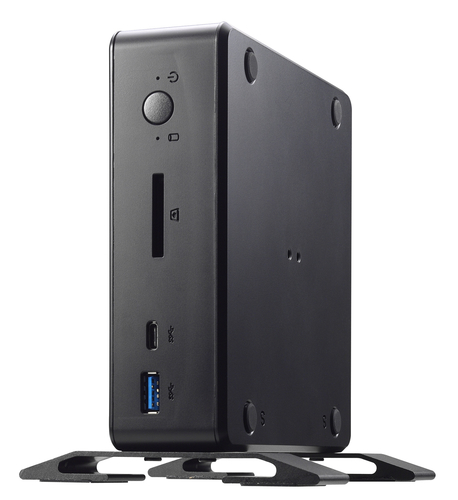

NC2000XA PC/workstation Intel® Celeron® 3855U
4 GB DDR3L-SDRAM 128 GB SSD Mini PC Black
Model NC2000XAEAN 4046047103133
150 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage128 GB
- GraphicsNot available
- SpeedWi-Fi 4 (802.11n)
- TypeMini PC
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 128 GB
- Graphics
- Not available
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Mini PC
- Brand
- Shuttle
- Category
- PCs/Workstations
- Model
- NC2000XA
- Part number
- NC2000XA
- EAN / UPC
- 4046047103133
- Also known as
- Shuttle NC2000XA PC/workstation Intel® Celeron® 3855U 4 GB DDR3L-SDRAM 128 GB SSD Mini PC Black
Specifications
150 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 3855U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| Bus type | OPI |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron Processor 3000 series for Mobile |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down | 10 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 10 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1356 |
| Stepping | D1 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 510 |
| Maximum on-board graphics card memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 900 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x1906 |
| On-board graphics card OpenGL version | 4.4 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel SoC |
| Password protection | Yes |
| BIOS type | UEFI AMI |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Microphone in | No |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| DC-in jack | Yes |
| Serial ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | No |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 92211 |
| Processor code | SR2EV |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC662 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 42 mm |
| Depth | 142 mm |
| Height | 142 mm |
| Weight | 400 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| VESA mount included | Yes |
| AC adapter included | Yes |
| Manual | Yes |
| Mounting feet | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE, BSMI, C-Tick, ETL, CB, BSMI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
