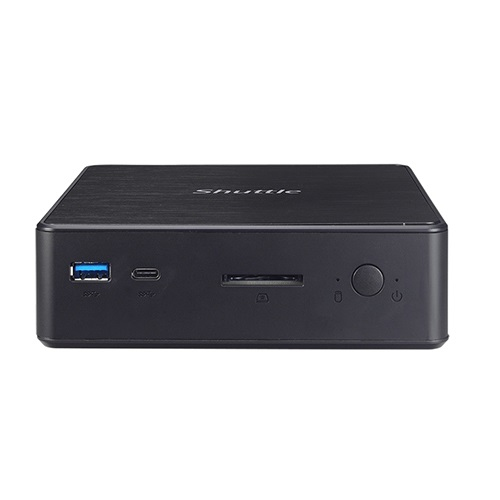

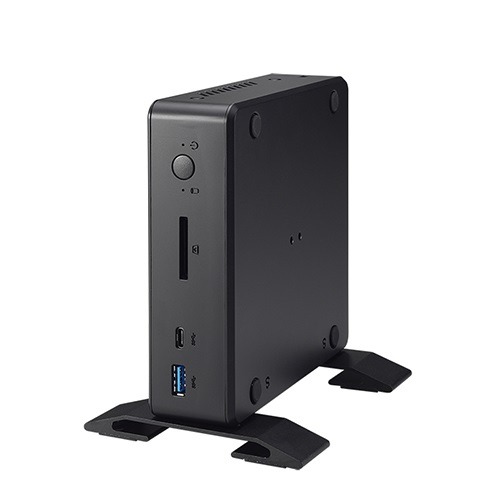

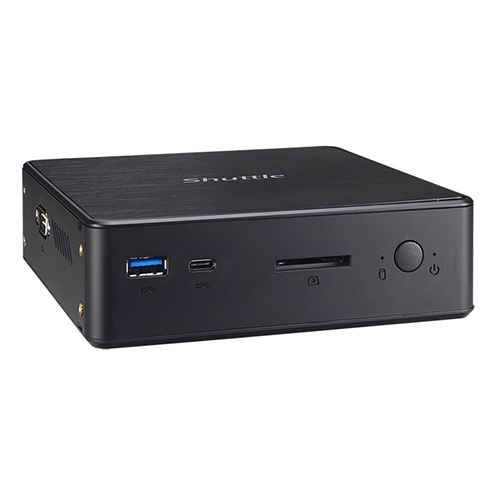

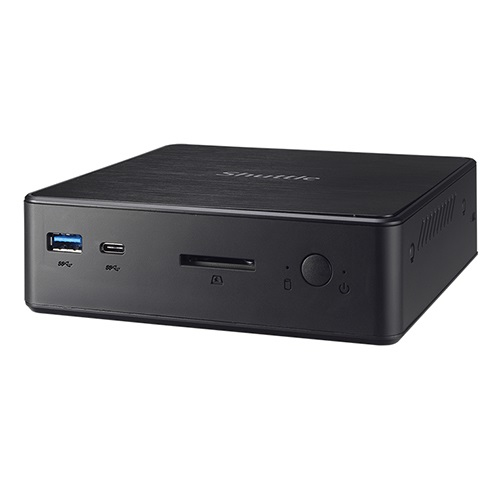

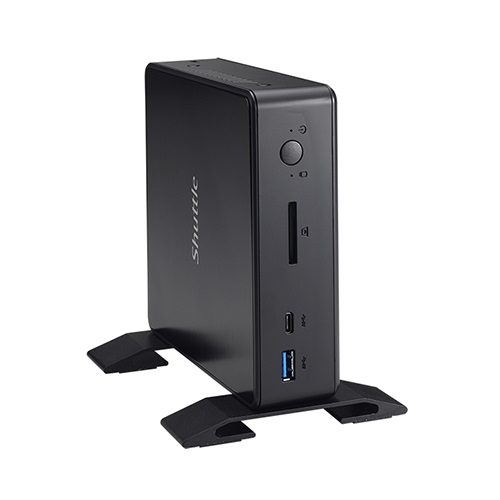

XPC nano NC02U Intel® Celeron® 3855U

4 GB DDR3L-SDRAM 32 GB SSD Windows 10 Pro Mini PC Black

Model NC02UPart no. NC02UWIN10PE-Q24475

142 specifications

Overview

Brand: Shuttle
Category: PCs/Workstations
Model: NC02U
Part numbers: NC02UWIN10PE-Q24475, NC0200U-Q25071, NC0200U-Q25291, NC0200U-Q26237, NC0200U-Q26279
Also known as: Shuttle XPC nano NC02U Intel® Celeron® 3855U 4 GB DDR3L-SDRAM 32 GB SSD Windows 10 Pro Mini PC Black

142 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	3855U
Processor cores	2
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Bus type	OPI
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor 3000 series for Mobile
Processor codename	Skylake
Thermal Design Power (TDP)	15 W
Configurable TDP-down	10 W
Tjunction	100 °C
Maximum number of PCI Express lanes	10
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	2.0
Processor socket	BGA 1356
Stepping	D1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	32 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	32 GB
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 510
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x1906
On-board graphics card OpenGL version	4.4

Specification	Value
Product type	Mini PC

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Number of USB ports with PowerShare support	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	1
VGA (D-Sub) ports quantity	0
DVI port	No
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	0
eSATA ports quantity	0
DC-in jack	Yes
Serial ports quantity	1
On/off button	Yes

Specification	Value
Power supply	65 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 10 Pro
Drivers included	Yes

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	92211
Processor code	SR2EV
Processor package size	42 x 24 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
