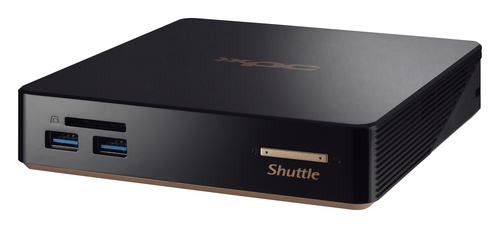

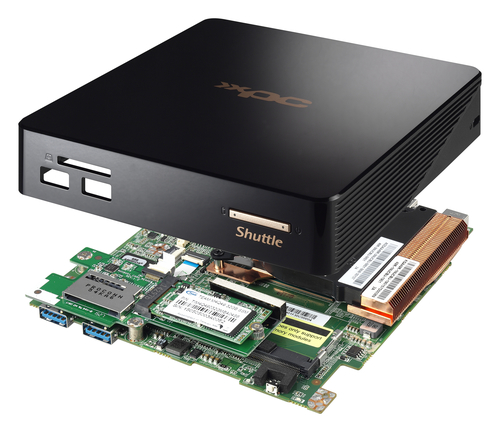

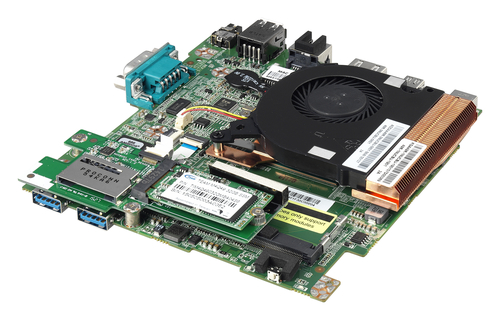

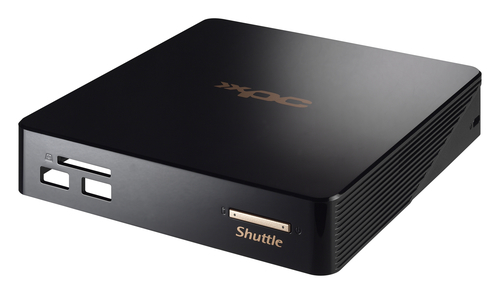

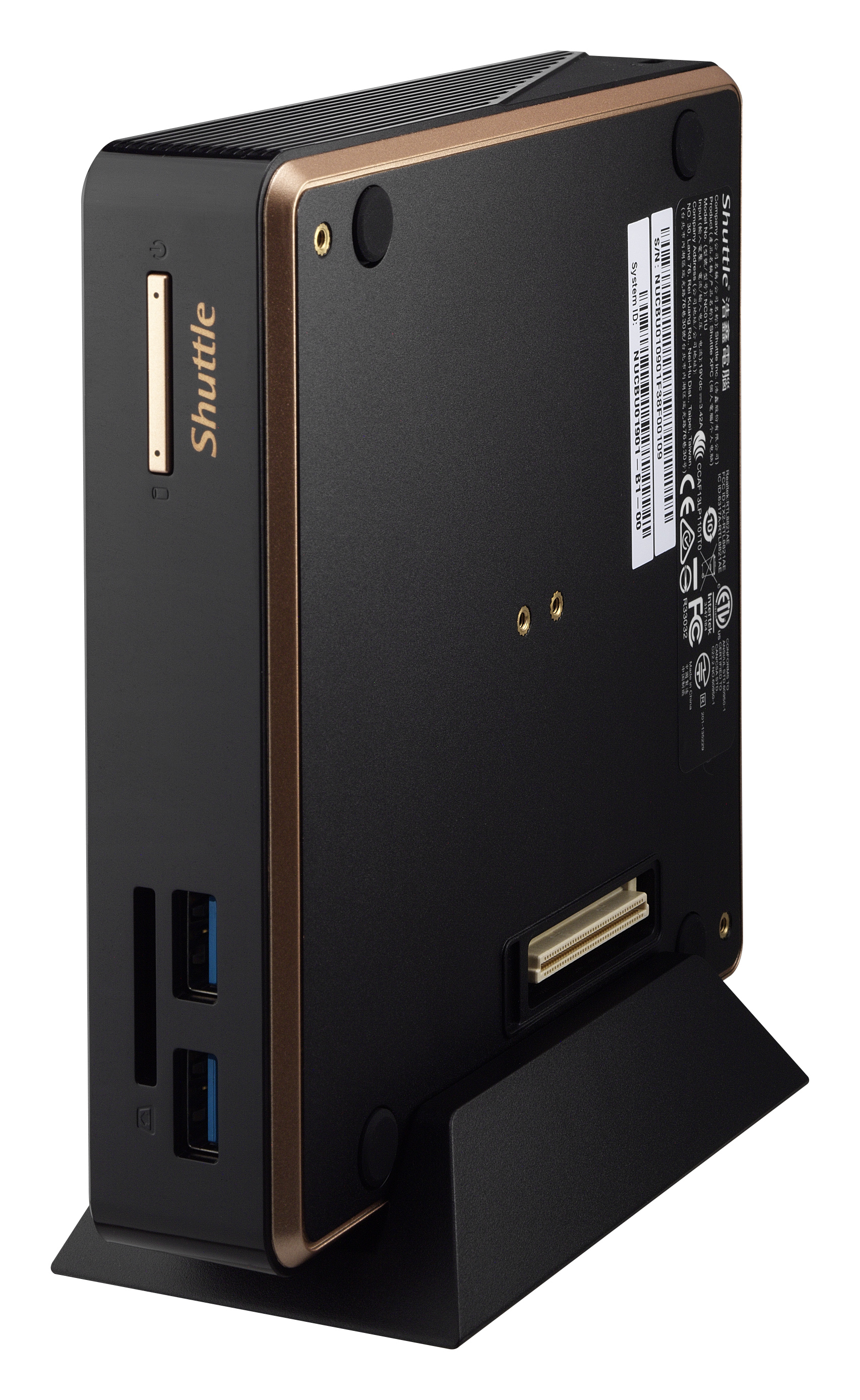

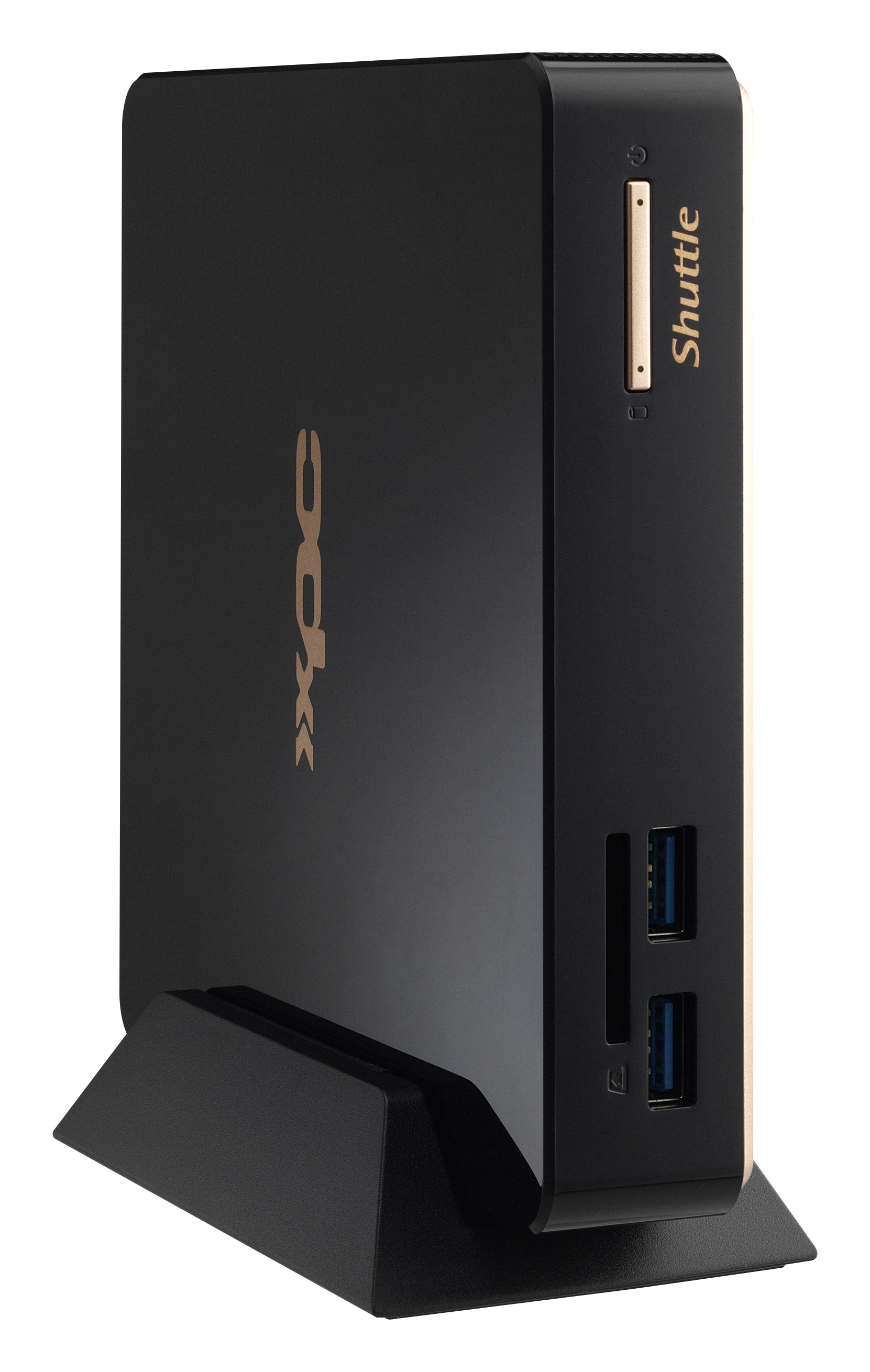

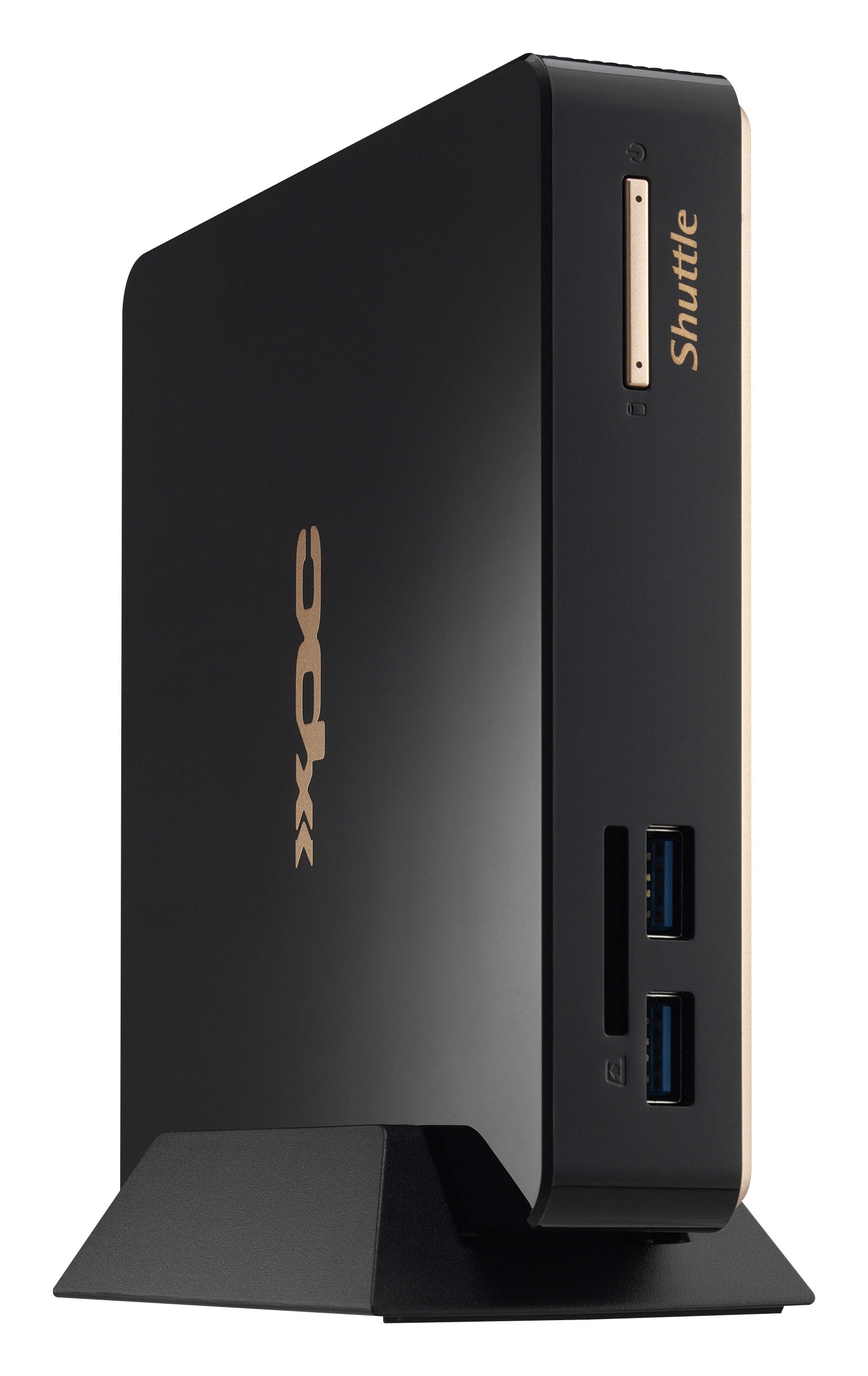

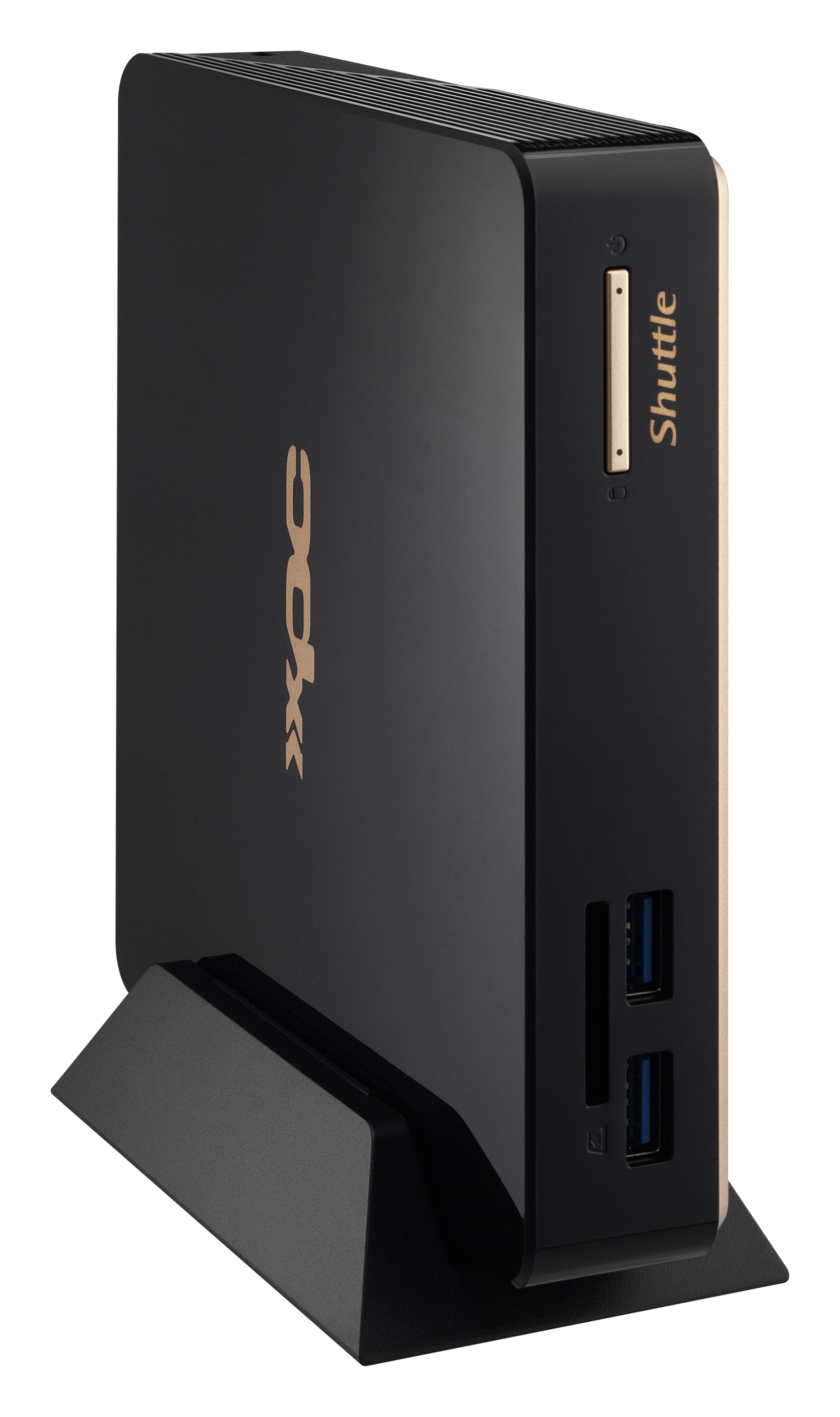

Shuttle NC01UBING PC/workstation Intel® Celeron® 3205U

2 GB DDR3L-SDRAM 32 GB SSD Windows 8.1 with Bing Mini PC Black

Model NC01UBINGEAN 887993600321

139 specifications

ProcessorIntel® Celeron®
Memory2 GB
Storage32 GB
GraphicsNot available
SpeedWi-Fi 5 (802.11ac)
TypeMini PC

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 2 GB
Storage: 32 GB
Graphics: Not available
Speed: Wi-Fi 5 (802.11ac)
Type: Mini PC

Brand: Shuttle
Category: PCs/Workstations
Model: NC01UBING
Part number: NC01UBING
EAN / UPC: 887993600321, 887993600338
Also known as: Shuttle NC01UBING PC/workstation Intel® Celeron® 3205U 2 GB DDR3L-SDRAM 32 GB SSD Windows 8.1 with Bing Mini PC Black

Specifications

139 specifications in 15 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	3205U
Processor cores	2
Processor threads	2
Processor frequency	1.5 GHz
Processor cache	2 MB
Processor cache type	L3
Bus type	DMI2
System bus rate	5 GT/s
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor 3000 series for Mobile
Processor codename	Broadwell
Thermal Design Power (TDP)	15 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.6 GHz
Tjunction	105 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	2x4, 4x1
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1168
Stepping	E0
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	16 GB
Internal memory type	DDR3L-SDRAM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	32 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	32 GB
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	100 MHz
On-board graphics card dynamic frequency (max)	800 MHz
On-board graphics card DirectX version	11.2/12

Performance

Specification	Value
Product type	Mini PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
HDMI version	1.4a
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
Mini DisplayPorts quantity	1
DC-in jack	Yes
Serial ports quantity	1

Power

Specification	Value
Power supply	65 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Mini PC
Volume	0.6 L
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 8.1 with Bing
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	84809
Processor code	SR215
Processor package size	40 x 24 x 1.3 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	141 mm
Depth	141 mm
Height	29 mm
Weight	360 g

Packaging content

Specification	Value
Keyboard included	No
AC adapter included	Yes
