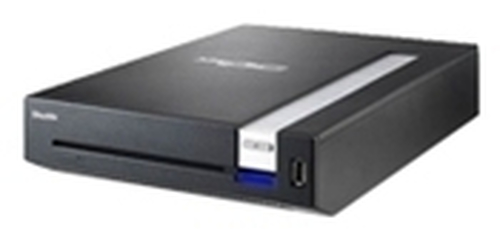

Shuttle mini X 100H
Model mini X 100HPart no. X100HA
46 specifications
- ProcessorIntel® Core™ Duo
- Memory0.5 GB
- Storage200 GB
- GraphicsAMD Mobility Radeon X1400
- TypePC
- OSWindows XP Home Edition
Overview
- Processor
- Intel® Core™ Duo
- Memory
- 0.5 GB
- Storage
- 200 GB
- Graphics
- AMD Mobility Radeon X1400
- Type
- PC
- OS
- Windows XP Home Edition
- Brand
- Shuttle
- Category
- PCs/Workstations
- Model
- mini X 100H
- Part number
- X100HA
- Also known as
- Shuttle mini X 100H Intel® Core™ Duo 0.5 GB DDR2-SDRAM 200 GB AMD Mobility Radeon X1400 Windows XP Home Edition PC Black
Specifications
46 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ Duo |
| Processor frequency | 1.6 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.5 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 533 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 200 GB |
| HDD interface | SATA II |
| HDD speed | 5400 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | AMD Mobility Radeon X1400 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
| TV-out | Yes |
| TV-out type | S-Video |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 V AC |
| Power supply | 120 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Home Edition |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 30 °C |
| Storage temperature (T-T) | 15 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 296 mm |
| Depth | 210 mm |
| Height | 55 mm |
| Weight | 3.41 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, UL, TÜV, CB, BSMI |
