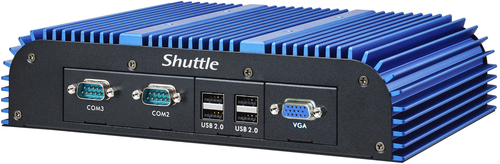

Industrial System BPCWL02-i5WA
Model Industrial System BPCWL02-i5WAPart no. KBK-BPCWL025WA1EAN 4046047103669
97 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage250 GB
- GraphicsNot available
- TypeMini PC
- OSWindows 10 IoT Enterprise
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 250 GB
- Graphics
- Not available
- Type
- Mini PC
- OS
- Windows 10 IoT Enterprise
- Brand
- Shuttle
- Category
- PCs/Workstations
- Model
- Industrial System BPCWL02-i5WA
- Part number
- KBK-BPCWL025WA1
- EAN / UPC
- 4046047103669
- Also known as
- Shuttle Box-PC Industrial System BPCWL02-i5WA Intel® Core™ i5 i5-8365UE 8 GB DDR4-SDRAM 250 GB SSD Windows 10 IoT Enterprise Mini PC Black, Blue
Specifications
97 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8365UE |
| Processor cores | 4 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 6 MB |
| Configurable TDP-up | 25 W |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-down | 12.5 W |
| Configurable TDP-down frequency | 1.1 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 250 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 250 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 620 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
| Motherboard chipset | Intel SoC |
| BIOS type | AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® I211, Intel® I219-LM |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |

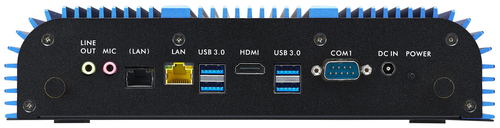

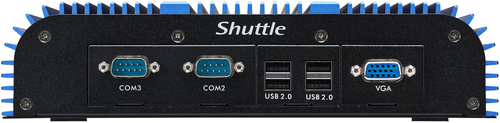

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Line-out | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DC-in jack | Yes |
| Serial ports quantity | 1 |
| COM ports quantity | 2 |
| On/off button | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 90 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Volume | 2.7 L |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Product colour | Black, Blue |
| Cooling type | Passive |
| Fanless | Yes |
| Housing material | Aluminium, Steel |
| Intel® vPro™ Platform Eligibility | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC662 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 169 mm |
| Height | 57 mm |
| Weight | 3 kg |
Certificates
| Specification | Value |
|---|---|
| Safety | CB, cTUVus, BSMI |
| Compliance certificates | CE, RoHS |
| Certification | CE, FCC A, VCCI, RCM, BSMI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84715000 |
