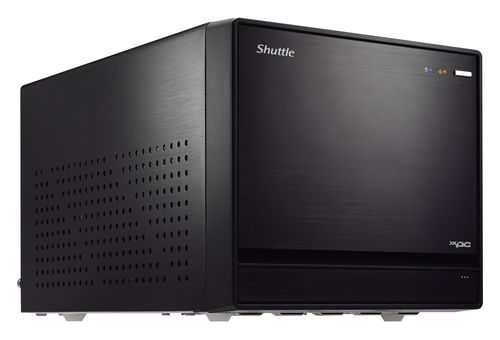

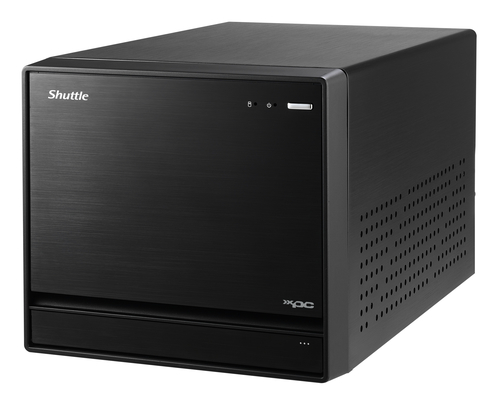

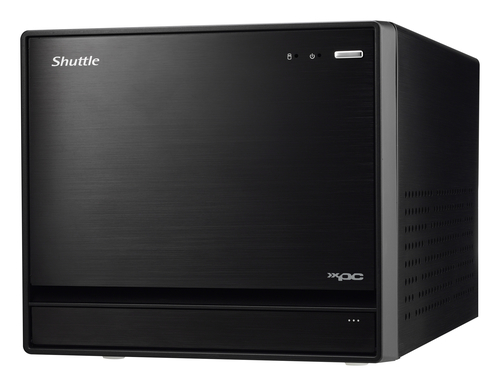

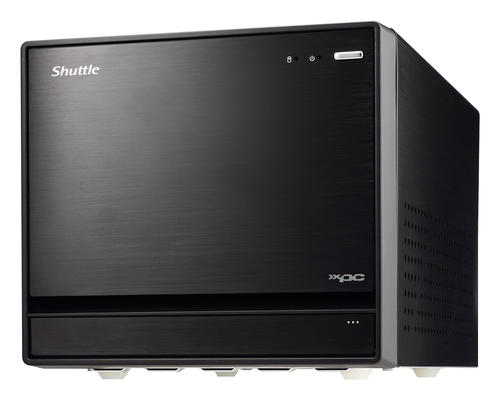

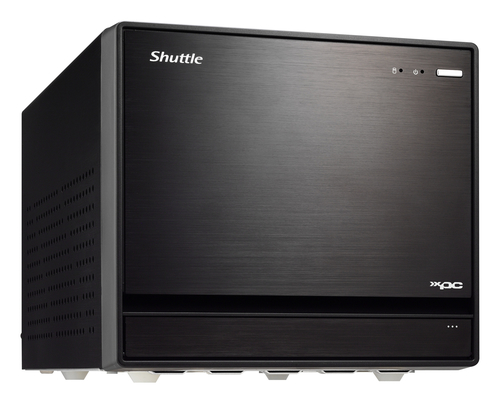

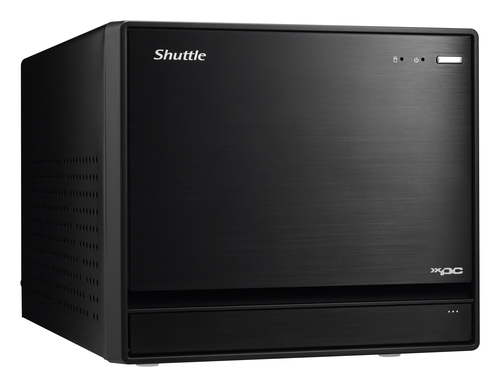

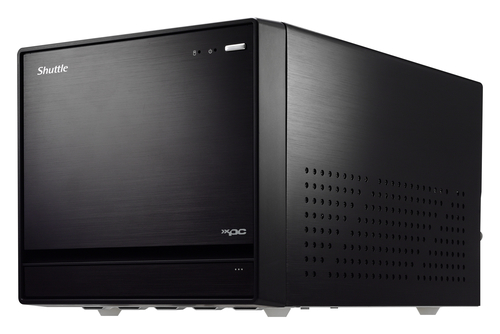

Shuttle Gaming Mini-PC R8 1710GA

Model Gaming Mini-PC R8 1710GAPart no. R8 1710GAEAN 4046047103041

166 specifications

ProcessorIntel® Core™ i7
Memory16 GB
Storage2.25 TB
GraphicsNVIDIA® GeForce® GTX 1080
TypePC
OSWindows 10 Home

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 2.25 TB
Graphics: NVIDIA® GeForce® GTX 1080
Type: PC
OS: Windows 10 Home

Brand: Shuttle
Category: PCs/Workstations
Model: Gaming Mini-PC R8 1710GA
Part number: R8 1710GA
EAN / UPC: 4046047103041
Also known as: Shuttle Gaming Mini-PC R8 1710GA Intel® Core™ i7 i7-6700 16 GB DDR4-SDRAM 2.25 TB HDD+SSD NVIDIA® GeForce® GTX 1080 Windows 10 Home Black

Specifications

166 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6700
Processor cores	4
Processor threads	8
Processor boost frequency	4 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI3
FSB Parity	No
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6700 Desktop series
Processor codename	Skylake
Thermal Design Power (TDP)	65 W
Tcase	71 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	2x8, 1x8+2x4, 1x16
PCI Express slots version	3.0
Processor socket	LGA 1151 (Socket H4)
Stepping	R0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory slots	4x DIMM
Memory clock speed	2133 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	2.25 TB
Optical drive type	No
Storage media	HDD+SSD
Number of storage drives installed	2
Number of HDDs installed	1
HDD capacity	2 TB
HDD interface	SATA III
HDD size	3.5"
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	M.2
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 1080
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR5
Number of discrete graphics cards	1
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1912
On-board graphics card OpenGL version	4.4
Graphics card Open GL support	Yes
CUDA	Yes
CUDA cores	2560
NVIDIA G-SYNC	Yes
NVIDIA GameWorks VR	Yes
Graphics card DVI-I ports quantity	1
Graphics card DisplayPorts quantity	1
Graphics card HDMI ports quantity	1

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Z170
Password protection	Yes
Audio output channels	7.1 channels

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

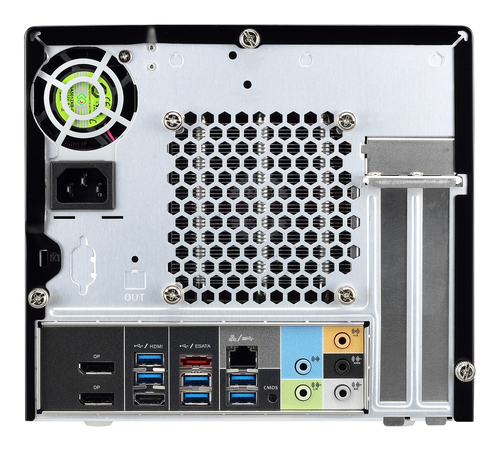

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
eSATA ports quantity	1

Power

Specification	Value
Power supply	500 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88196
Processor code	SR2BT
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, AVX 2.0, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	HD

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	216 mm
Depth	332 mm
Height	198 mm
Weight	3.5 kg

Packaging data

Specification	Value
Package weight	5 kg

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	FCC, CE, BSMI, C-Tick, ETL, CB, BSMI, ErP 2013 Lot 3

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
