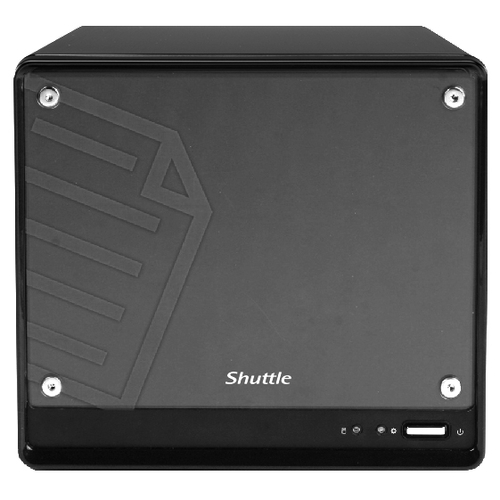

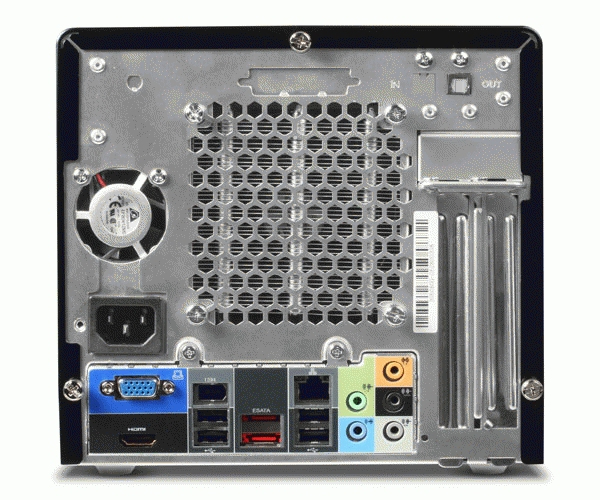

Shuttle G5 3300MA

Model G5 3300MA

97 specifications

Overview

Brand: Shuttle
Category: PCs/Workstations
Model: G5 3300MA
Part number: G5 3300MA
Also known as: Shuttle G5 3300MA PC Intel® Core™2 Duo E8400 2 GB DDR2-SDRAM 500 GB Intel® GMA 3100 Windows Vista Home Premium Mini Tower Black

97 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E8400
Processor cores	2
Processor threads	2
Processor frequency	3 GHz
Processor cache	6 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E8000 Series
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	72.4 °C
Number of processors installed	2
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	9
Stepping	E0
ECC supported by processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 3100
On-board graphics card model	Not available
Maximum graphics card memory	0.384 GB

Specification	Value
Product type	PC
Audio output channels	7.1 channels

Specification	Value
PCI Express x16 slots	1
PCI slots	1

Specification	Value
Power supply type	SilentX mini PSU, 100~240V
Power supply	250 W

Specification	Value
Chassis type	Mini Tower
Product colour	Black

Specification	Value
Operating system installed	Windows Vista Home Premium
Mac compatibility	No

Specification	Value
Display included	No

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	33910
Processor code	SLB9J
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Certification	EMI: FCC, CE, BSMI Safety: UL, TÜV, CB

Specification	Value
TV tuner type	Analogue & DVB-T

Specification	Value
TV tuner integrated	Yes
