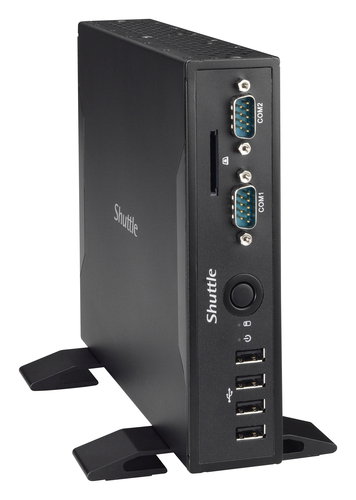

Shuttle XPC slim DS68U PC/workstation Intel® Celeron® 3855U

Shuttle XPC slim DS68U PC/workstation Intel® Celeron® 3855U

0 GB DDR3L-SDRAM Mini PC Black

Model DS68UEAN 655093409010

142 specifications
  • ProcessorIntel® Celeron®
  • Memory0 GB
  • Storage0 GB
  • GraphicsNot available
  • SpeedWi-Fi 4 (802.11n)
  • TypeMini PC
See all specifications

Overview

Processor
Intel® Celeron®
Memory
0 GB
Storage
0 GB
Graphics
Not available
Speed
Wi-Fi 4 (802.11n)
Type
Mini PC
Brand
Shuttle
Model
DS68U
Part number
DS68U
EAN / UPC
655093409010, 887993000800, 5057103191413
Also known as
Shuttle XPC slim DS68U PC/workstation Intel® Celeron® 3855U 0 GB DDR3L-SDRAM Mini PC Black

Specifications

142 specifications in 20 groups

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor model3855U
Processor cores2
Processor threads2
Processor frequency1.6 GHz
Processor cache2 MB
Processor cache typeSmart Cache
Bus typeOPI
Processor lithography14 nm
Processor operating modes64-bit
Processor seriesIntel Celeron Processor 3000 series for Mobile
Processor codenameSkylake
Thermal Design Power (TDP)15 W
Configurable TDP-down10 W
Tjunction100 °C
Maximum number of PCI Express lanes10
PCI Express configurations1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version2.0
Number of processors installed1
Processor socketBGA 1356
SteppingD1
Maximum internal memory supported by processor32 GB
Memory types supported by processorDDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor1600,1866,2133 MHz
Memory bandwidth supported by processor (max)34.1 GB/s
ECC supported by processorNo
Memory voltage supported by processor1.35 V

Memory

Internal memory0 GB
Maximum internal memory32 GB
Internal memory typeDDR3L-SDRAM
Memory slots2x SO-DIMM
Memory clock speed1600 MHz
Memory channelsDual-channel

Storage

Total storage capacity0 GB
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardYes
Discrete graphics card modelNot available
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 510
Maximum on-board graphics card memory32 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency300 MHz
On-board graphics card dynamic frequency (max)900 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x1906
On-board graphics card OpenGL version4.4

Performance

Product typeMini PC
Audio output channels2.0 channels

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiYes
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standardsWi-Fi 4 (802.11n)

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt 3 ports quantity0
HDMI ports quantity1
HDMI version1.4
Ethernet LAN (RJ-45) ports2
Headphone outputs1
Microphone inYes
VGA (D-Sub) ports quantity1
DVI portNo
DC-in jackYes
RS‐232/422 portYes
Number of SATA III connectors1

Power

Power supply65 W
Power supply input voltage100 - 240 V
Power supply input frequency50 - 60 Hz
Power consumption (standby)10 W
Power consumption (typical)25.5 W

Design

Chassis typeMini PC
Volume1.3 L
Panel mounting interface75 x 100 mm
Placement supportedVertical
VESA mountingYes
Number of 2.5" bays1
Cable lock slotYes
Cable lock slot typeKensington
Product colourBlack
Housing materialSteel

Software

Operating system installedNo

Display

Display includedNo

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography14 nm
Idle StatesYes
Intel 64Yes
Intel Enhanced Halt StateYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Small Business Advantage (SBA) version0.00
Intel Smart Response Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® OS GuardNo
Intel® Secure KeyYes
Intel® Small Business Advantage (Intel® SBA)No
Intel® Wireless Display (Intel® WiDi)Yes
Processor ARK ID92211
Processor codeSR2EV
Processor package size42 X 24 mm
Supported instruction setsSSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost TechnologyNo
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Quick Sync Video TechnologyYes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Conflict-Free processorYes

Audio

Audio chipRealtek ALC662

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width165 mm
Depth200 mm
Height39.5 mm
Weight1.43 kg

Packaging data

Package weight2.13 kg

Packaging content

VESA mount includedYes

Certificates

Compliance certificatesRoHS
CertificationFCC, CE, BSMI, C-Tick, ETL, CB, BSMI, ErP

Sustainability

Sustainability certificatesENERGY STAR

Logistics data

Harmonized System (HS) code84715000
