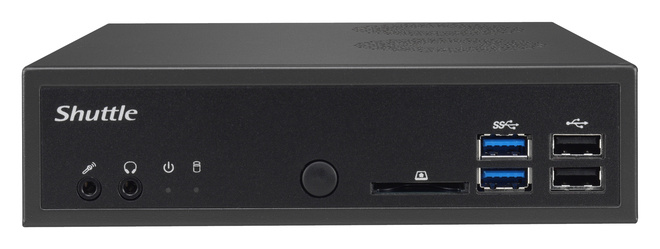

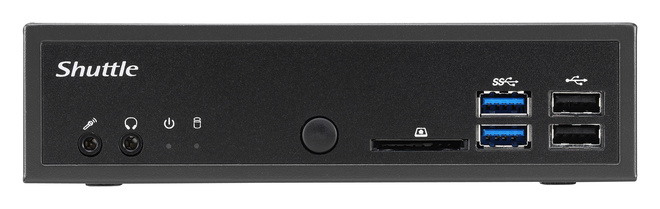

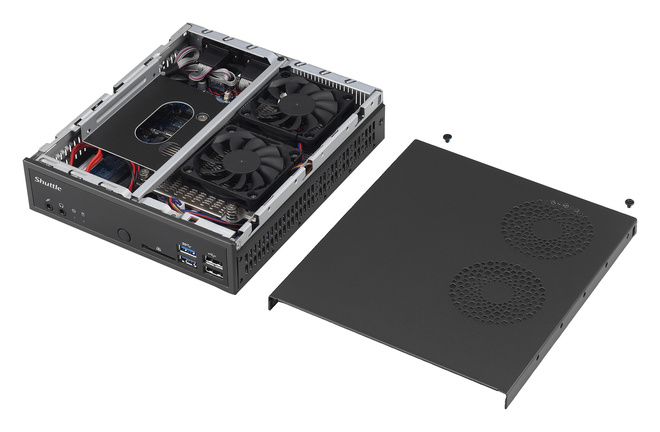

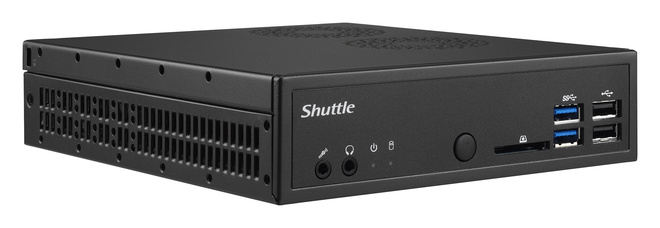

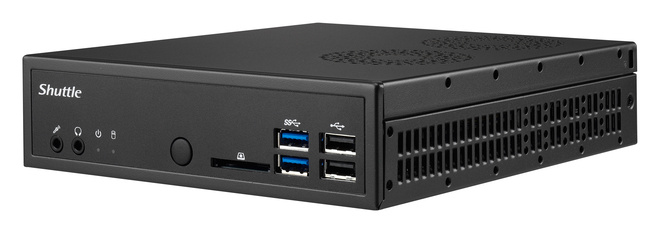

XPC slim DH170 Intel® Core™ i3 i3-6100T

16 GB DDR3L-SDRAM 120 GB SSD Windows 10 Pro Mini PC Black

Model DH170Part no. DH1700-Q25236

151 specifications

ProcessorIntel® Core™ i3
Memory16 GB
Storage120 GB
GraphicsNot available
TypeMini PC
OSWindows 10 Pro

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 16 GB
Storage: 120 GB
Graphics: Not available
Type: Mini PC
OS: Windows 10 Pro

Brand: Shuttle
Category: PCs/Workstations
Model: DH170
Part numbers: DH1700-Q25236, DH1700-Q24424, DH1700-Q24551HD, DH1700-Q24551SSD, DH170 INTEL I5-6500, DH1700-I3-Q25198 +2 more
Also known as: Shuttle XPC slim DH170 Intel® Core™ i3 i3-6100T 16 GB DDR3L-SDRAM 120 GB SSD Windows 10 Pro Mini PC Black

Specifications

151 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	6th gen Intel® Core™ i3
Processor model	i3-6100T
Processor cores	2
Processor threads	4
Processor frequency	3.2 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-6100 Desktop series
Processor codename	Skylake
Thermal Design Power (TDP)	35 W
Tcase	66 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	2x8, 1x8+2x4, 1x16
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	S0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	Yes
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	16 GB
Maximum internal memory	32 GB
Internal memory type	DDR3L-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	120 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	120 GB
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	950 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1912
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® H170
Audio output channels	5.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)

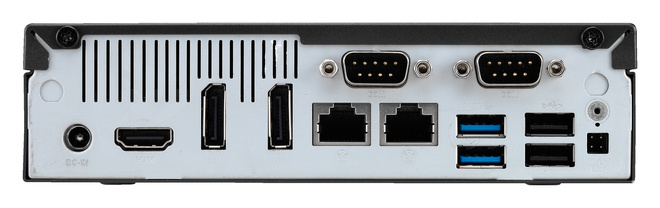

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Number of USB ports with PowerShare support	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Yes
DVI port	No
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	0
eSATA ports quantity	0
Serial ports quantity	2
On/off button	Yes

Power

Specification	Value
Power supply	90 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Mini PC
Volume	1.35 L
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Fanless	No

Software

Specification	Value
Operating system installed	Windows 10 Pro
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Optane™ Memory Ready	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	90734
Processor code	SR2HE
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, AVX 2.0, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015A
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
