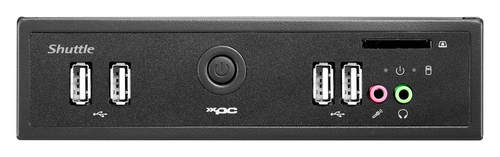

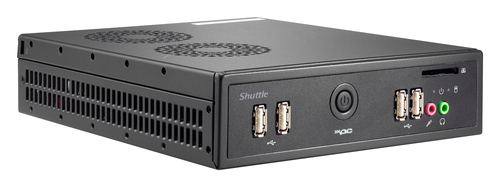

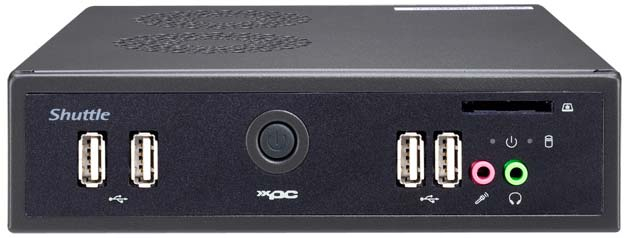

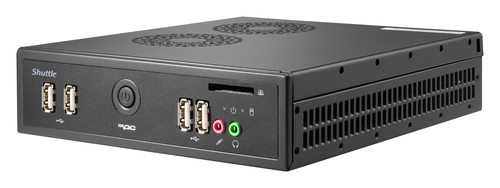

D 6100BA
Model D 6100BAEAN 4046047102570
129 specifications
- ProcessorIntel® Core™ i3
- Memory4 GB
- Storage60 GB
- GraphicsNot available
- SpeedWi-Fi 4 (802.11n)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Storage
- 60 GB
- Graphics
- Not available
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Mini PC
- Brand
- Shuttle
- Category
- PCs/Workstations
- Model
- D 6100BA
- Part number
- D 6100BA
- EAN / UPC
- 4046047102570
- Also known as
- Shuttle D 6100BA PC/workstation Intel® Core™ i3 i3-3220 4 GB DDR3-SDRAM 60 GB SSD Windows 7 Professional Small Desktop Mini PC Black
Specifications
129 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 3rd gen Intel® Core™ i3 |
| Processor model | i3-3220 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 3.3 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i3-3200 Desktop Series |
| Processor codename | Ivy Bridge |
| Thermal Design Power (TDP) | 55 W |
| Tcase | 65.3 °C |
| PCI Express configurations | 1x16, 2x8 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1155 (Socket H2) |
| CPU multiplier (bus/core ratio) | 33 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 60 GB |
| Optical drive type | No |
| Storage media | SSD |
| HDD size | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 60 GB |
| SSD interface | SATA |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 2500 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| On-board graphics card ID | 0x152 |
| Maximum graphics card memory | 1.692 GB |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel® H61 Express |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |

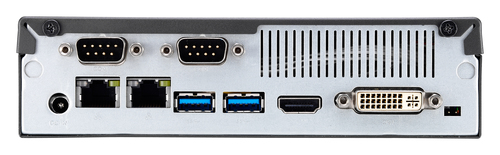

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 0 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 90 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Small Desktop |
| Placement supported | Horizontal |
| Product colour | Black |
| Cooling type | Active |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Secure Key | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 65693 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2011C |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Conflict-Free processor | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI, C-Tick, CB, BSMI, ETL |
