DM500S3A Intel® Core™ i5 i5-3470
4 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® GT 630 Windows 8 Tower PC Grey
Model DM500S3APart no. DM500S3A-A51S
131 specifications
- ProcessorIntel® Core™ i5
- Memory4 GB
- Storage1 TB
- GraphicsNVIDIA® GeForce® GT 630
- SpeedWi-Fi 4 (802.11n)
- TypePC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 4 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® GeForce® GT 630
- Speed
- Wi-Fi 4 (802.11n)
- Type
- PC
- Brand
- Samsung
- Category
- PCs/Workstations
- Model
- DM500S3A
- Part numbers
- DM500S3A-A51S, DM500S3A-A71S
- Also known as
- Samsung DM500S3A Intel® Core™ i5 i5-3470 4 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® GT 630 Windows 8 Tower PC Grey
Specifications
131 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 3rd gen Intel® Core™ i5 |
| Processor model | i5-3470 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-3400 Desktop series |
| Processor codename | Ivy Bridge |
| Thermal Design Power (TDP) | 77 W |
| Tcase | 67.4 °C |
| PCI Express configurations | 1x16, 2x8 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1155 (Socket H2) |
| CPU multiplier (bus/core ratio) | 32 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3 1333/1600 |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD Super Multi |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | CF, Memory Stick (MS), MicroDrive, MicroSD (TransFlash), microSDHC, microSDXC, MS Duo, MS PRO, MS PRO Duo, MS Pro-HG, MSXC, SD, SDHC, SDXC, xD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GT 630 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR3 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 2500 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card ID | 0x152 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® H77 Express |
| Password protection type | BIOS |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |

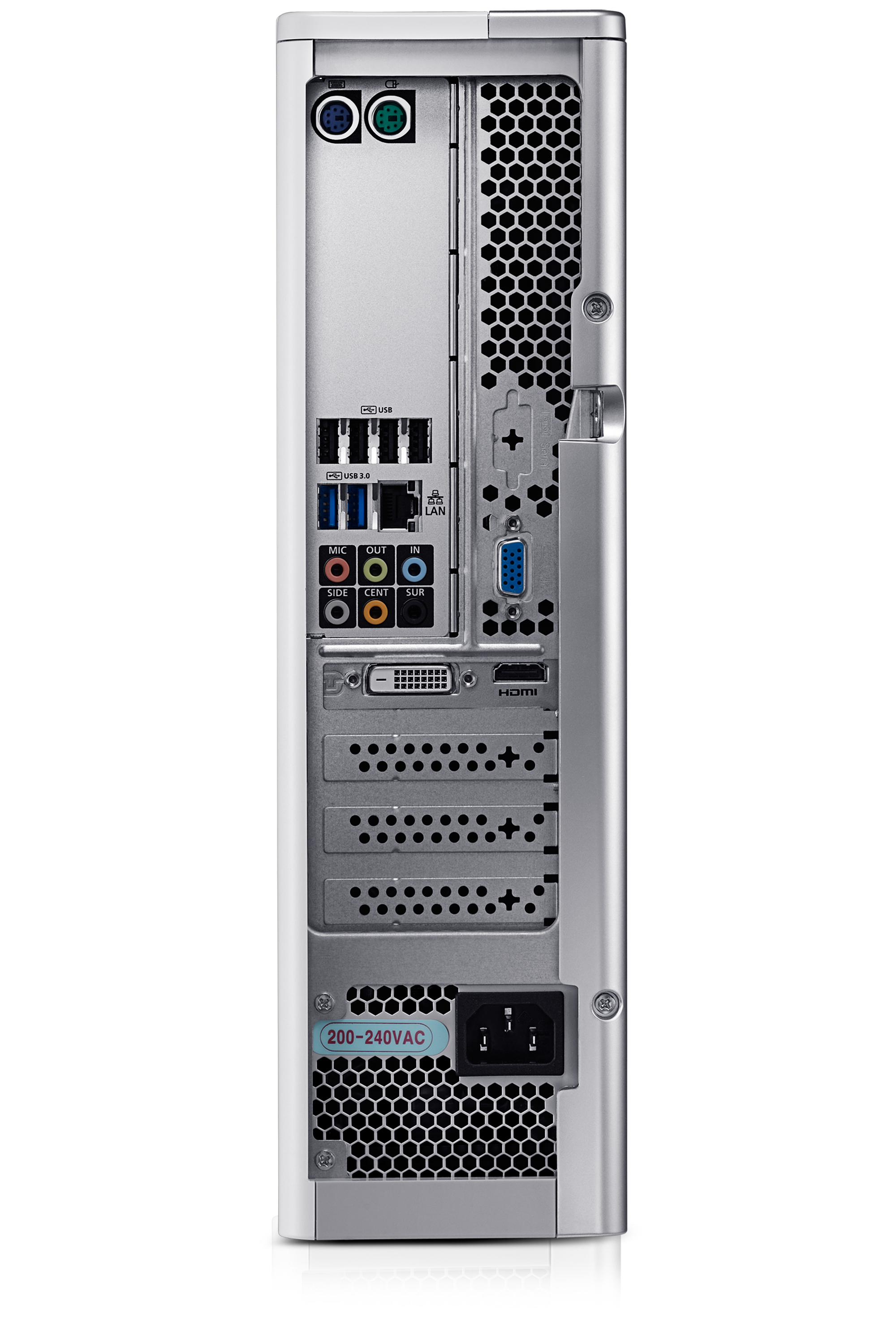

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| Modem (RJ-11) ports | 0 |
| DVI-D ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 270 W |
| Power supply input voltage | 220 V |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Grey |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8 |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 68316 |
| Processor package size | 37.5 mm |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2011D |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Conflict-Free processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 98 mm |
| Depth | 436 mm |
| Height | 344 mm |
| Weight | 7.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Other features
| Specification | Value |
|---|---|
| HDD user password | Yes |
