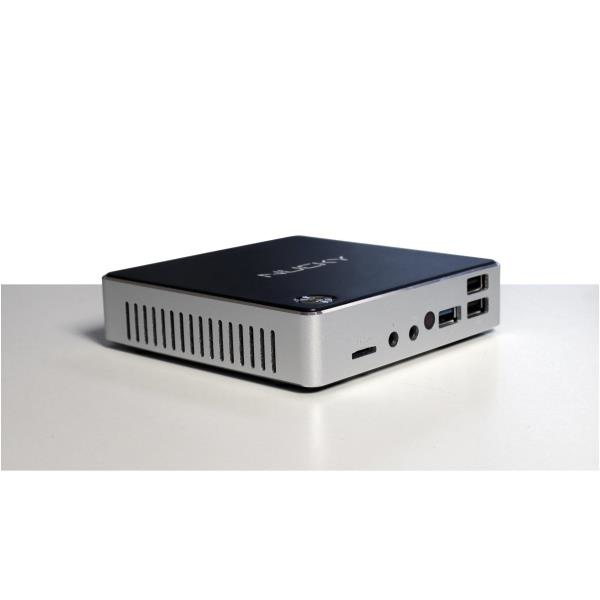

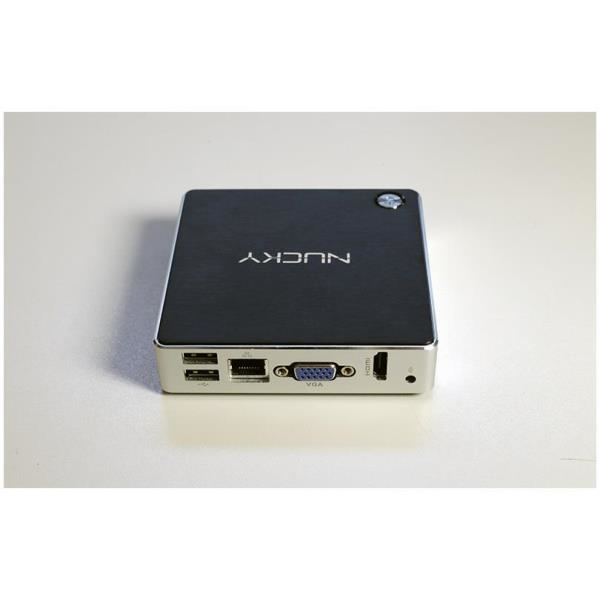

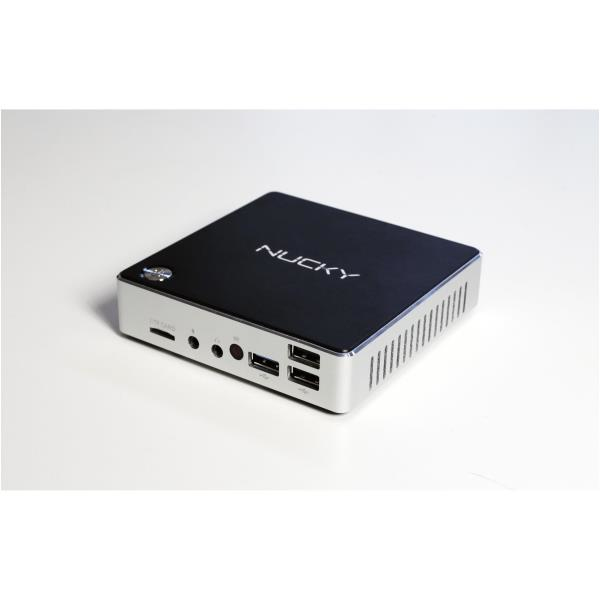

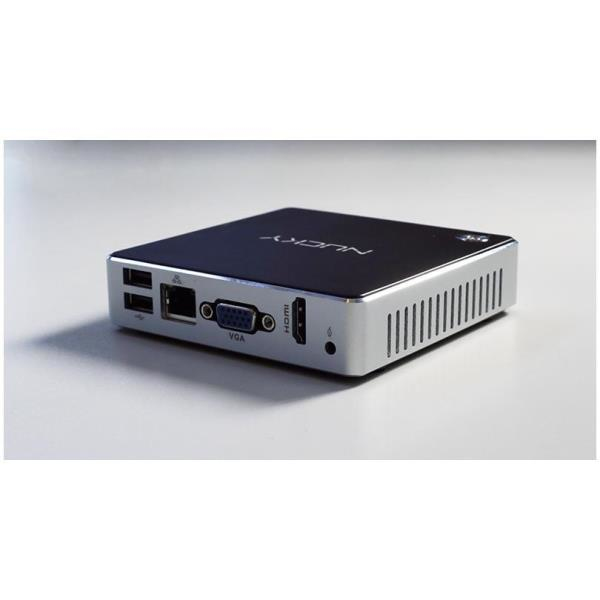

Nilox USFFQCNX2GB64B PC/workstation Intel Atom® x5-Z8300

2 GB DDR3-SDRAM 64 GB SSD Windows 10 Home USFF Mini PC Grey

Model USFFQCNX2GB64BEAN 8056457644214

93 specifications

Overview

Brand: Nilox
Category: PCs/Workstations
Model: USFFQCNX2GB64B
Part number: USFFQCNX2GB64B
EAN / UPC: 8056457644214
Also known as: Nilox USFFQCNX2GB64B PC/workstation Intel Atom® x5-Z8300 2 GB DDR3-SDRAM 64 GB SSD Windows 10 Home USFF Mini PC Grey

93 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	x5-Z8300
Processor cores	4
Processor threads	4
Processor boost frequency	1.84 GHz
Processor frequency	1.44 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Atom x5 Series
Processor codename	Cherry Trail
Scenario Design Power (SDP)	2 W
Tjunction	90 °C
Maximum number of PCI Express lanes	1
PCI Express configurations	1x1
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 592
Stepping	C0
Maximum internal memory supported by processor	2 GB
Memory types supported by processor	DDR3L-RS-SDRAM
Memory clock speeds supported by processor	1600 MHz
Memory bandwidth supported by processor (max)	12.8 GB/s

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	2 GB
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	500 MHz
On-board graphics card dynamic frequency (max)	500 MHz
Number of execution units	12

Specification	Value
Product type	Mini PC

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No

Specification	Value
Power supply	12.5 W

Specification	Value
Operating system installed	Windows 10 Home

Specification	Value
Display included	No

Specification	Value
Embedded options available	No
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	87383
Processor code	SR29Z
Processor package size	17 x 17 mm
Intel® Turbo Boost Technology	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
