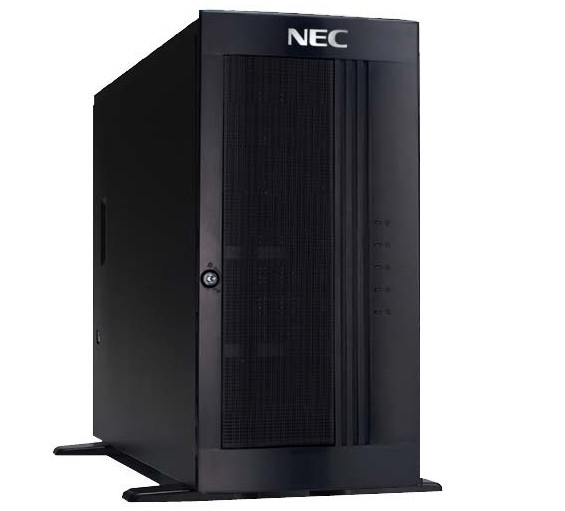

WA2500 WS i-Select
Model WA2500 WS i-SelectPart no. W09N7TY-0003E-05
39 specifications
- Memory1 GB
- Storage160 GB
- TypeWorkstation
- OSWindows XP Professional
- Processor frequency2 GHz
- Optical drive typeDVD-ROM
Overview
- Memory
- 1 GB
- Storage
- 160 GB
- Type
- Workstation
- OS
- Windows XP Professional
- Processor frequency
- 2 GHz
- Optical drive type
- DVD-ROM
- Brand
- NEC
- Category
- PCs/Workstations
- Model
- WA2500 WS i-Select
- Part numbers
- W09N7TY-0003E-05, W09N7TY-0003E-90
- Also known as
- NEC WA2500 WS i-Select 1 GB DDR-SDRAM Windows XP Professional Mini Tower Workstation
Specifications
39 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 12 GB |
| Internal memory type | DDR-SDRAM |
| Memory layout (slots x size) | 2 x 0.5 GB |
| Memory slots | 6x DIMM |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD-ROM |
| HDD capacity | 160 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Storage drive controller | 2x PATA133, 4x SATA-2 + RAID (0,1, 0+1) |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 0.128 GB |
| Graphics card | Quadro FX 540 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express X16 1x PCI Express X1 2x PCI 32-bit/33MHz |
Power
| Specification | Value |
|---|---|
| Power supply | 550 W |
| Power supply input voltage | 110/220 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
Display
| Specification | Value |
|---|---|
| Display included | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 425 mm |
| Depth | 198 mm |
| Height | 465 mm |
Keyboard
| Specification | Value |
|---|---|
| Keyboard type | QWERTY |
Other features
| Specification | Value |
|---|---|
| Security features | 2 Level Password |
