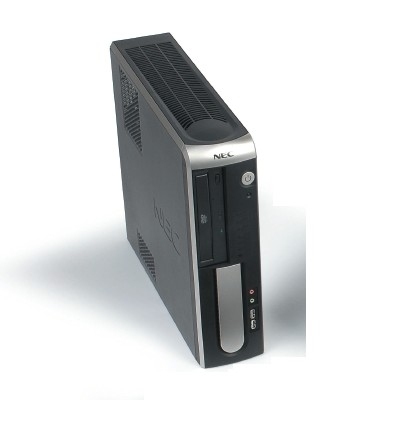

PowerMate VL260 SFF - Intel Pentium 4 641, 512MB, 80GB, Win XP Pro
Model PowerMate VL260 SFF - Intel Pentium 4 641, 512MB, 80GB, Win XP ProPart no. PC9N2EN-0007Z90
101 specifications
- ProcessorIntel Pentium 4 HT
- Memory0.5 GB
- Storage80 GB
- GraphicsIntel® GMA 950
- TypePC
- OSWindows XP Professional
Overview
- Processor
- Intel Pentium 4 HT
- Memory
- 0.5 GB
- Storage
- 80 GB
- Graphics
- Intel® GMA 950
- Type
- PC
- OS
- Windows XP Professional
- Brand
- NEC
- Category
- PCs/Workstations
- Model
- PowerMate VL260 SFF - Intel Pentium 4 641, 512MB, 80GB, Win XP Pro
- Part numbers
- PC9N2EN-0007Z90, PC9NBJB-0007Z90, PC9NTP0-0006Z02
- Also known as
- NEC PowerMate VL260 SFF - Intel Pentium 4 641, 512MB, 80GB, Win XP Pro Intel Pentium 4 HT 0.5 GB DDR2-SDRAM Intel® GMA 950 Windows XP Professional PC
Specifications
101 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium 4 HT |
| Processor model | 641 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 3.2 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium 4 600 Series supporting Hyper-Threading Technology |
| Processor codename | Cedarmill |
| Thermal Design Power (TDP) | 80, 86 |
| Scenario Design Power (SDP) | 0 W |
| Tcase | 69.2 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 188 M |
| Processing Die size | 81 mm² |
| CPU multiplier (bus/core ratio) | 16 |
| Stepping | C1 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.5 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 80 GB |
| Optical drive type | DVD-RW |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 950 |
| Maximum graphics card memory | 0.224 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Password protection type | BIOS |
Network
| Specification | Value |
|---|---|
| Wake-on-LAN ready | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express 1X 2x PCI |
Power
| Specification | Value |
|---|---|
| Power supply | 250 W |
| Power supply input voltage | 220 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| External drive bays | 1x 5.25" / 1x 3.5" |
| Internal drive bays | 1x 3.5" |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Processor ARK ID | 27481 |
| Processor code | SL96K |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | AC'97 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 407 mm |
| Depth | 100 mm |
| Height | 348 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | WLP 2.0, CE Mark, EN 55022 B, EN 50082-1, EN 60950 |
Other features
| Specification | Value |
|---|---|
| Security features | NEC Instant Recovery Anti-theft ring |
