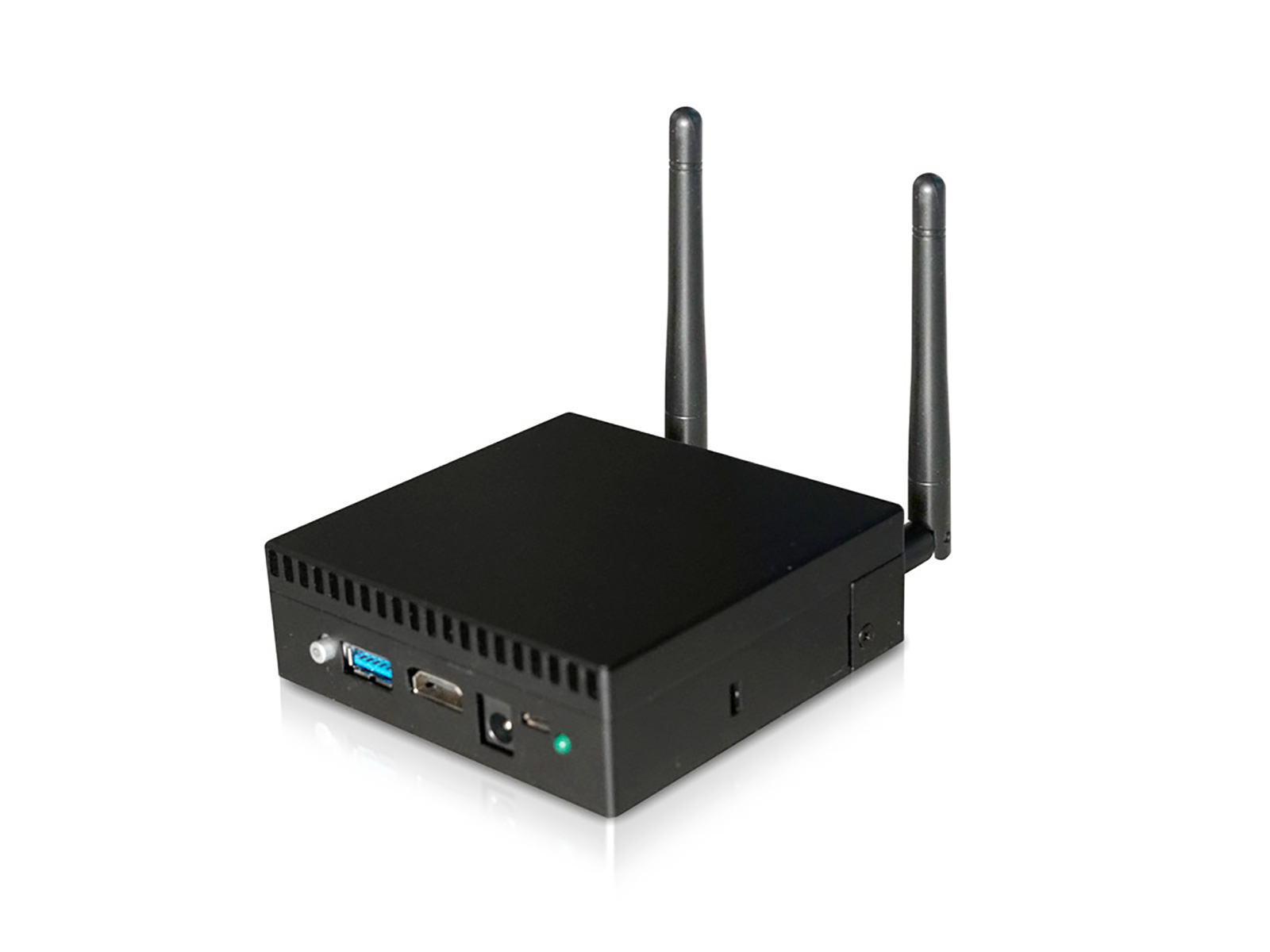

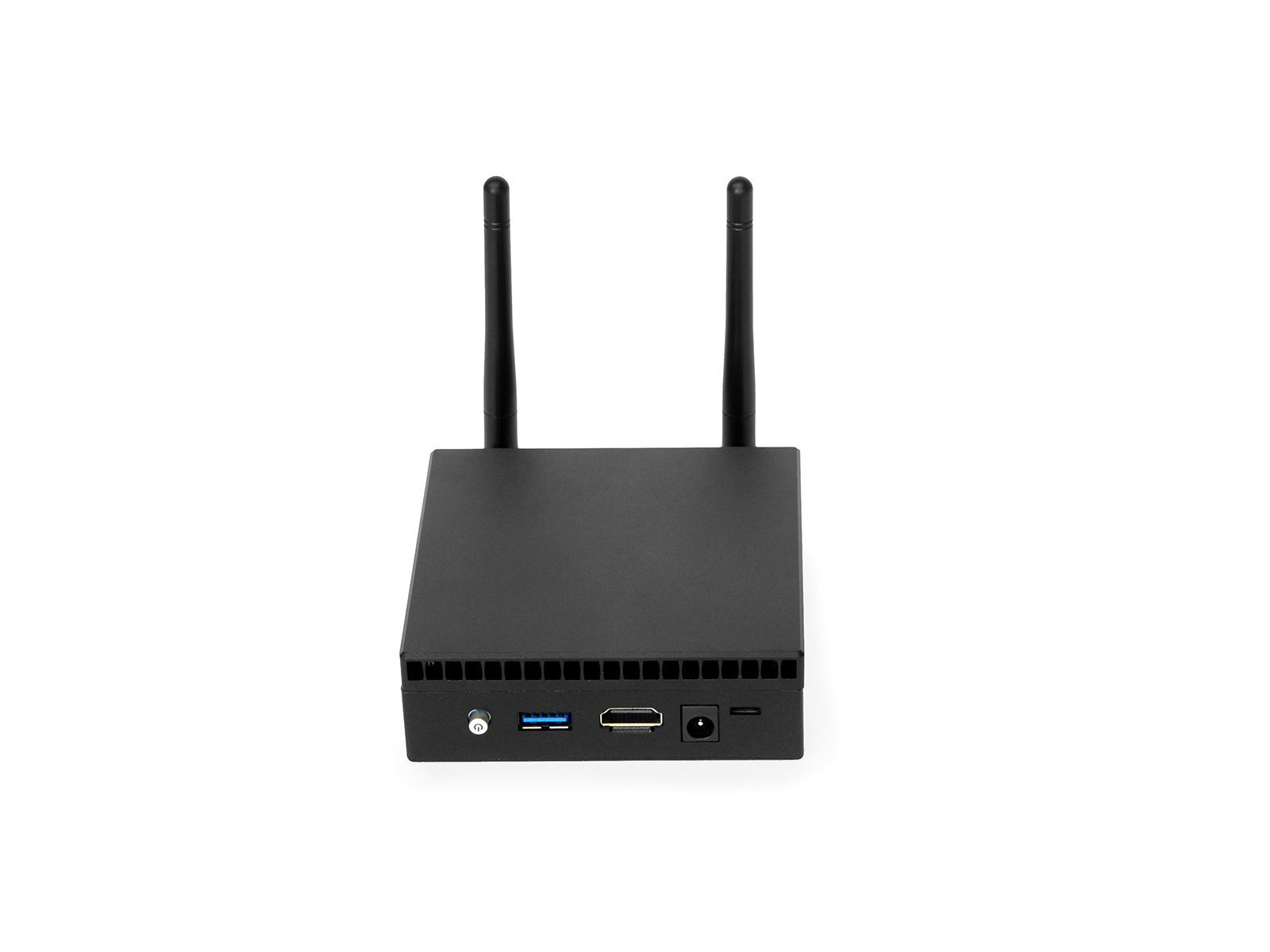

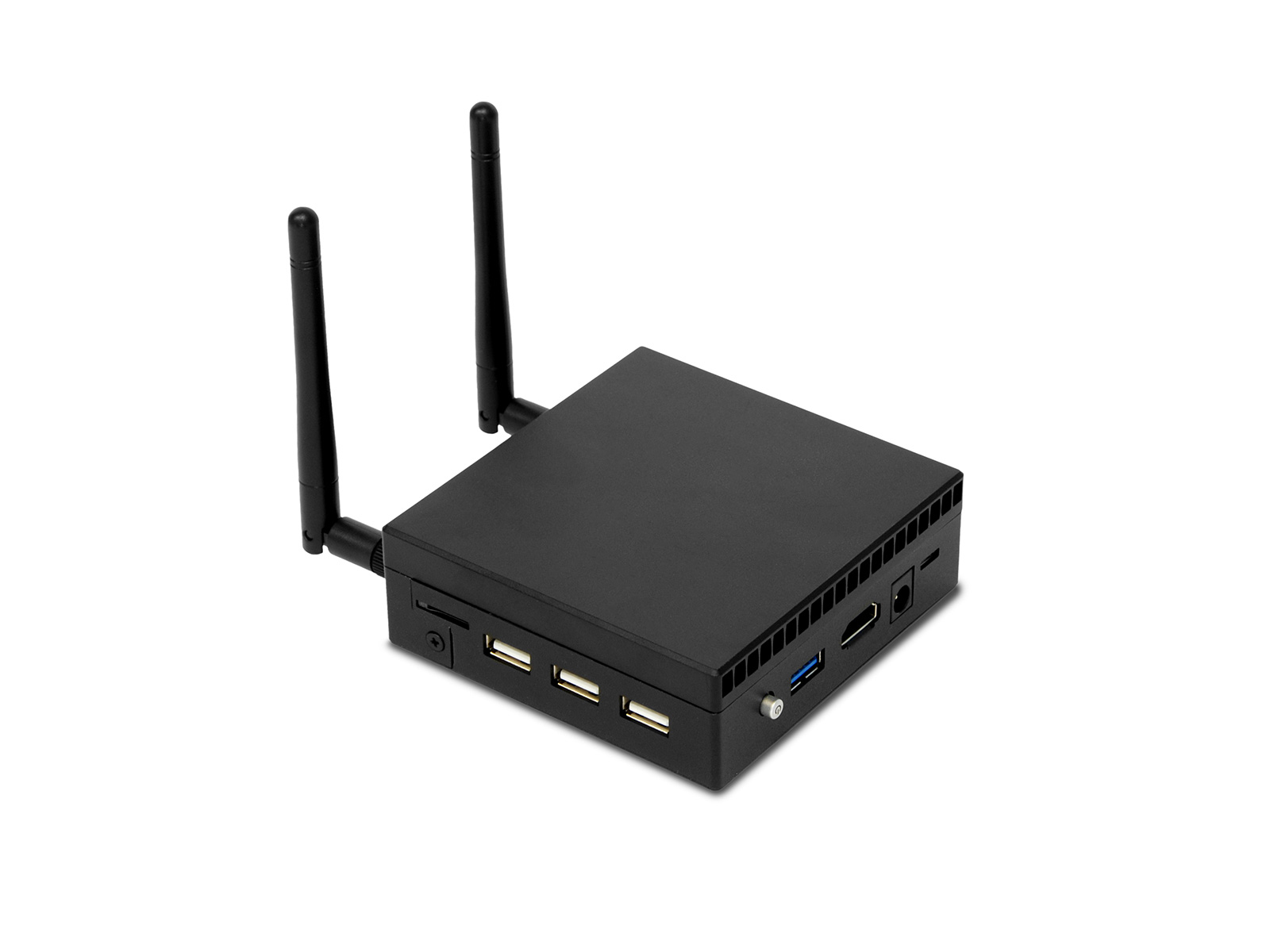

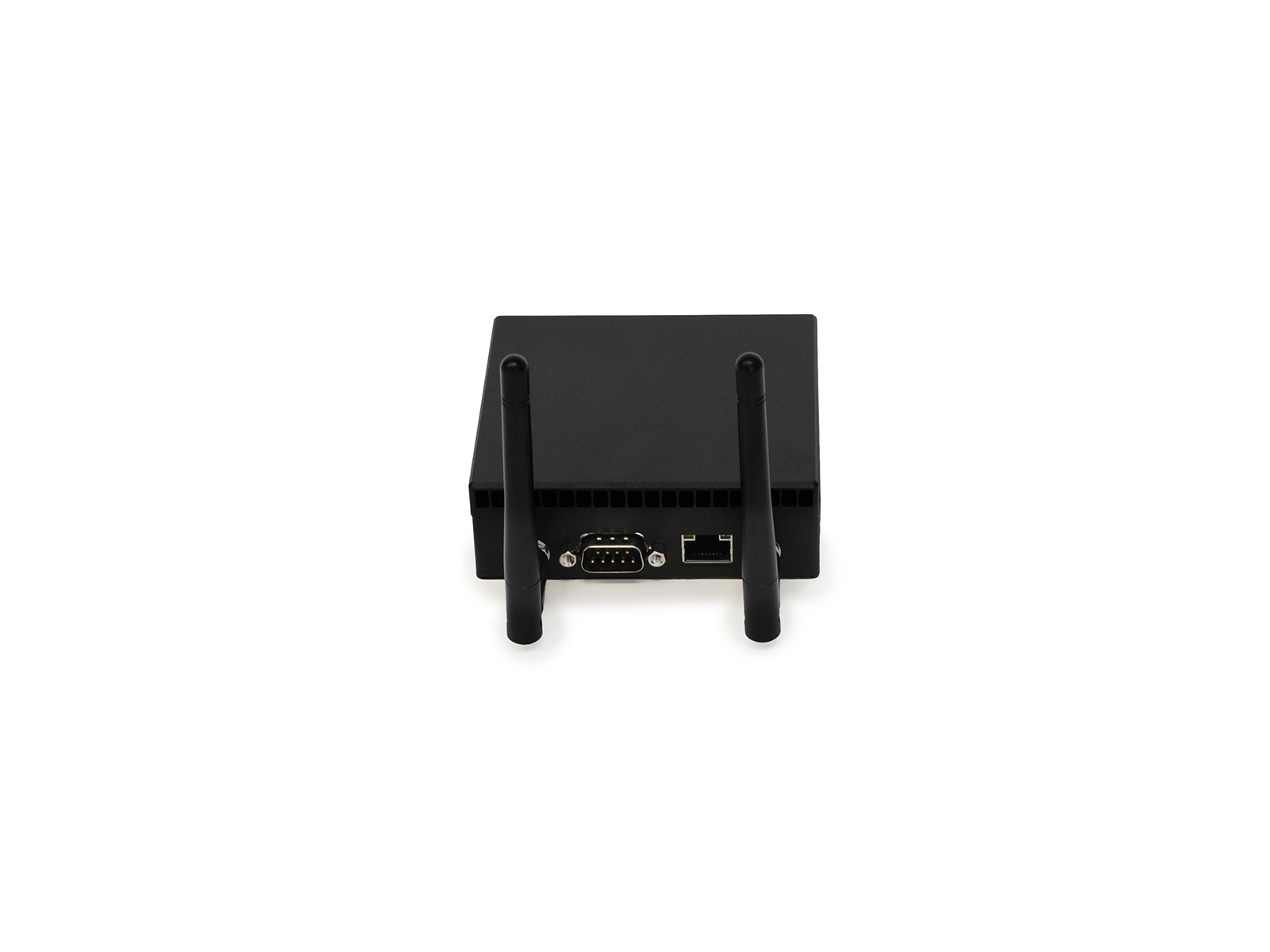

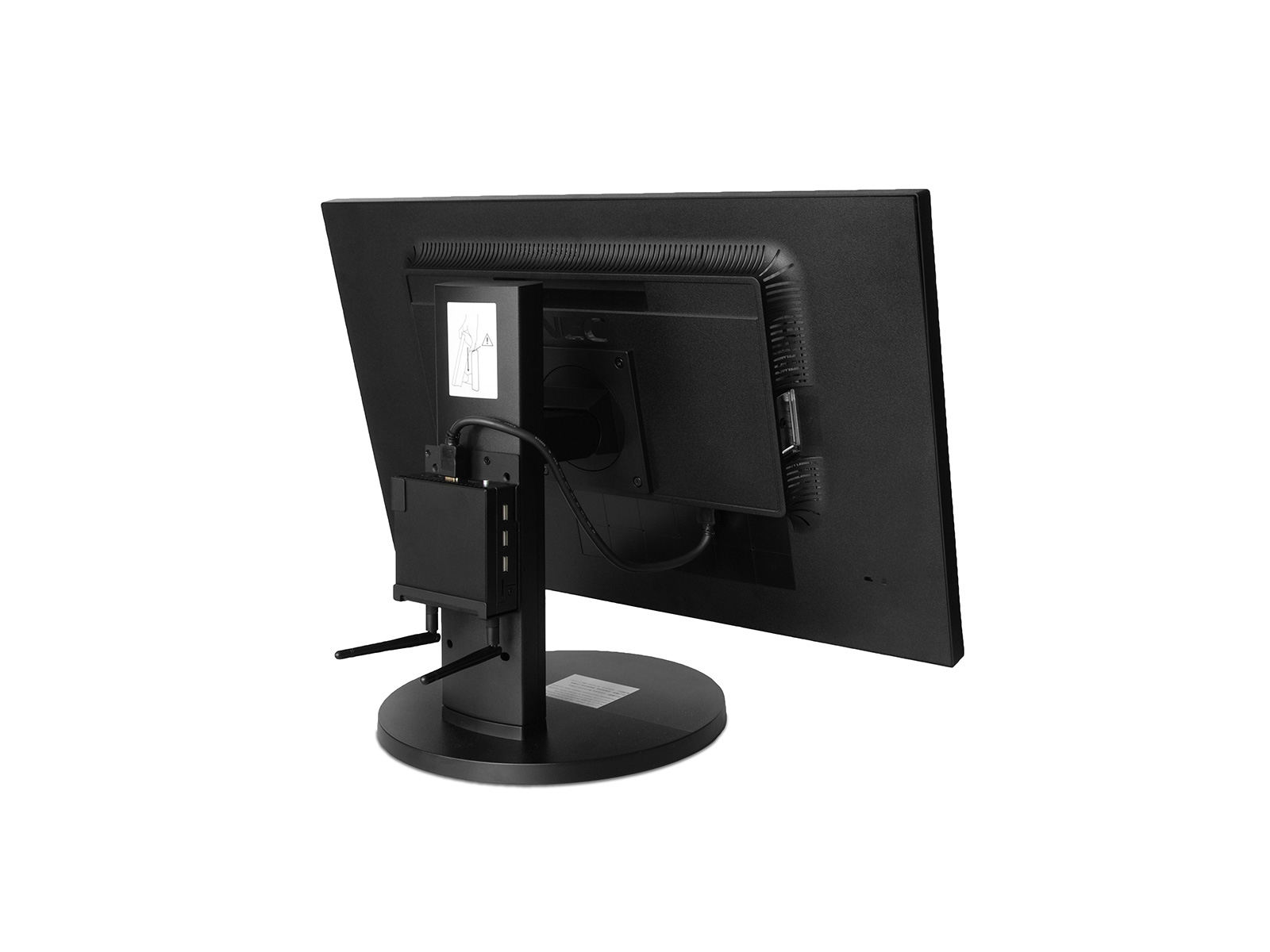

100014899 PC/workstation Intel Atom® x5-Z8350
2 GB DDR3L-SDRAM 32 GB Flash Windows 10 IoT Enterprise Mini PC Black
Model 100014899EAN 4719622294761
94 specifications
- ProcessorIntel Atom®
- Memory2 GB
- Storage32 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 32 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- NEC
- Category
- PCs/Workstations
- Model
- 100014899
- Part number
- 100014899
- EAN / UPC
- 4719622294761
- Also known as
- NEC 100014899 PC/workstation Intel Atom® x5-Z8350 2 GB DDR3L-SDRAM 32 GB Flash Windows 10 IoT Enterprise Mini PC Black
Specifications
94 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | x5-Z8350 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 1.92 GHz |
| Processor frequency | 1.44 GHz |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Atom x5 Series |
| Processor codename | Cherry Trail |
| Scenario Design Power (SDP) | 2 W |
| Tjunction | 90 °C |
| Maximum number of PCI Express lanes | 1 |
| PCI Express configurations | 1x1 |
| PCI Express slots version | 2.0 |
| Processor socket | BGA 592 |
| Maximum internal memory supported by processor | 2 GB |
| Memory types supported by processor | DDR3L-RS-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| Memory bandwidth supported by processor (max) | 12.8 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Single-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Optical drive type | No |
| Storage media | Flash |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 400 |
| Maximum on-board graphics card memory | 2 GB |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card burst frequency | 500 MHz |
| On-board graphics card dynamic frequency (max) | 500 MHz |
| Number of execution units | 12 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| RS‐232/422 port | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Intel 64 | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 93361 |
| Processor code | SR2KT |
| Processor package size | 17 x 17 mm |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93 mm |
| Depth | 97 mm |
| Height | 32 mm |
| Weight | 700 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 248 mm |
| Package depth | 212 mm |
| Package height | 59 mm |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
