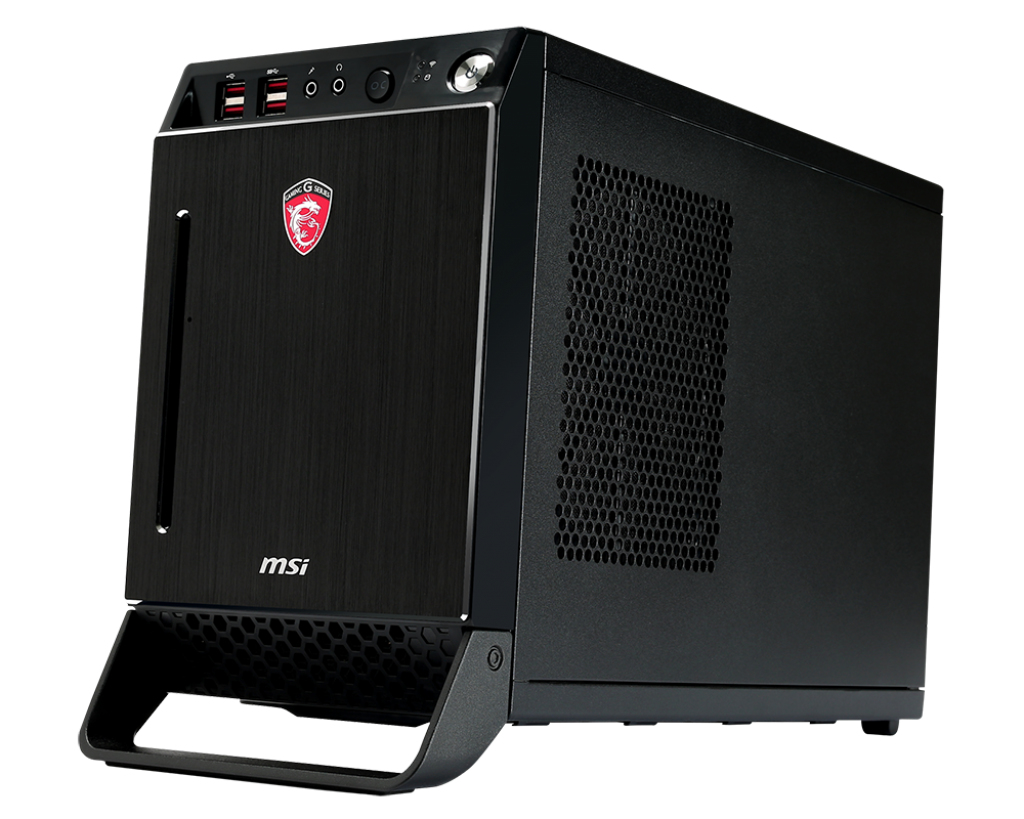

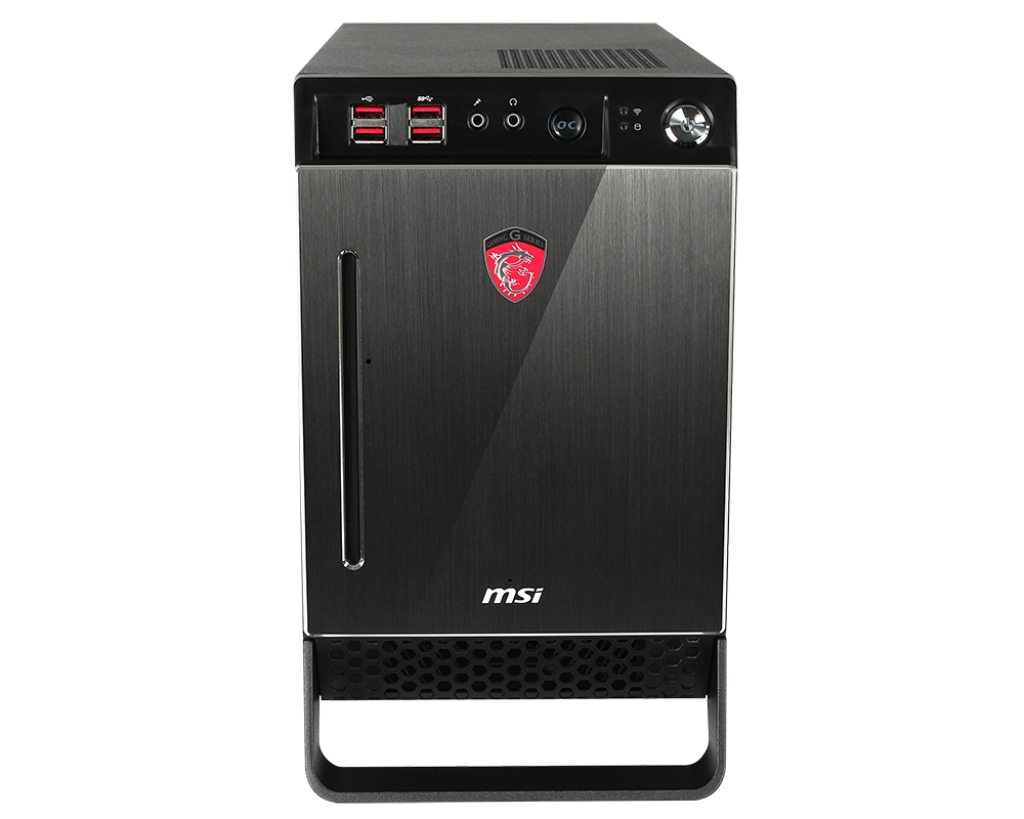

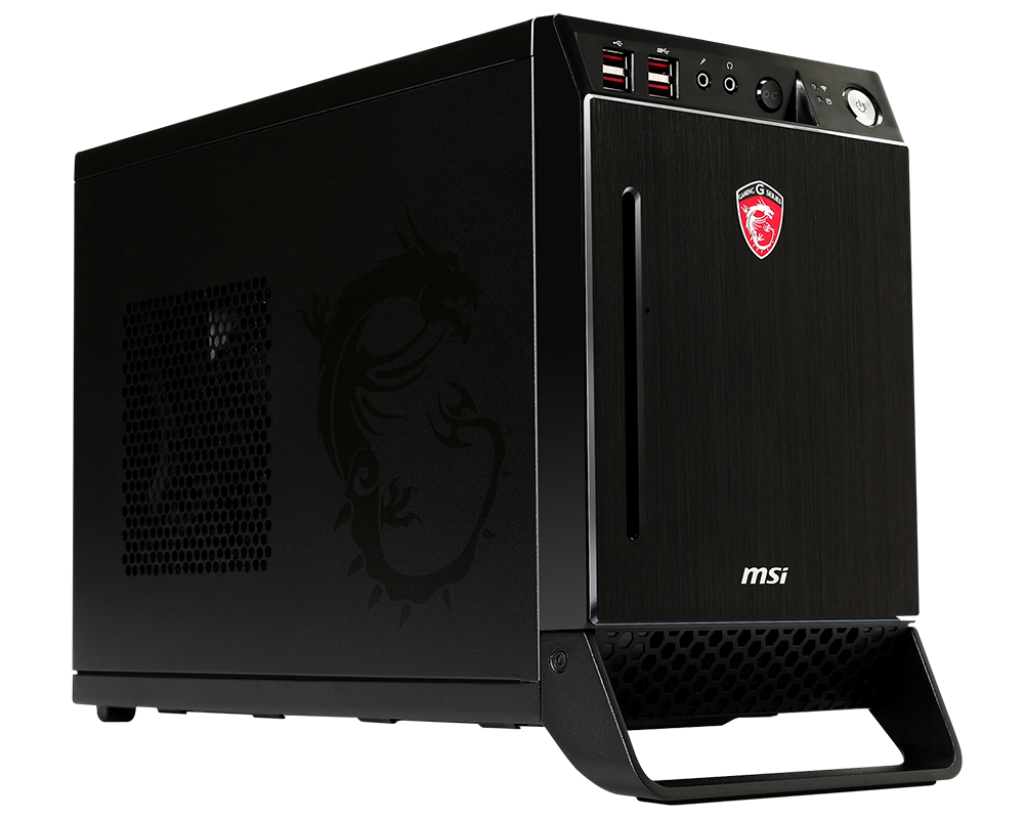

Nightblade Z97-037TW Intel® Core™ i7 i7-4790
16 GB DDR3-SDRAM 2.25 TB HDD+SSD NVIDIA® GeForce® GTX 980 Ti Windows 8.1 Desktop PC Black
Model Z97-037TWPart no. NIGHTBLADE Z97-037TW
154 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage2.25 TB
- GraphicsNVIDIA® GeForce® GTX 980 Ti
- SpeedWi-Fi 5 (802.11ac)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 2.25 TB
- Graphics
- NVIDIA® GeForce® GTX 980 Ti
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- Z97-037TW
- Part number
- NIGHTBLADE Z97-037TW
- Also known as
- MSI Nightblade Z97-037TW Intel® Core™ i7 i7-4790 16 GB DDR3-SDRAM 2.25 TB HDD+SSD NVIDIA® GeForce® GTX 980 Ti Windows 8.1 Desktop PC Black
Specifications
154 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 4th gen Intel® Core™ i7 |
| Processor model | i7-4790 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Core i7-4700 Desktop series |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 84 W |
| Tcase | 72.72 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1150 (Socket H3) |
| Stepping | C0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.5 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.25 TB |
| Storage media | HDD+SSD |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| SSD capacity | 256 GB |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 980 Ti |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4600 |
| Maximum on-board graphics card memory | 1.024 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0x412 |
| On-board graphics card OpenGL version | 4.0 |
| Graphics card Open GL support | Yes |
| NVIDIA G-SYNC | Yes |
| NVIDIA GameWorks VR | Yes |
| Graphics card DVI-D ports quantity | 0 |
| Graphics card DVI-I ports quantity | 1 |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® Z97 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

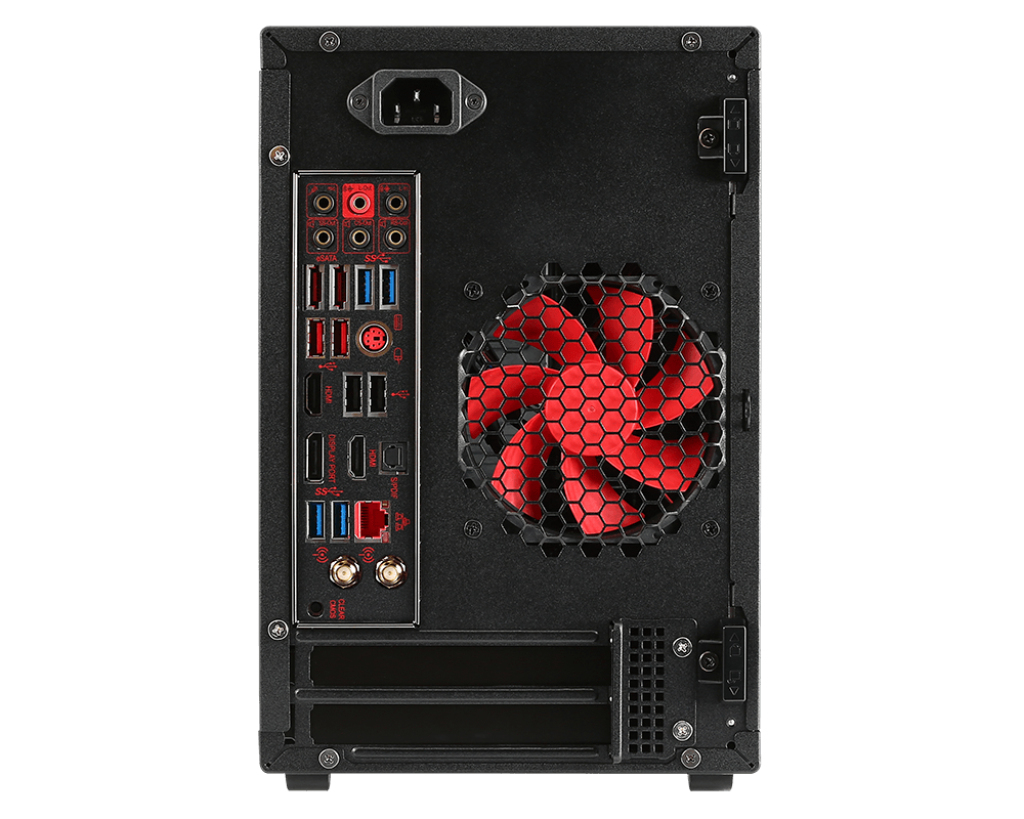

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 1 |
| eSATA ports quantity | 2 |
| S/PDIF out port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Placement supported | Vertical |
| Liquid cooling system | No |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8.1 |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel HD Graphics | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Built-in Visuals Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x, VT-d |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 80806 |
| Processor code | SR1QF |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013D |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC1150 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175.7 mm |
| Depth | 345.8 mm |
| Height | 277.3 mm |
| Weight | 10 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
