XE Plus 9SC-298EU
Model XE Plus 9SC-298EUPart no. CODEX XE PLUS 9SC-298EUEAN 4719072648800
122 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA® GeForce RTX™ 2060
- TypePC
- OSWindows 10 Home
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA® GeForce RTX™ 2060
- Type
- PC
- OS
- Windows 10 Home
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- XE Plus 9SC-298EU
- Part number
- CODEX XE PLUS 9SC-298EU
- EAN / UPC
- 4719072648800
- Also known as
- MSI Codex XE Plus 9SC-298EU Intel® Core™ i5 i5-9600K 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce RTX™ 2060 Windows 10 Home Desktop PC Black
Specifications
122 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 9th gen Intel® Core™ i5 |
| Processor model | i5-9600K |
| Processor cores | 6 |
| Processor threads | 6 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 3.7 GHz |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 95 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2060 |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E98 |
| On-board graphics card OpenGL version | 4.5 |
| CUDA | Yes |
| NVIDIA G-SYNC | Yes |
| NVIDIA GameWorks VR | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | Intel Z390 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |

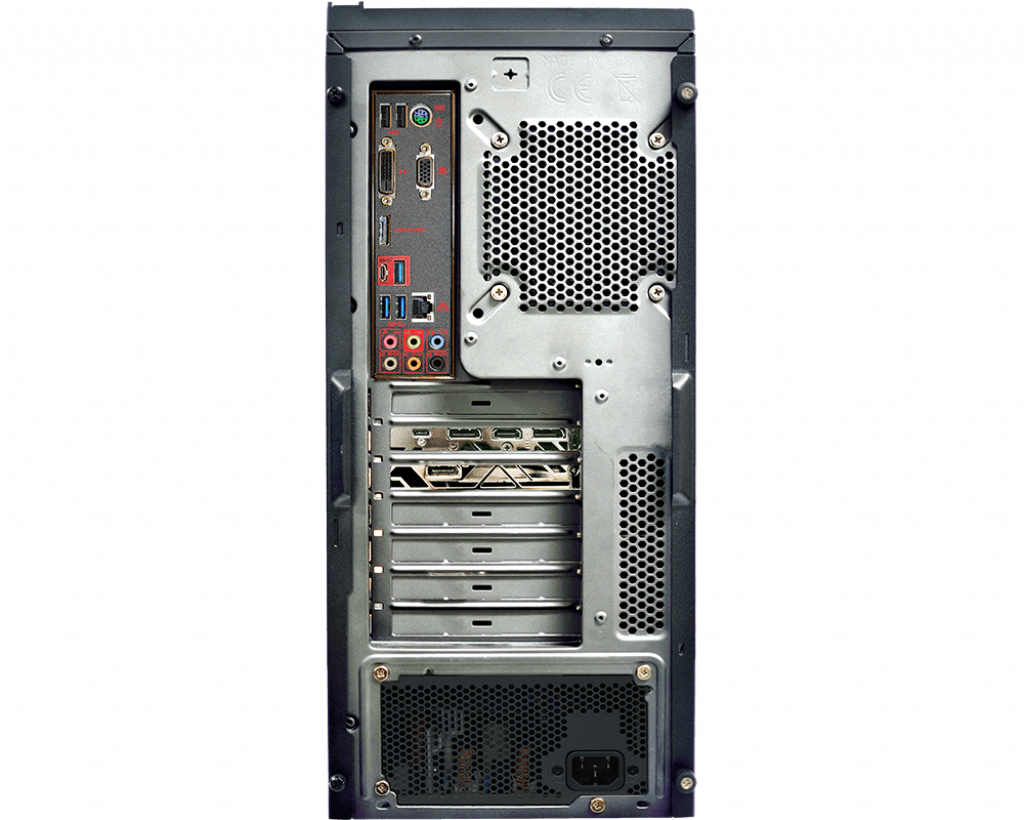

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 1 |
| On/off button | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Volume | 40 L |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 134896 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015D |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 195 mm |
| Depth | 494 mm |
| Height | 461 mm |
| Weight | 10.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 13.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
