MSI Windbox III 9A35-7316

Model Windbox III 9A35-7316Part no. 009A35-050REAN 4719072174958

113 specifications

Overview

Brand: MSI
Category: PCs/Workstations
Model: Windbox III 9A35-7316
Part number: 009A35-050R
EAN / UPC: 4719072174958
Also known as: MSI Windbox III 9A35-7316 Intel® Core™2 Duo SU7300 1 GB DDR2-SDRAM 160 GB Windows XP Professional Desktop Mini PC Black

113 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	SU7300
Processor cores	2
Processor threads	2
Processor frequency	1.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Penryn
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Number of processors installed	1
Processor socket	BGA 956
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
Stepping	R0
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® GMA
On-board graphics card model	Intel® GMA 4500MHD
Graphics card family	Intel

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® GS45 Express

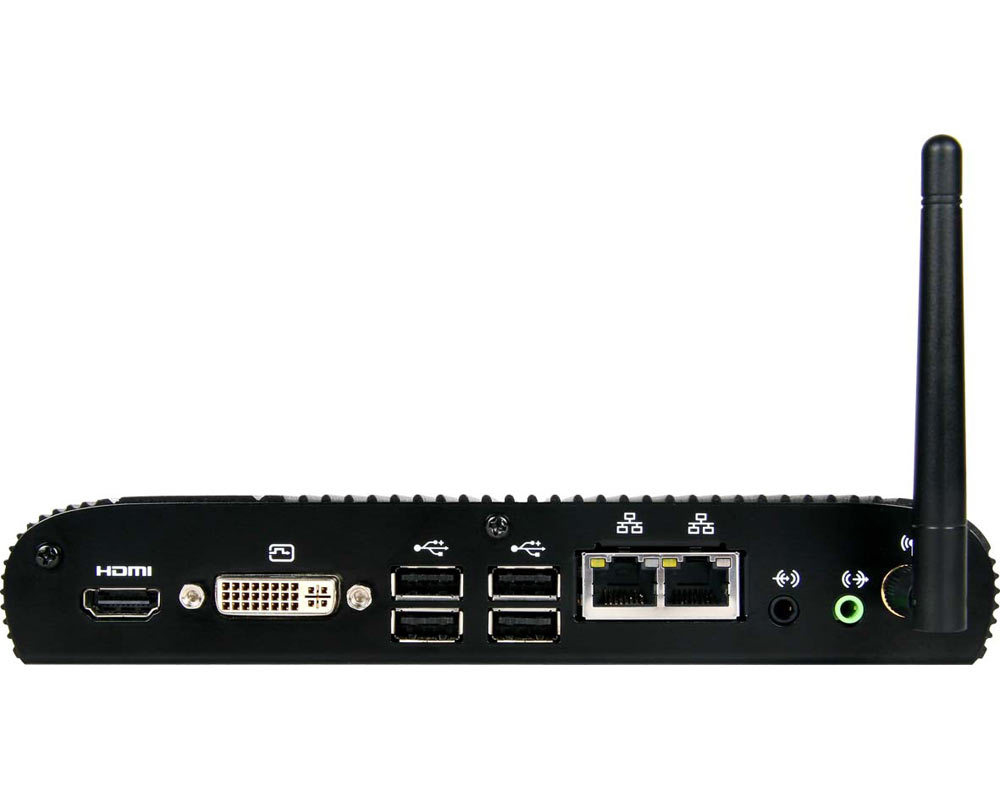

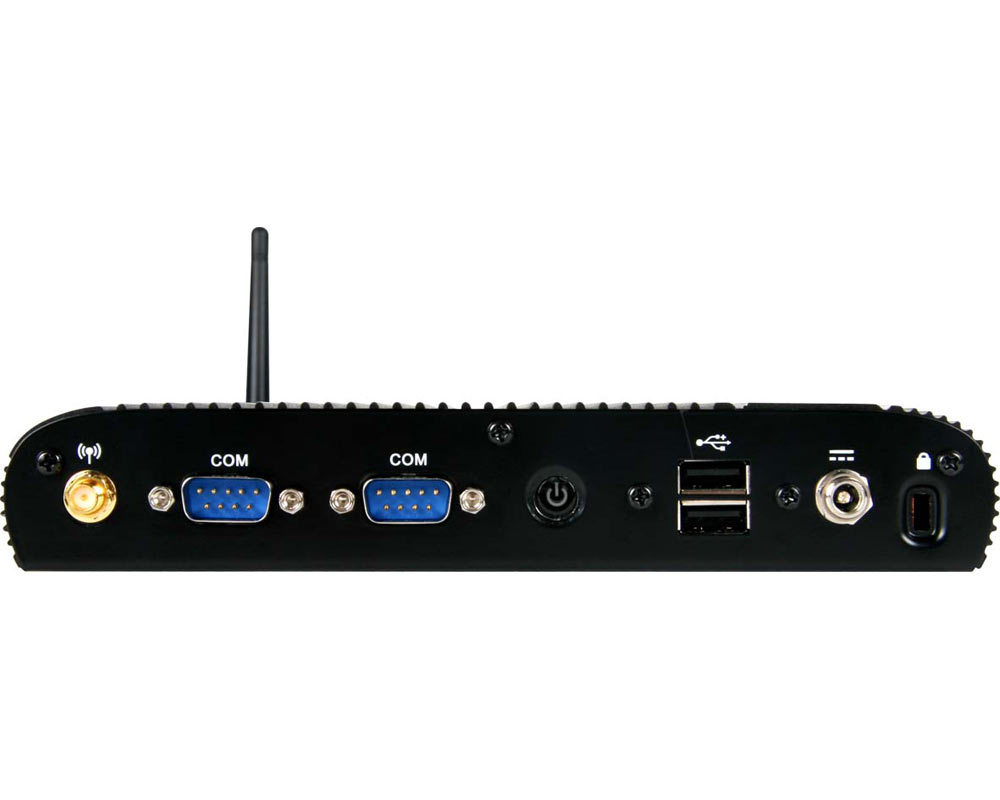

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	2
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
DC-in jack	Yes
Serial ports quantity	2
Parallel ports quantity	0

Specification	Value
Chassis type	Desktop
Product colour	Black

Specification	Value
Operating system installed	Windows XP Professional
Drivers included	Yes

Specification	Value
Display included	No

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	42791
Processor code	SLGYV
Processor package size	22 x 22 mm
Supported instruction sets	SSE4
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	Realtec ALC888 HD

Specification	Value
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	32 - 140 °F

Specification	Value
Certification	BSMI FCC C-tick CE CCC VCCI RoHS
