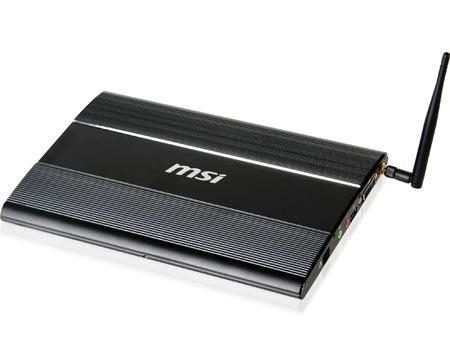

WindBOX II
Model WindBOX IIPart no. WINDBOXII
96 specifications
- ProcessorIntel Pentium Mobile
- Memory1 GB
- Storage0 GB
- TypePC
- OSNo
- Weight1.08 kg
Overview
- Processor
- Intel Pentium Mobile
- Memory
- 1 GB
- Storage
- 0 GB
- Type
- PC
- OS
- No
- Weight
- 1.08 kg
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- WindBOX II
- Part number
- WINDBOXII
- Also known as
- MSI Wind WindBOX II Intel Pentium Mobile N270 1 GB DDR2-SDRAM 0 GB Small Desktop PC Black
Specifications
96 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium Mobile |
| Processor model | N270 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 32-bit |
| Processor series | Intel Atom N200 Series |
| Processor codename | Diamondville |
| Thermal Design Power (TDP) | 2.5 W |
| Tjunction | 90 °C |
| Processor socket | Socket F (1207) |
| Number of Processing Die Transistors | 47 M |
| Processing Die size | 26 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| Stepping | C0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 667 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| HDD interface | SATA |
| Card reader integrated | No |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Networking features | 802.11 b/g/n |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x mini-PCIe |
Power
| Specification | Value |
|---|---|
| Power supply type | DC 20V |
| Power supply | 40 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Small Desktop |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | No |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 36331 |
| Processor code | SLB73 |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | -10 - 60% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 255 mm |
| Depth | 180 mm |
| Height | 19 mm |
| Weight | 1.08 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
