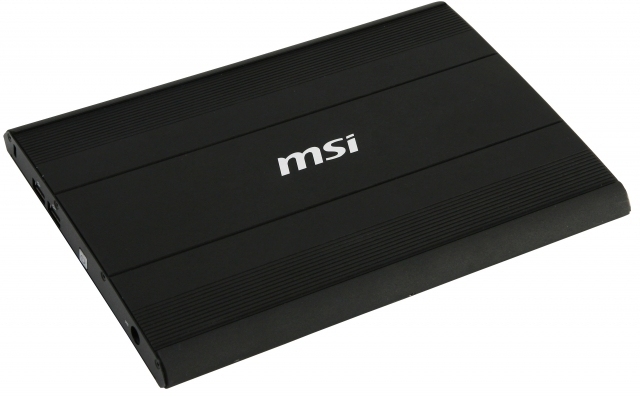

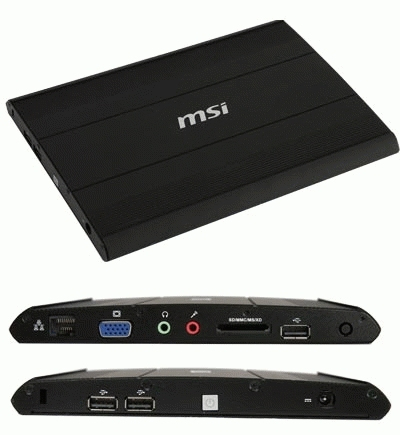

WindBox 9A15-2716XP
Model WindBox 9A15-2716XPPart no. 009A15-010REAN 4719072106737
100 specifications
- ProcessorIntel Pentium Mobile
- Memory1 GB
- Storage160 GB
- GraphicsIntel® GMA 950
- TypePC
- OSWindows XP Home Edition
Overview
- Processor
- Intel Pentium Mobile
- Memory
- 1 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 950
- Type
- PC
- OS
- Windows XP Home Edition
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- WindBox 9A15-2716XP
- Part number
- 009A15-010R
- EAN / UPC
- 4719072106737
- Also known as
- MSI Wind WindBox 9A15-2716XP Intel Pentium Mobile N270 1 GB DDR2-SDRAM 160 GB Intel® GMA 950 Windows XP Home Edition PC Black
Specifications
100 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium Mobile |
| Processor model | N270 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 32-bit |
| Processor series | Intel Atom N200 Series |
| Processor codename | Diamondville |
| Thermal Design Power (TDP) | 2.5 W |
| Tjunction | 90 °C |
| Number of processors installed | 1 |
| Processor socket | Socket F (1207) |
| Number of Processing Die Transistors | 47 M |
| Processing Die size | 26 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| Stepping | C0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 1 x 1 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | No |
| HDD interface | SATA II |
| Card reader integrated | Yes |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 950 |
| Maximum graphics card memory | 0.224 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Audio output channels | 2.0 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Networking features | Fast Ethernet, WLAN |
| Wireless technology | 802.11 b/g |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power requirements | DC 20V |
| Power supply | 40 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Home Edition |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | No |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 36331 |
| Processor code | SLB73 |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 255 mm |
| Height | 19 mm |
| Weight | 1.08 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, CSA (cUL), TUV, TUV-CB, CE-LVD, CE, FCC Class B, BSMI, VCCI, C-Tick, RoHS |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
