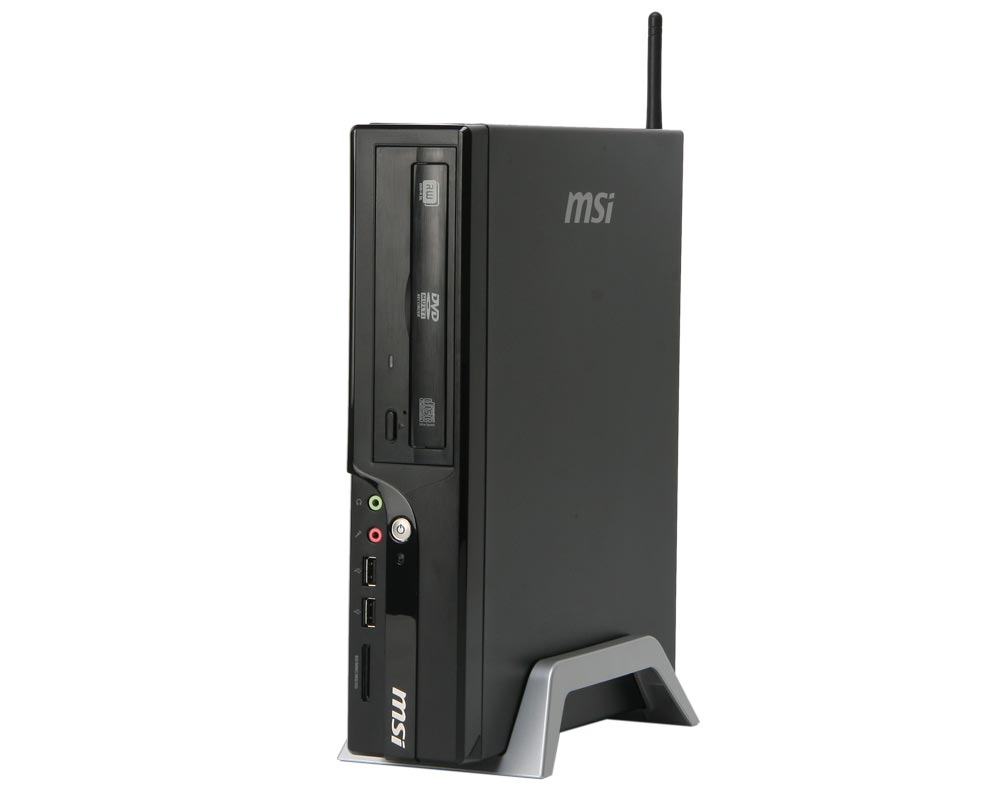

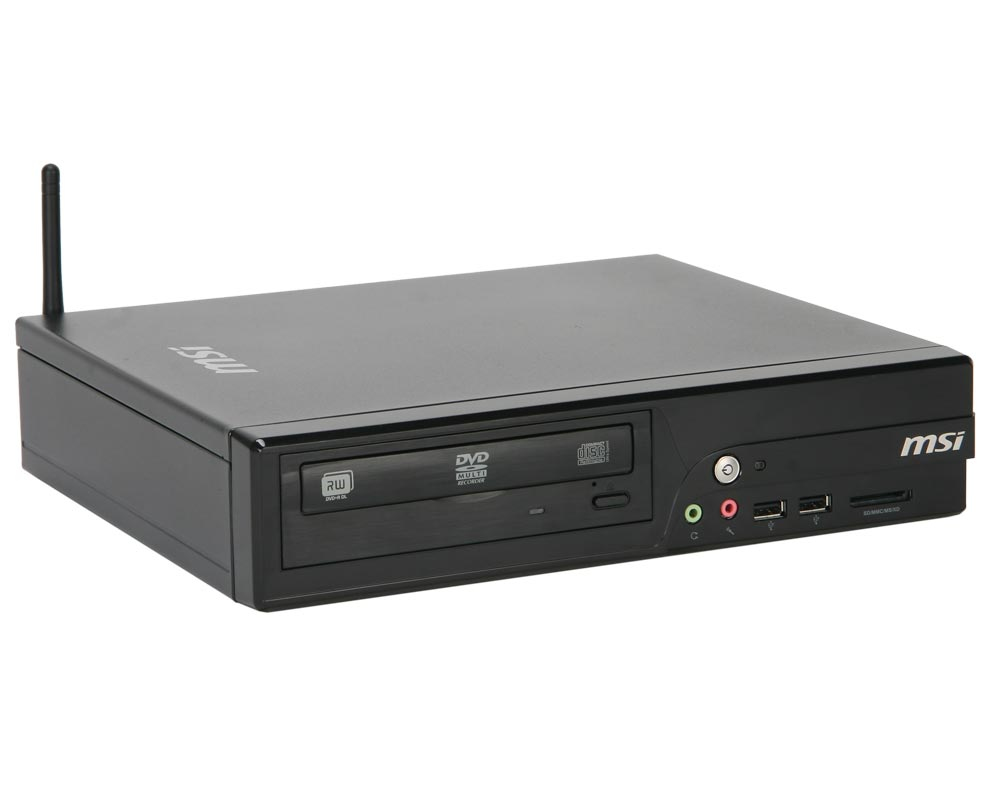

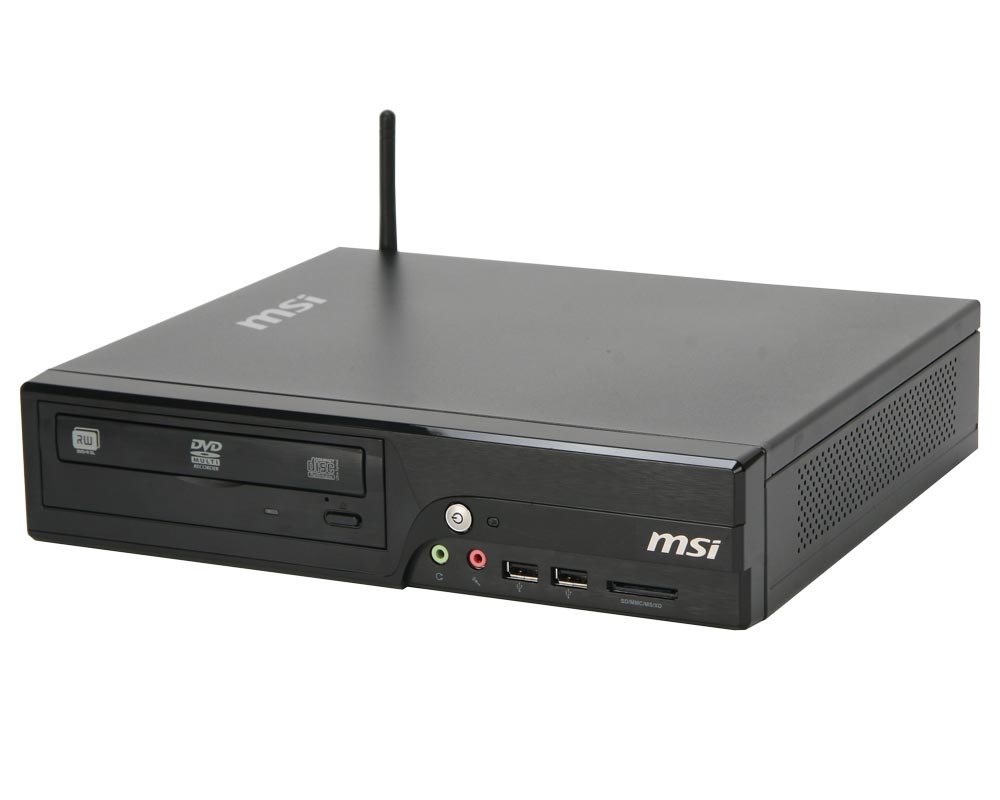

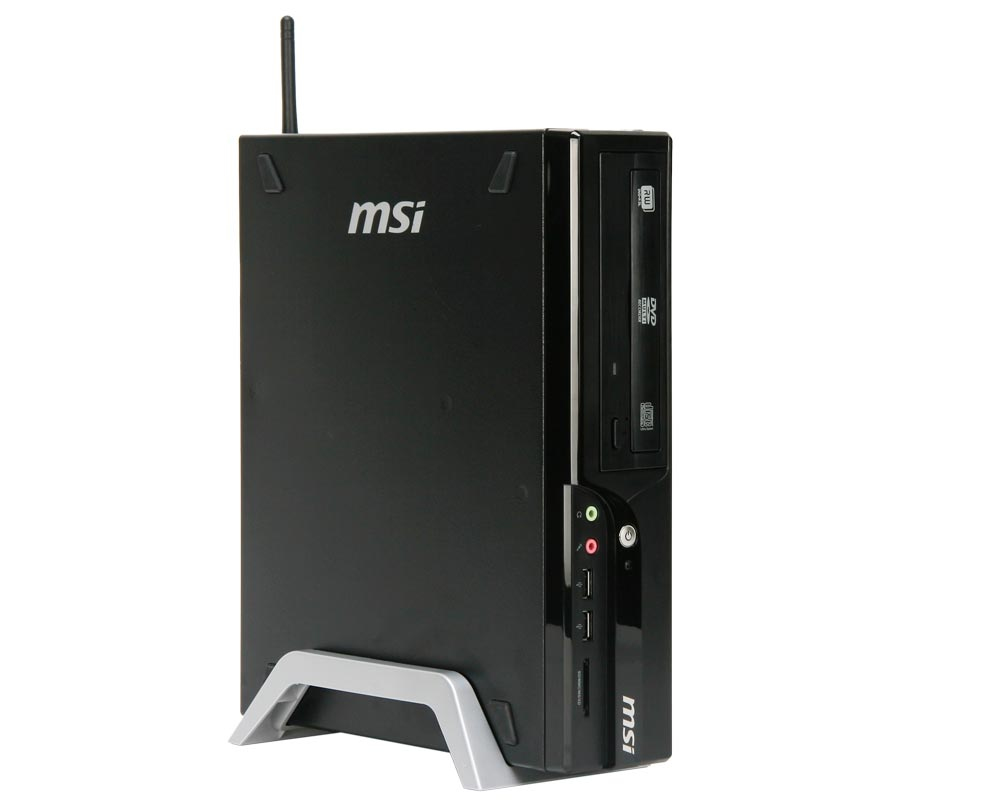

Wind Box DE500-016NE
Model Wind Box DE500-016NEPart no. DE500-016NEEAN 4719072213121
106 specifications
- ProcessorIntel Atom®
- Memory3 GB
- Storage500 GB
- GraphicsAMD Mobility Radeon HD 4330
- TypePC
- OSWindows 7 Home Premium
Overview
- Processor
- Intel Atom®
- Memory
- 3 GB
- Storage
- 500 GB
- Graphics
- AMD Mobility Radeon HD 4330
- Type
- PC
- OS
- Windows 7 Home Premium
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- Wind Box DE500-016NE
- Part number
- DE500-016NE
- EAN / UPC
- 4719072213121
- Also known as
- MSI Wind Box DE500-016NE Intel Atom® D510 3 GB DDR2-SDRAM 500 GB AMD Mobility Radeon HD 4330 Windows 7 Home Premium Small Desktop PC Black
Specifications
106 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D510 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.66 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Bus type | DMI |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Atom D500 Series |
| Processor codename | Pineview |
| Thermal Design Power (TDP) | 13 W |
| Tjunction | 100 °C |
| Number of processors installed | 1 |
| Processor socket | BGA 559 |
| Number of Processing Die Transistors | 176 M |
| Processing Die size | 87 mm² |
| Stepping | B0 |
| Maximum internal memory supported by processor | 4 GB |
| Memory types supported by processor | DDR2 667/800 |
| Memory bandwidth supported by processor (max) | 6.4 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 2x DIMM |
| Memory channels | Single-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA II |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), miniSD, MMC, SD, xD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | AMD Mobility Radeon HD 4330 |
| On-board graphics card model | Integrated |
| Graphics card family | AMD |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel NM10 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet, WLAN |

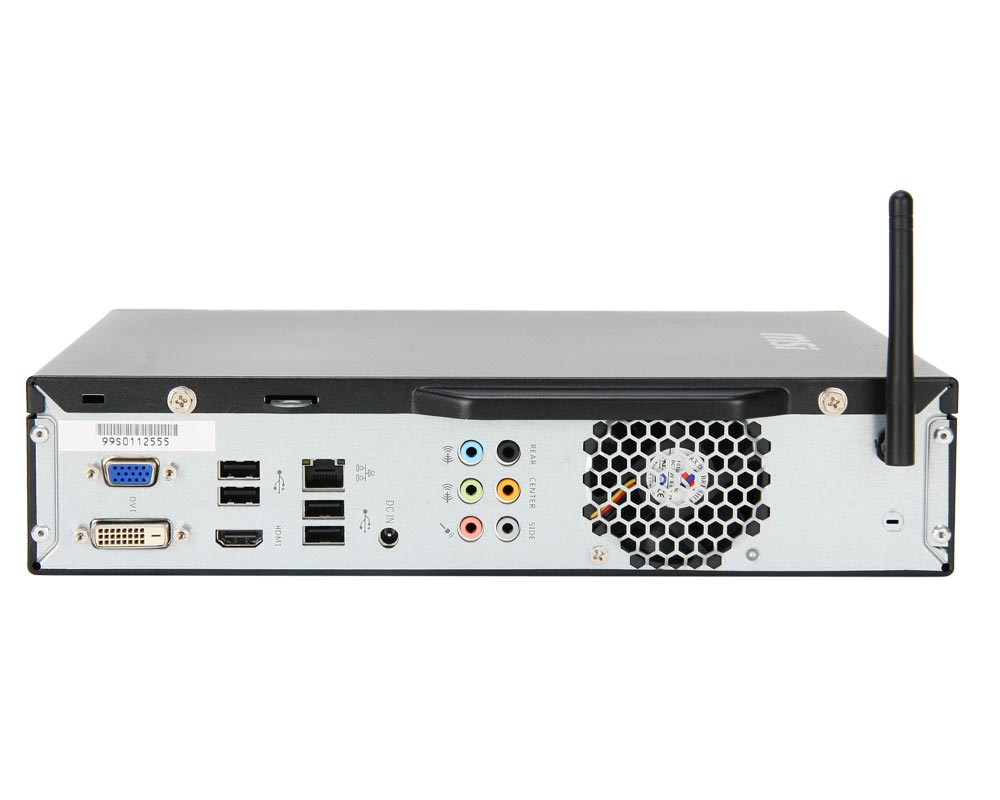

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| DC-in jack | Yes |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Small Desktop |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Processor ARK ID | 43098 |
| Processor code | SLBLA |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 240 mm |
| Height | 65 mm |
| Weight | 4.4 kg |
