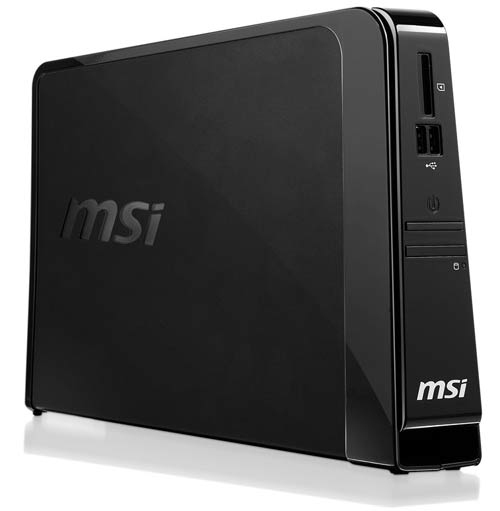

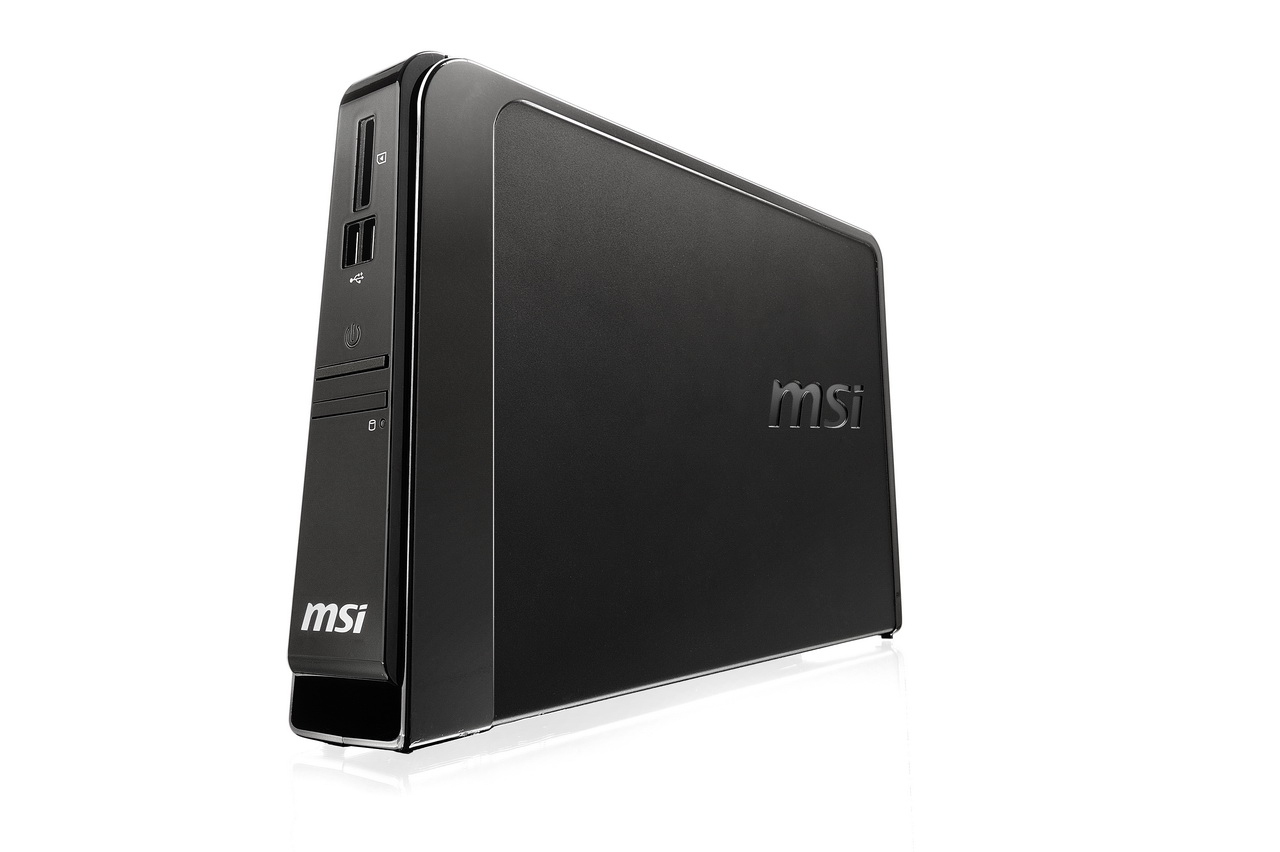

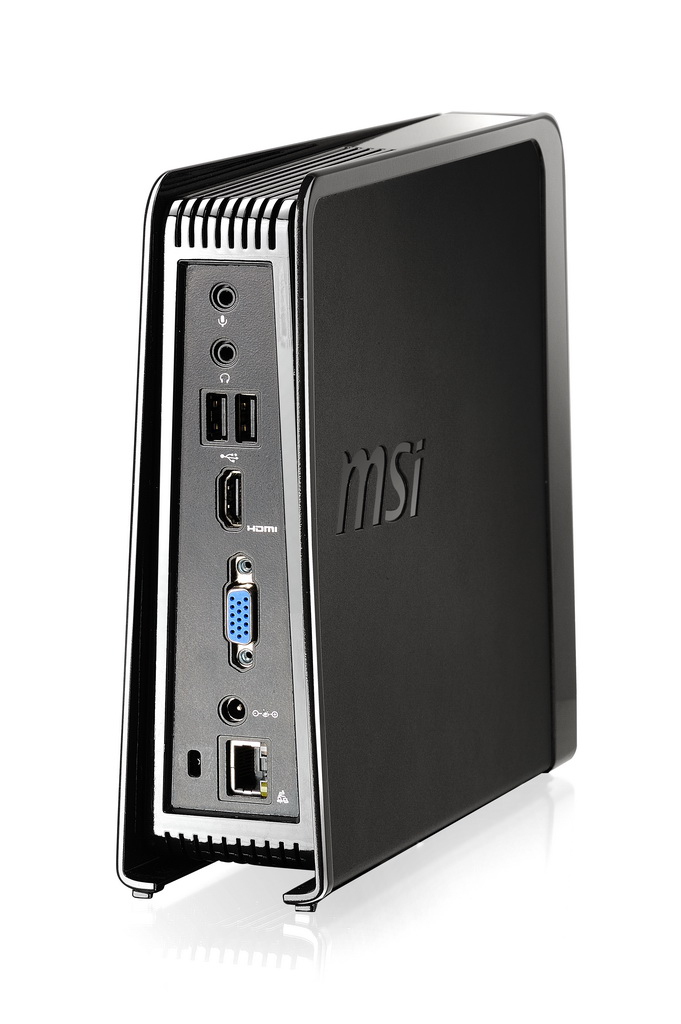

MSI Wind Box DE220

Model Wind Box DE220Part no. DE220-009ESEAN 4719072168261

109 specifications

Overview

Brand: MSI
Category: PCs/Workstations
Model: Wind Box DE220
Part number: DE220-009ES
EAN / UPC: 4719072168261
Also known as: MSI Wind Box DE220 Intel Atom® D510 2 GB DDR2-SDRAM 320 GB AMD Radeon HD 4330 Linux Small Desktop PC Black

109 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D510
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
Processor cache	1 MB
Processor cache type	L2
Bus type	DMI
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Processor codename	Pineview
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Processor socket	BGA 559
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Stepping	B0
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	320 GB
Optical drive type	No
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), miniSD, MMC, SD, xD
Floppy drive installed	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	AMD Radeon HD 4330
On-board graphics card model	Integrated
Maximum graphics card memory	0.256 GB
Graphics card family	AMD

Specification	Value
Product type	PC
Audio output channels	7.1 channels

Specification	Value
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
Mini DisplayPorts quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
eSATA ports quantity	1
S/PDIF out port	Yes
DC-in jack	Yes
SmartCard slot	No
TV-out	No
Serial ports quantity	0
Parallel ports quantity	0
Modem (RJ-11) ports	0
USB 1.1 ports quantity	0

Specification	Value
Power availability	65 W

Specification	Value
Chassis type	Small Desktop
Product colour	Black

Specification	Value
Operating system installed	Linux

Specification	Value
Display included	No

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	43098
Processor code	SLBLA
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Remote control included	No
