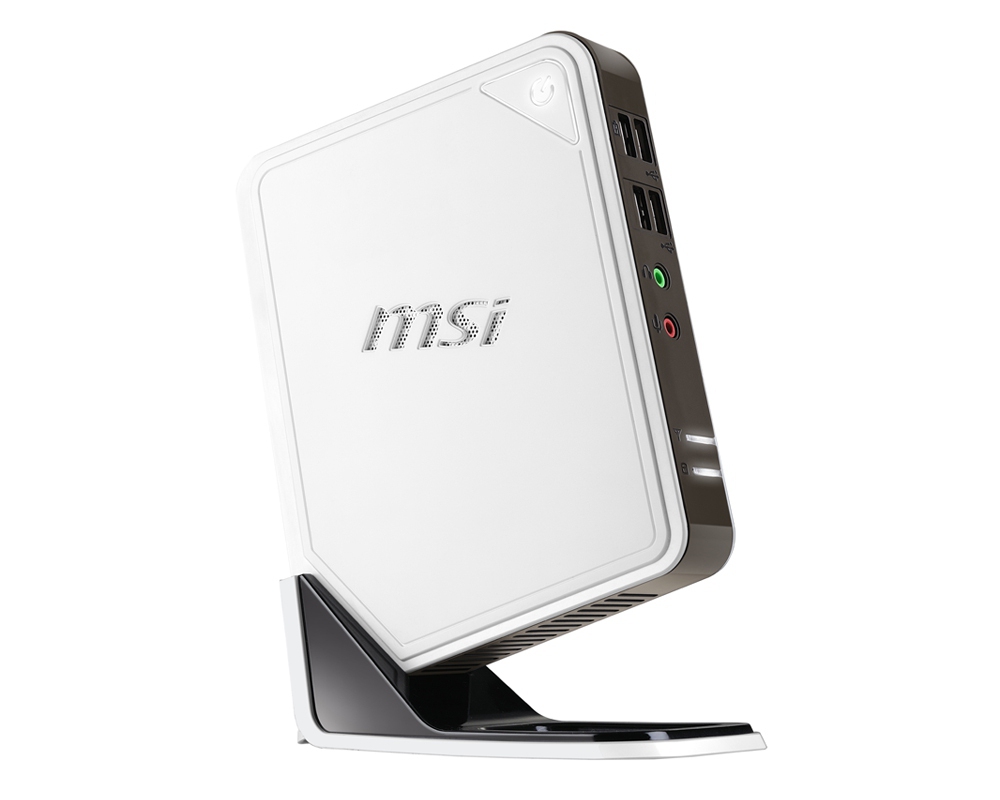

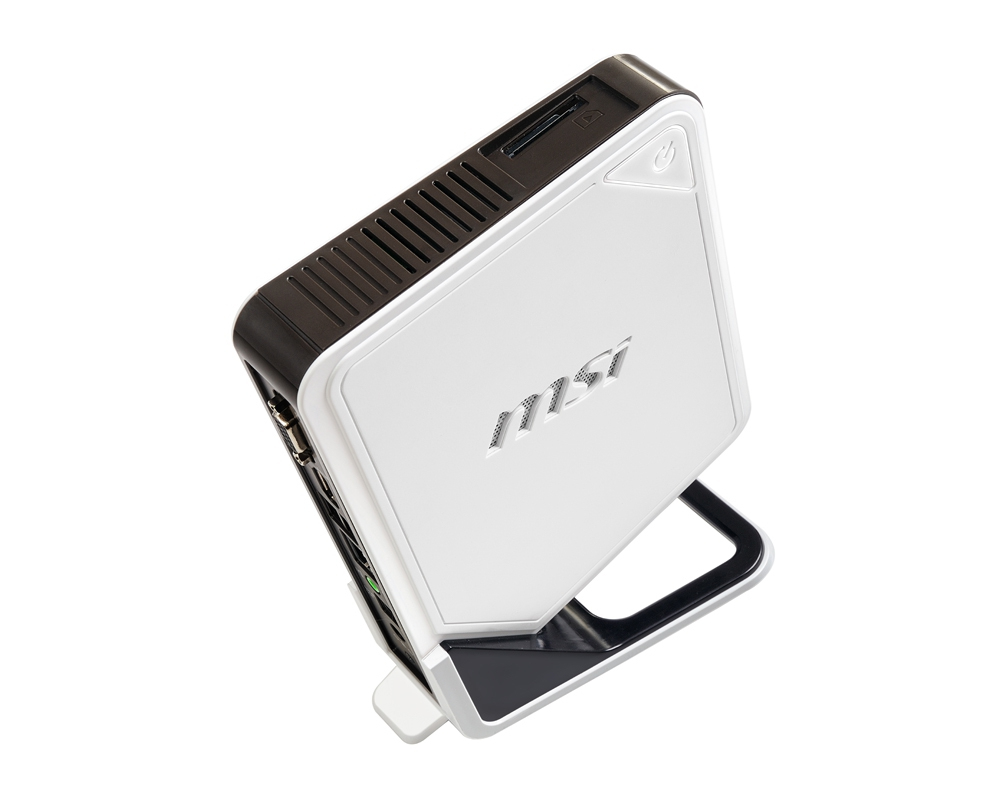

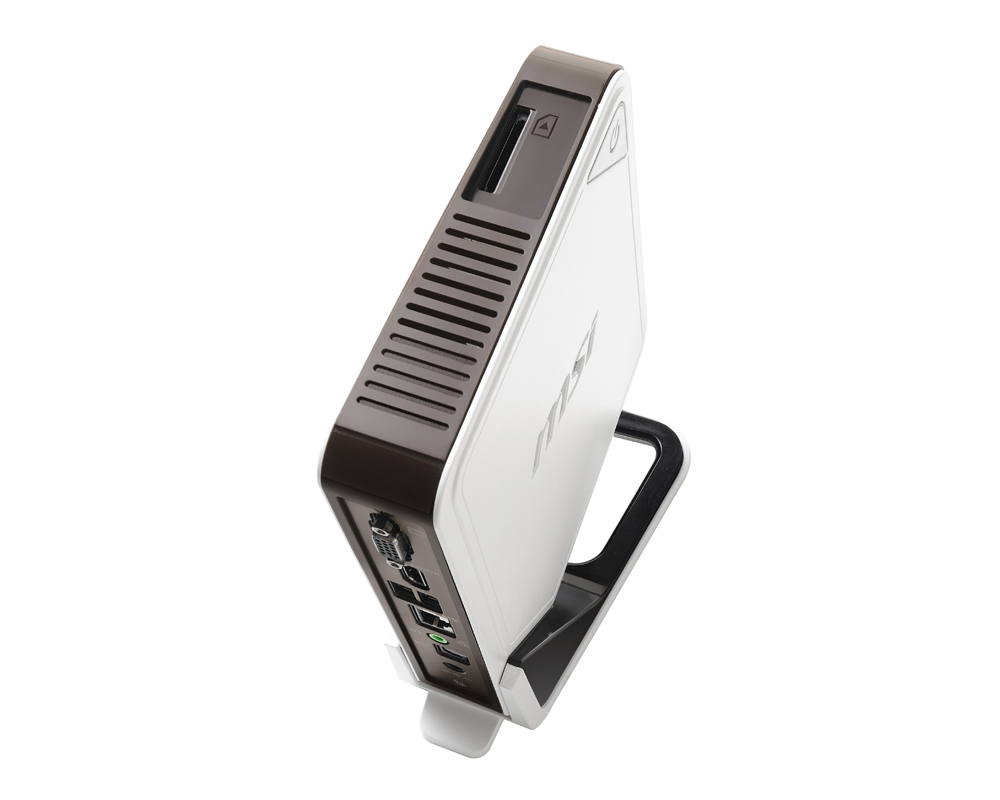

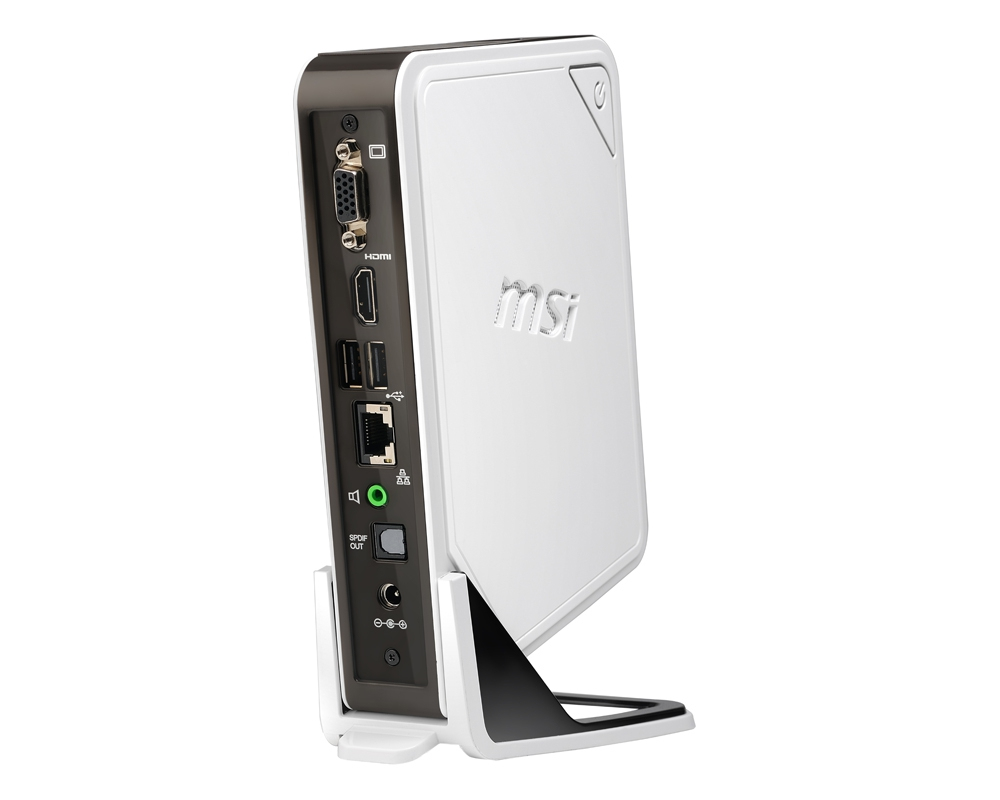

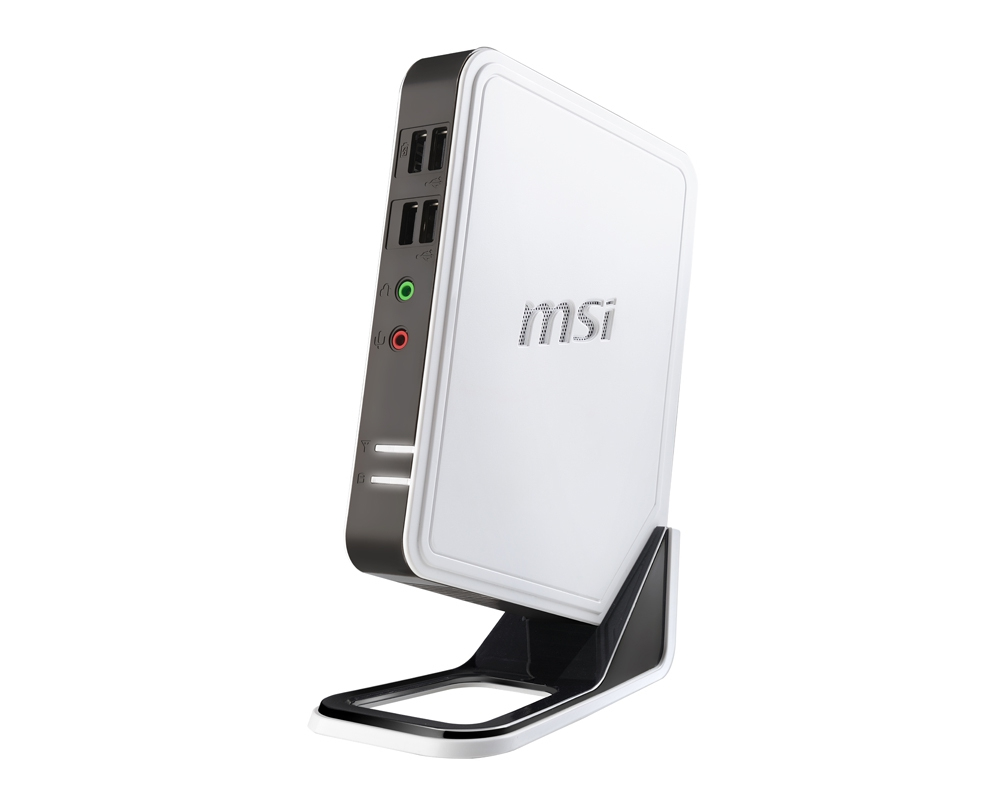

Wind Box DC100
Model Wind Box DC100Part no. DC100-009EUEAN 4719072237950
67 specifications
- ProcessorAMD E
- Memory2 GB
- Storage320 GB
- GraphicsNot available
- SpeedWi-Fi 4 (802.11n)
- TypeMini PC
Overview
- Processor
- AMD E
- Memory
- 2 GB
- Storage
- 320 GB
- Graphics
- Not available
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Mini PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- Wind Box DC100
- Part numbers
- DC100-009EU, DC100-EU-WE45002G32X7P
- EAN / UPC
- 4719072237950
- Also known as
- MSI Wind Box DC100 AMD E E-450 2 GB DDR3-SDRAM 320 GB Windows 7 Home Premium Mini PC White
Specifications
67 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD E |
| Processor model | E-450 |
| Processor cores | 2 |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 1066 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Optical drive type | No |
| Number of HDDs installed | 1 |
| HDD capacity | 320 GB |
| HDD interface | SATA II |
| HDD speed | 5400 RPM |
| HDD size | 3.5" |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | AMD Radeon HD 6000 |
| On-board graphics card model | AMD Radeon HD 6320 |
| Graphics card family | AMD |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | AMD A50M |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wake-on-LAN ready | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| S/PDIF out port | Yes |
| DC-in jack | Yes |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power supply | 40 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Operating system architecture | 64-bit |
| Mac compatibility | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC662 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 34.9 mm |
| Depth | 150.9 mm |
| Height | 191.8 mm |
| Weight | 850 g |
Certificates
| Specification | Value |
|---|---|
| Safety | UL, CB |
| Compliance certificates | RoHS |
| Certification | CE, FCC, C-TICK, VCCI, BSMI |
