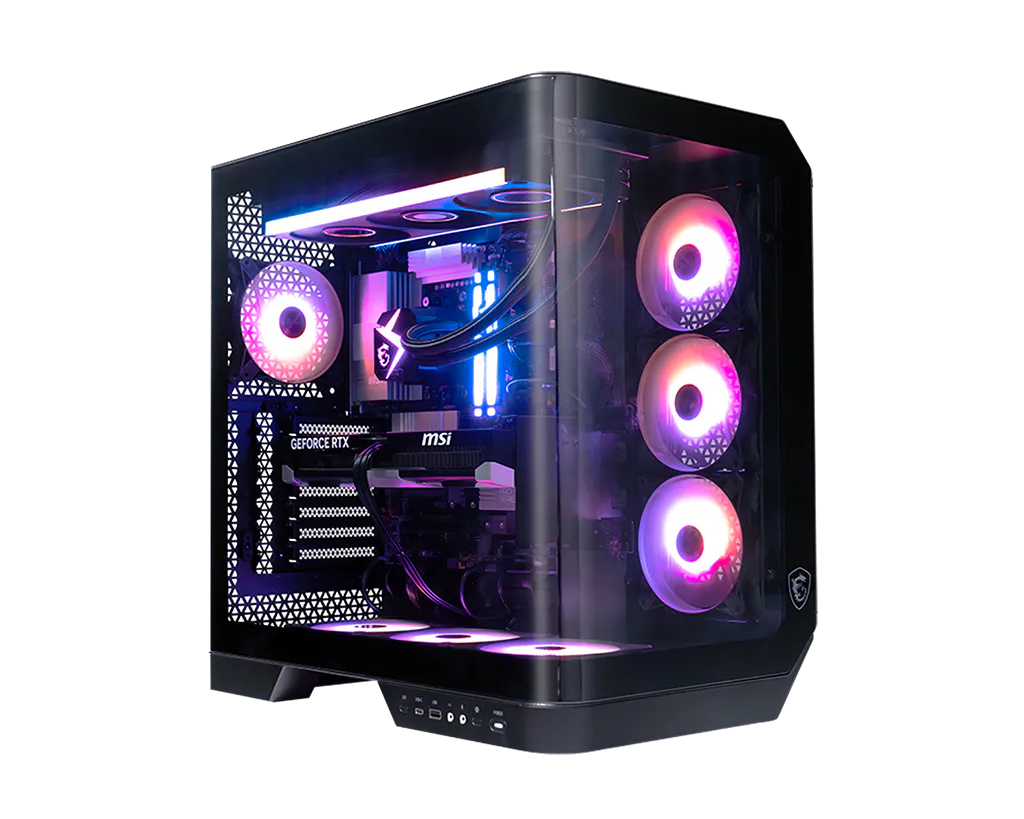

Vision ZS 9NVP-2068US
Model Vision ZS 9NVP-2068USPart no. VISION ZS 9NVP-2068USEAN 824142458280
63 specifications
- ProcessorAMD Ryzen™ 7
- Memory32 GB
- Storage2 TB
- GraphicsNVIDIA GeForce RTX 5070
- SpeedWi-Fi 6E (802.11ax)
- TypePC
Overview
- Processor
- AMD Ryzen™ 7
- Memory
- 32 GB
- Storage
- 2 TB
- Graphics
- NVIDIA GeForce RTX 5070
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- Vision ZS 9NVP-2068US
- Part number
- VISION ZS 9NVP-2068US
- EAN / UPC
- 824142458280
- Also known as
- MSI MEG Vision Vision ZS 9NVP-2068US AMD Ryzen™ 7 9800X3D 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5070 Windows 11 Pro Desktop PC Black
Specifications
63 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 9000 Series |
| Processor model | 9800X3D |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.2 GHz |
| Processor frequency | 4.7 GHz |
| Processor cache type | L2 & L3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5070 |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon |
| On-board graphics card cores | 2 |
| Graphics card DisplayPorts quantity | 1 |
| Graphics card HDMI ports quantity | 3 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD B840 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Realtek 8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 0 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | No |
| Headphone outputs | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 850 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Colour name | Black |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 471.4 mm |
| Depth | 304.8 mm |
| Height | 495.3 mm |
| Weight | 21.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
