PRO MAX EDGE AI+ 11M-003XEU
Model PRO MAX EDGE AI+ 11M-003XEUEAN 4711377473958
72 specifications
- ProcessorAMD Ryzen™ AI Max+
- Memory128 GB
- Storage2 TB
- GraphicsNot available
- SpeedWi-Fi 7 (802.11be)
- TypePC
Overview
- Processor
- AMD Ryzen™ AI Max+
- Memory
- 128 GB
- Storage
- 2 TB
- Graphics
- Not available
- Speed
- Wi-Fi 7 (802.11be)
- Type
- PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- PRO MAX EDGE AI+ 11M-003XEU
- Part number
- PRO MAX EDGE AI+ 11M-003XEU
- EAN / UPC
- 4711377473958
- Also known as
- MSI Pro MAX EDGE AI+ 11M-003XEU PC/workstation AMD Ryzen™ AI Max+ 395 128 GB LPDDR5x-SDRAM 2 TB SSD Mini PC Black
Specifications
72 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ AI Max+ |
| Processor generation | AMD Ryzen AI Max 300 Series |
| Processor model | 395 |
| Processor cores | 16 |
| Processor threads | 32 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 3 GHz |
| Processor cache | 64 MB |
| Processor cache type | L2 & L3 |
| Number of processors installed | 1 |
| Processor socket | FP11 |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | AMD Ryzen AI |
| Total processor performance up to | 126 TOPs |
| NPU performance up to | 50 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory layout (slots x size) | 8 x 16 GB |
| Memory clock speed | 8000 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Storage media | SSD |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 8060S |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD SoC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | MediaTek |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

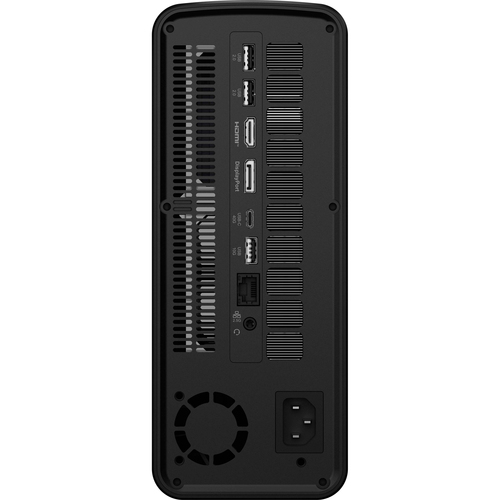

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 4 L |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 356 mm |
| Depth | 163 mm |
| Height | 272 mm |
| Weight | 2.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 163 mm |
| Package depth | 356 mm |
| Package height | 275 mm |
| Package weight | 4.26 kg |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
