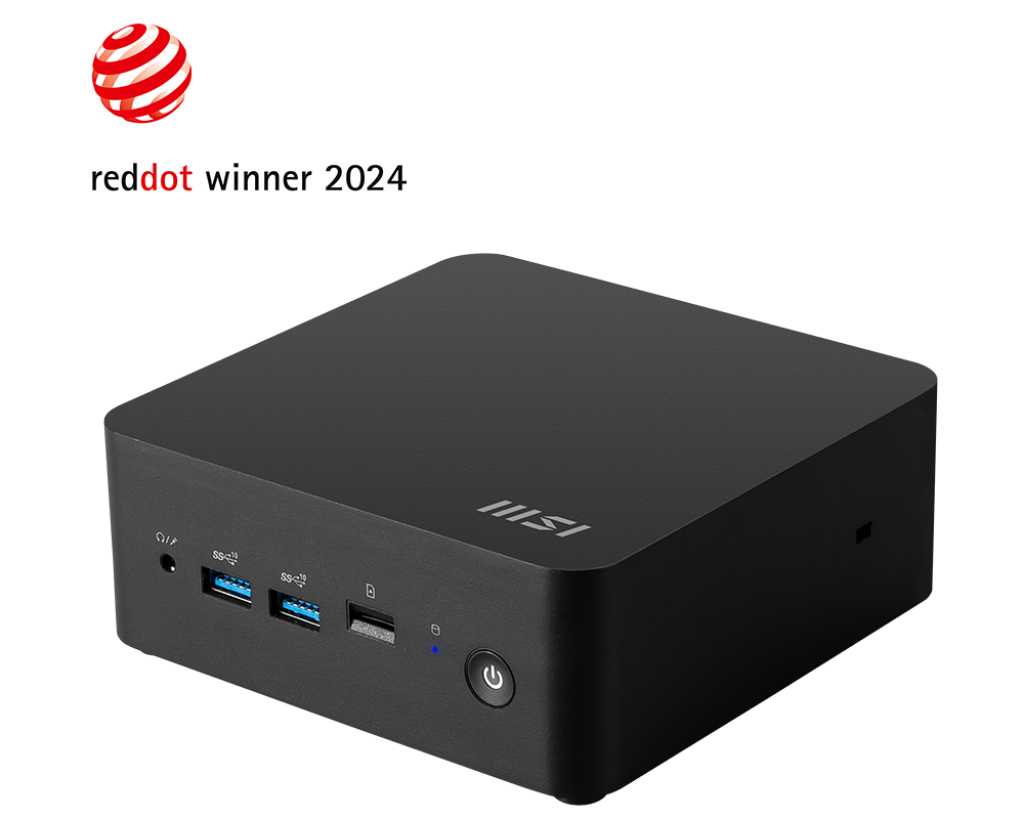

NUC 1M
Model NUC 1MPart no. 00-B0B111-214EAN 4711377272964
92 specifications
- ProcessorIntel Core 7
- Memory16 GB
- Storage1 TB
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
- OSWindows 11 Pro
Overview
- Processor
- Intel Core 7
- Memory
- 16 GB
- Storage
- 1 TB
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- OS
- Windows 11 Pro
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- NUC 1M
- Part numbers
- 00-B0B111-214, 00-B0B111-215, 00-B0B111-034
- EAN / UPC
- 4711377272964, 4711377272988
- Also known as
- MSI Cubi NUC 1M Intel Core 7 150U 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black
Specifications
92 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core 7 |
| Processor model | 150U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 5.4 GHz |
| Processor frequency | 1.8 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Performance-core base frequency | 1.8 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 55 W |
| Processor base power | 15 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| HDD size | 2.5" |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
| Powered by | MSI |
| Motherboard chipset | Intel SoC |
| Motherboard form factor | NUC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 2.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Number of front USB ports | 2 |
| Number of front audio ports | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Housing material | Plastic |
| Viewing window | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC256 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135.6 mm |
| Depth | 132.5 mm |
| Height | 50.1 mm |
| Weight | 625 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.45 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| Cables included | AC, Power |
| VESA mount included | Yes |
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
