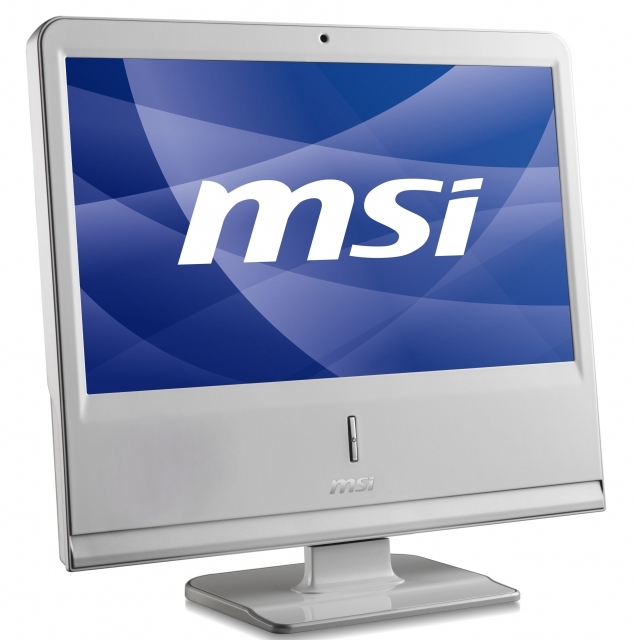

MSI NetOn AP1900
Model NetOn AP1900Part no. NETON AP1900-01EU
98 specifications
- Display47 cm (18.5")
- ProcessorIntel Pentium Mobile
- Memory1 GB
- Storage160 GB
- GraphicsIntel® GMA 950
- TypePC
Overview
- Display
- 47 cm (18.5")
- Processor
- Intel Pentium Mobile
- Memory
- 1 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 950
- Type
- PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- NetOn AP1900
- Part numbers
- NETON AP1900-01EU, NETON AP1900-01EUW, NETON AP1900-01EU_W, 006633SKU2, 006633SKU1, NETONAP190001EUW +2 more
- Also known as
- MSI NetOn AP1900 Intel Pentium Mobile N270 1 GB DDR2-SDRAM 160 GB Intel® GMA 950 Windows XP Home Edition Desktop PC White
Specifications
98 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium Mobile |
| Processor model | N270 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 32-bit |
| Processor series | Intel Atom N200 Series |
| Processor codename | Diamondville |
| Thermal Design Power (TDP) | 2.5 W |
| Tjunction | 90 °C |
| Number of processors installed | 1 |
| Processor socket | Socket F (1207) |
| Number of Processing Die Transistors | 47 M |
| Processing Die size | 26 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| Stepping | C0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 1 x 1 GB |
| Memory clock speed | 533 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD±RW |
| Number of HDDs installed | 1 |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, xD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 950 |
| Maximum graphics card memory | 0.228 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet, WLAN |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Home Edition |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 47 cm (18.5") |
| Display | TFT |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | No |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 36331 |
| Processor code | SLB73 |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 550 mm |
| Depth | 420 mm |
| Height | 35 mm |
| Weight | 4.75 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | - FCC, CFR47 Part 15, Class B - CE, EN55022 & EN55024 |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | Yes |
