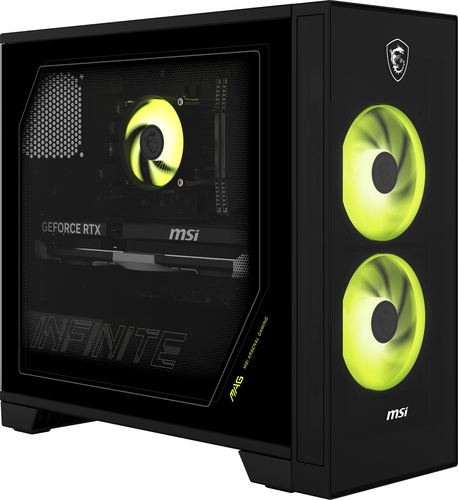

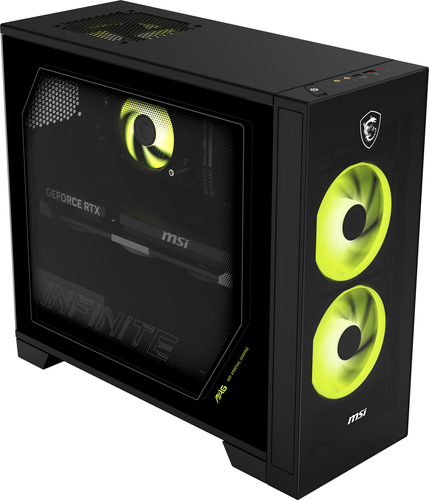

MAG Infinite Z 8B 9NVPR7-069EU
Model MAG Infinite Z 8B 9NVPR7-069EUPart no. MAG INFINITE Z 8B 9NVPR7-069EUEAN 4711377470049
70 specifications
- ProcessorAMD Ryzen™ 7
- Memory16 GB
- Storage1 TB
- GraphicsNVIDIA GeForce RTX 5070
- SpeedWi-Fi 6E (802.11ax)
- TypePC
Overview
- Processor
- AMD Ryzen™ 7
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- NVIDIA GeForce RTX 5070
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- MAG Infinite Z 8B 9NVPR7-069EU
- Part number
- MAG INFINITE Z 8B 9NVPR7-069EU
- EAN / UPC
- 4711377470049
- Also known as
- MSI MAG Infinite Z 8B 9NVPR7-069EU AMD Ryzen™ 7 9700X 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Windows 11 Home Desktop PC Black
Specifications
70 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 9000 Series |
| Processor model | 9700X |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.5 GHz |
| Processor frequency | 3.8 GHz |
| Processor cache type | L2 & L3 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total HDDs capacity | 0 GB |
| HDD capacity | 0 GB |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5070 |
| Discrete graphics card memory | 12 GB |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon Graphics |
| On-board graphics card model | AMD Radeon Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | AMD B840 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | AMD |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | AMD RZ616 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPort version | 2.1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Volume | 25 L |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 447.4 mm |
| Height | 399.6 mm |
| Weight | 8.21 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 586 mm |
| Package depth | 323 mm |
| Package height | 511 mm |
| Package weight | 10.4 kg |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
