III Plus 9A55-i5N23
Model III Plus 9A55-i5N23Part no. 009A55-100REAN 4719072264048
148 specifications
- ProcessorIntel® Core™ i5
- Memory2 GB
- Storage320 GB
- GraphicsNot available
- SpeedWi-Fi 4 (802.11n)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 2 GB
- Storage
- 320 GB
- Graphics
- Not available
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Mini PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- III Plus 9A55-i5N23
- Part number
- 009A55-100R
- EAN / UPC
- 4719072264048
- Also known as
- MSI Wind Box III Plus 9A55-i5N23 Intel® Core™ i5 i5-3337U 2 GB DDR3-SDRAM 320 GB HDD USFF Mini PC Black
Specifications
148 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 3rd gen Intel® Core™ i5 |
| Processor model | i5-3337U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.7 GHz |
| Processor frequency | 1.8 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-3300 Mobile series |
| Processor codename | Ivy Bridge |
| Thermal Design Power (TDP) | 17 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1023 |
| CPU multiplier (bus/core ratio) | 18 |
| Stepping | L1 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM, DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 1333 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Optical drive type | No |
| Storage media | HDD |
| Number of HDDs supported | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 320 GB |
| HDD interface | SATA III |
| HDD size | 2.5" |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4000 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card ID | 0x166 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel HM76 Express |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |

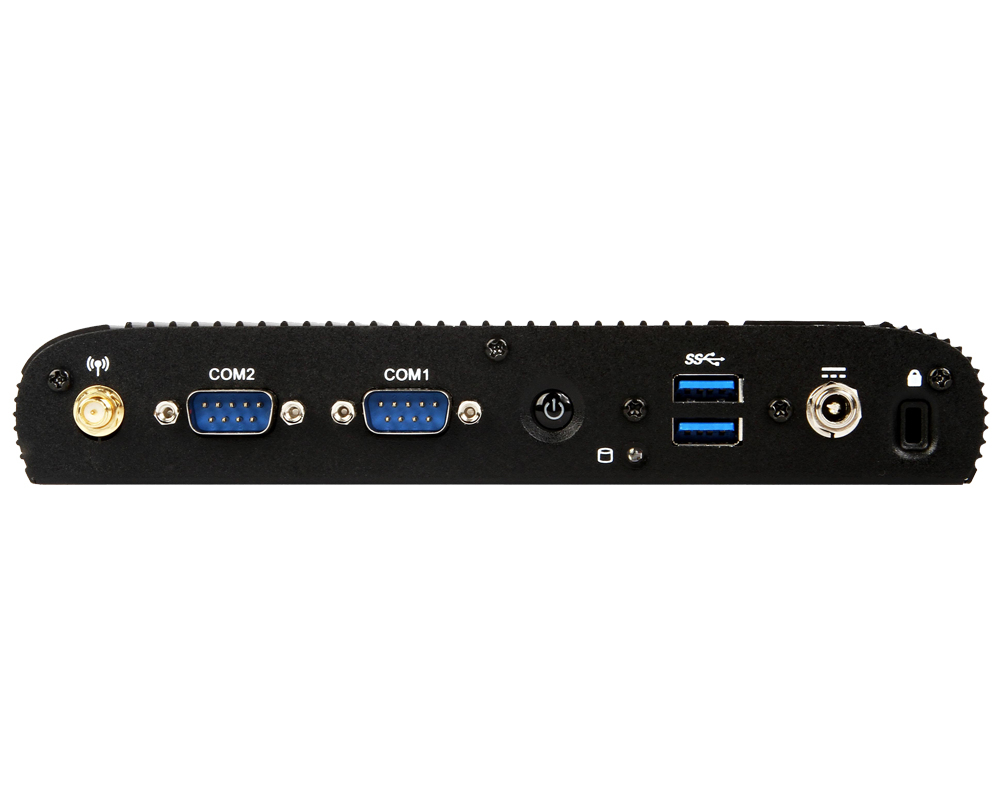

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | No |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 0 |
| S/PDIF out port | No |
| DC-in jack | Yes |
| SmartCard slot | No |
| Serial ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 220 V |
| Power consumption (standby) | 3 W |
| Power consumption (typical) | 20 W |
Design
| Specification | Value |
|---|---|
| Chassis type | USFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cooling type | Passive |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 72055 |
| Processor code | SR0XL |
| Processor package size | 31 x 24 (BGA1023) |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Conflict-Free processor | Yes |
| Integrated 4G WiMAX | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC886 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 285 mm |
| Depth | 196 mm |
| Height | 33 mm |
| Weight | 1.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| Cables included | AC |
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE, BSMI, C-Tick, VCCI, TUV, CB, UL |
