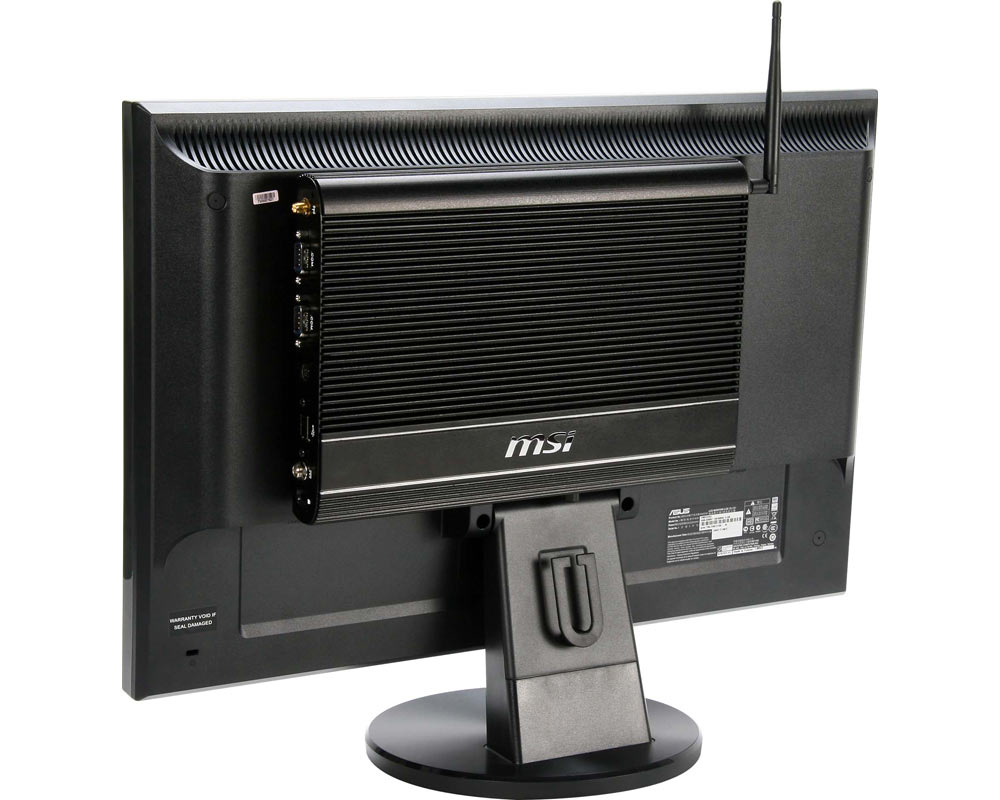

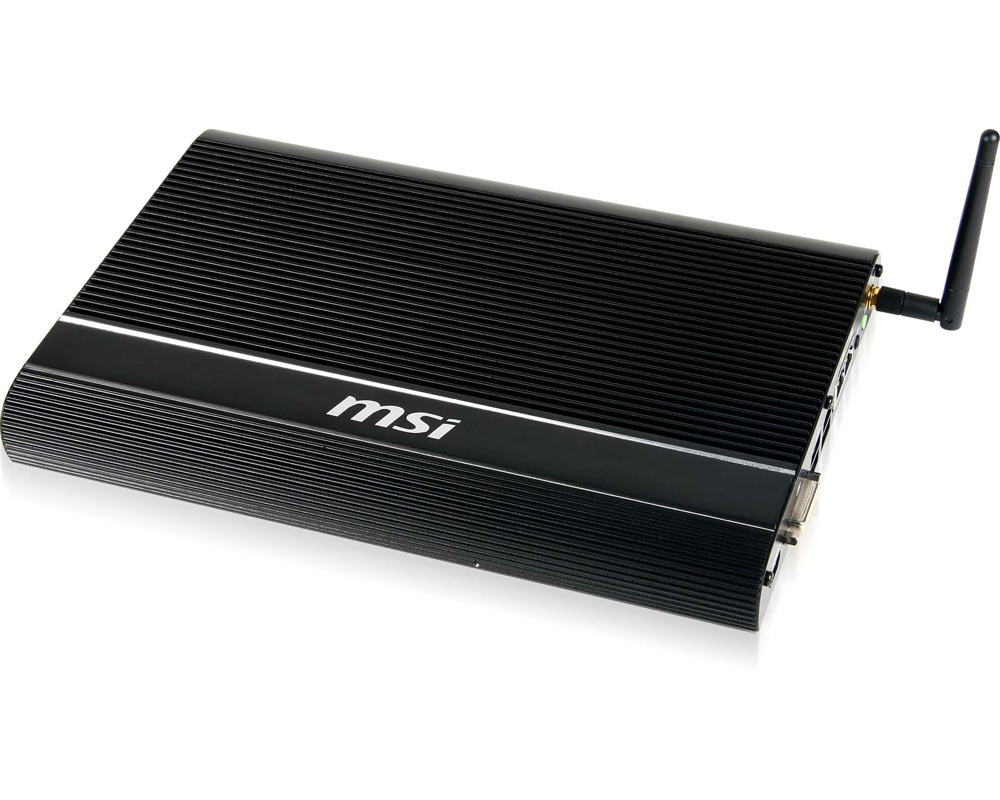

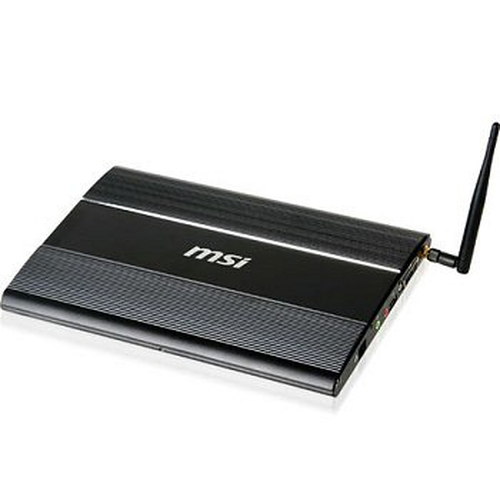

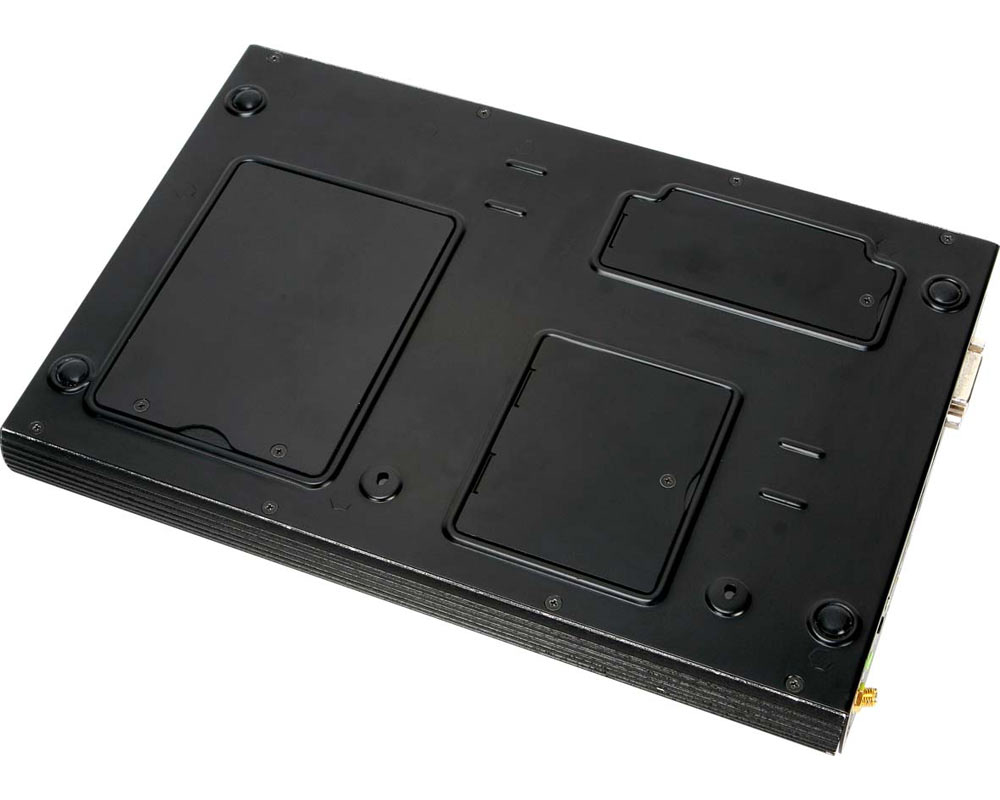

MSI III Plus 9A55-C823

Model III Plus 9A55-C823Part no. 009A55-010R

119 specifications

Overview

Brand: MSI
Category: PCs/Workstations
Model: III Plus 9A55-C823
Part number: 009A55-010R
Also known as: MSI Wind Box III Plus 9A55-C823 Intel® Celeron® 827E 2 GB DDR3-SDRAM 320 GB Small Desktop Mini PC Black

119 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	827E
Processor cores	1
Processor threads	1
Processor frequency	1.4 GHz
Processor cache	1.5 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor 800 Series for Mobile
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	17 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1023
CPU multiplier (bus/core ratio)	14
Stepping	Q0
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
ECC supported by processor	Yes

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	800 MHz
Graphics card family	Intel

Specification	Value
Optical drives quantity	0

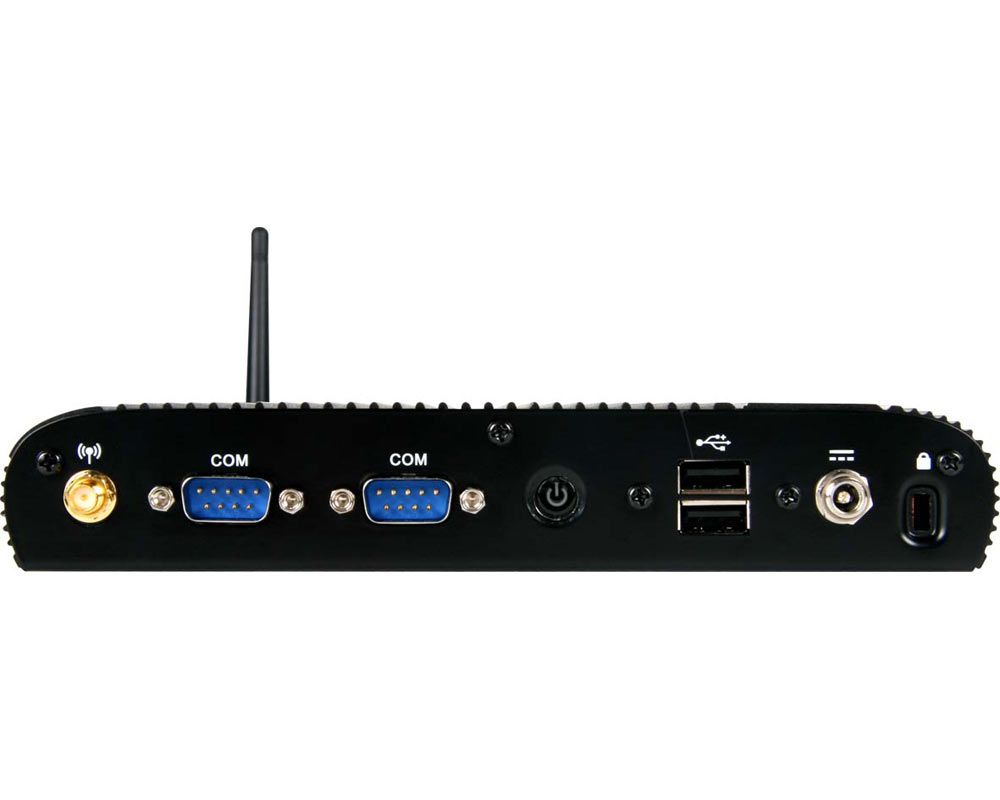

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
Parallel ports quantity	0

Specification	Value
Chassis type	Small Desktop
Product colour	Black

Specification	Value
Operating system installed	No

Specification	Value
Display included	No

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	No
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	55770
Processor code	SR0C6
Processor package size	31 x 24 (FCBGA1023)
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
Integrated 4G WiMAX	No

Specification	Value
Audio system direct sound	ALC888

Specification	Value
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	32 - 140 °F
