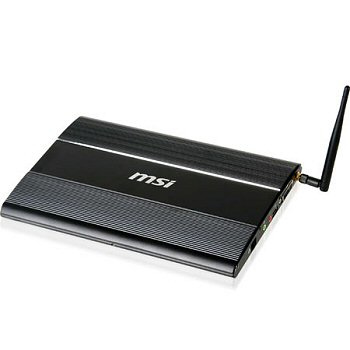

MSI II Plus 9A45-D2523

Model II Plus 9A45-D2523Part no. 009A45-030REAN 4719072257279

121 specifications

ProcessorIntel Atom®
Memory2 GB
Storage320 GB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypePC

See all specifications

Overview

Processor: Intel Atom®
Memory: 2 GB
Storage: 320 GB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: PC

Brand: MSI
Category: PCs/Workstations
Model: II Plus 9A45-D2523
Part number: 009A45-030R
EAN / UPC: 4719072257279
Also known as: MSI Wind Box II Plus 9A45-D2523 Intel Atom® D2550 2 GB DDR3-SDRAM 320 GB HDD USFF PC Black

Specifications

121 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2550
Processor cores	2
Processor threads	4
Processor frequency	1.86 GHz
Processor cache	1 MB
Processor cache type	L2
Bus type	DMI
FSB Parity	No
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Atom D2500 Series
Processor codename	Cedarview
Thermal Design Power (TDP)	10 W
Tjunction	100 C
Maximum number of PCI Express lanes	4
Number of processors installed	1
Processor socket	BGA 559
Stepping	B3
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	6.4 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x SO-DIMM
Memory clock speed	1066 MHz
Memory channels	Single-channel

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	No
Storage media	HDD
Number of HDDs supported	1
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA II
HDD size	2.5"
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Integrated
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	640 MHz

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel NM10

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

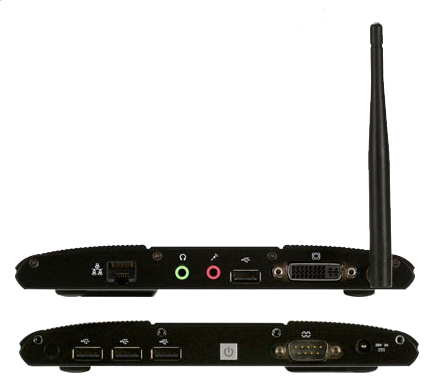

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	0
Serial ports quantity	1

Expansion slots

Specification	Value
Mini PCI Express slots	2

Design

Specification	Value
Chassis type	USFF
Product colour	Black
Cooling type	Passive

Software

Specification	Value
Operating system installed	No

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	65470
Processor code	SR0VY
Processor package size	22 X 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtek ALC886

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions

Specification	Value
Width	255 mm
Depth	180 mm
Height	19 mm
Weight	1.08 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Certificates

Specification	Value
Certification	FCC, CE, BSMI, C-Tick, VCCI, TUV, CB, UL
