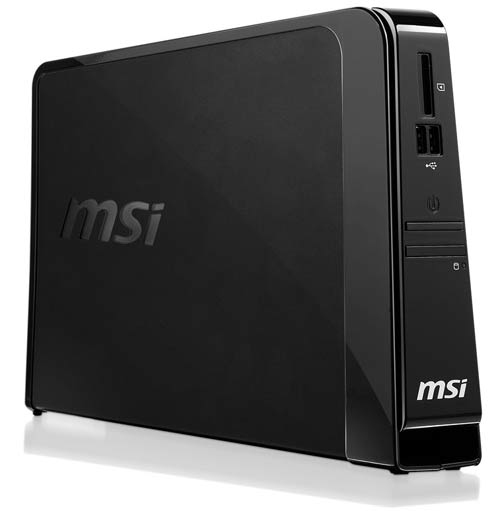

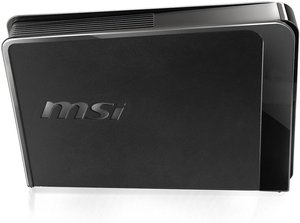

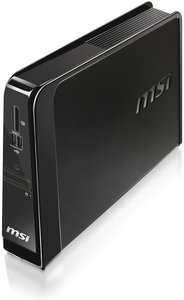

DE220-5123 Intel Atom® D510
2 GB DDR2-SDRAM 320 GB AMD Radeon HD 4330 Windows 7 Professional Desktop PC Black
Model DE220-5123Part no. 006668-SKU2P
114 specifications
- ProcessorIntel Atom®
- Memory2 GB
- Storage320 GB
- GraphicsAMD Radeon HD 4330
- TypePC
- OSWindows 7 Professional
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 320 GB
- Graphics
- AMD Radeon HD 4330
- Type
- PC
- OS
- Windows 7 Professional
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- DE220-5123
- Part number
- 006668-SKU2P
- Also known as
- MSI DE220-5123 Intel Atom® D510 2 GB DDR2-SDRAM 320 GB AMD Radeon HD 4330 Windows 7 Professional Desktop PC Black
Specifications
114 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D510 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.66 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Bus type | DMI |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Atom D500 Series |
| Processor codename | Pineview |
| Thermal Design Power (TDP) | 13 W |
| Tjunction | 100 °C |
| Number of processors installed | 1 |
| Processor socket | BGA 559 |
| Number of Processing Die Transistors | 176 M |
| Processing Die size | 87 mm² |
| Platform | PC |
| Stepping | B0 |
| Maximum internal memory supported by processor | 4 GB |
| Memory types supported by processor | DDR2 667/800 |
| Memory bandwidth supported by processor (max) | 6.4 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 1 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Single-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Optical drive type | No |
| Number of HDDs installed | 1 |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), miniSD, MMC, SD, xD |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | AMD Radeon HD 4330 |
| On-board graphics card model | Integrated |
| Maximum graphics card memory | 0.256 GB |
| Graphics card family | AMD |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 1 |
| S/PDIF out port | Yes |
| DC-in jack | Yes |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Power requirements | 19 V |
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Processor ARK ID | 43098 |
| Processor code | SLBLA |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 40.4 mm |
| Depth | 283 mm |
| Height | 178 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
