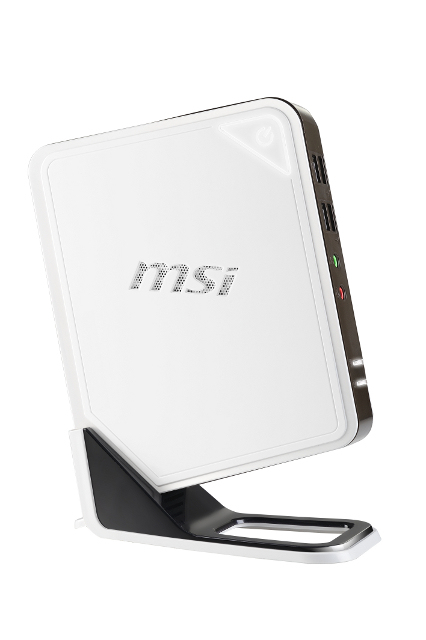

Wind Box DC110-WC8472G32X7V Intel® Celeron® 847

2 GB DDR3-SDRAM 320 GB HDD Windows 7 Professional Desktop Mini PC White

Model DC110-WC8472G32X7VPart no. 00B062-SKU1PEAN 4719072286088

121 specifications

Overview

Brand: MSI
Category: PCs/Workstations
Model: DC110-WC8472G32X7V
Part number: 00B062-SKU1P
EAN / UPC: 4719072286088
Also known as: MSI Wind Box DC110-WC8472G32X7V Intel® Celeron® 847 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Professional Desktop Mini PC White

121 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	847
Processor cores	2
Processor threads	2
Processor frequency	1.1 GHz
Processor cache	2 MB
Processor cache type	L3
Bus type	DMI
FSB Parity	No
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor 800 Series for Mobile
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	17 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1023
CPU multiplier (bus/core ratio)	11
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	800 MHz

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® NM70 Express

Specification	Value
Optical drives quantity	0

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
S/PDIF out port	Yes

Specification	Value
Power supply	40 W

Specification	Value
Chassis type	Desktop
Product colour	White

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	56056
Processor package size	31.0 x 24.0 (BGA1023)
Supported instruction sets	SSE4.x
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
