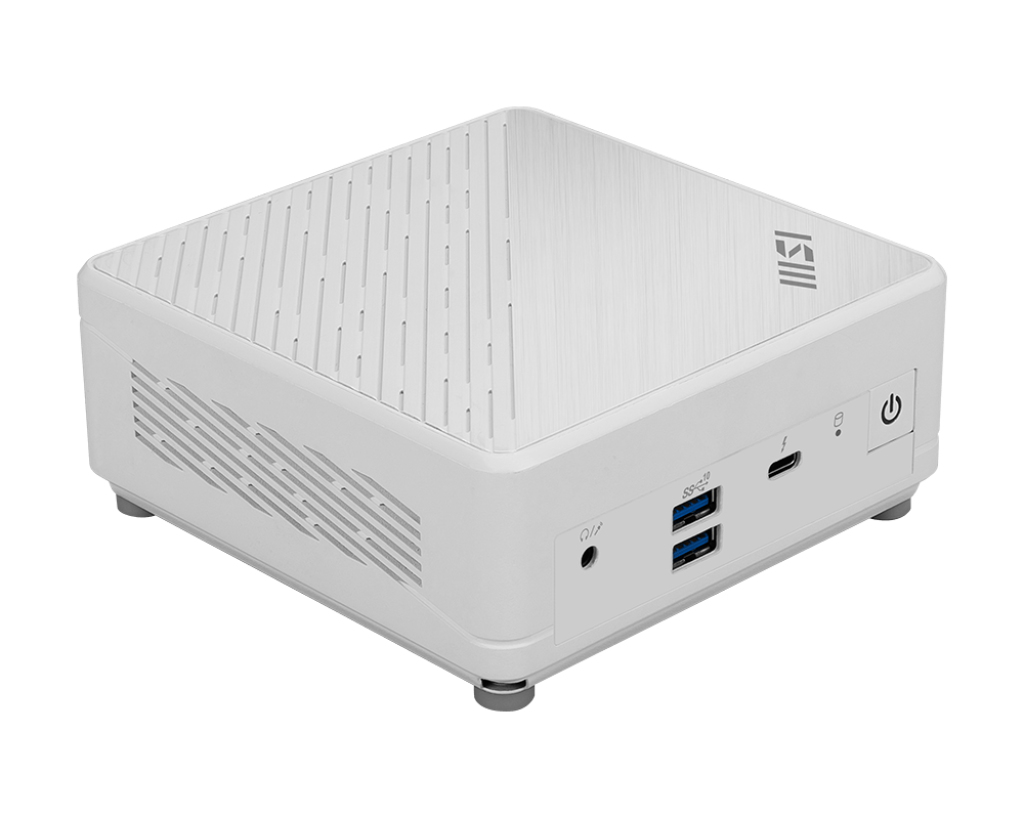

Cubi 5 12M
Model Cubi 5 12MPart no. 0B0A811-092EAN 4711377104326
65 specifications
- ProcessorIntel® Core™ i3
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC barebone
- OSWindows 11 Home
- Weight590 g
Overview
- Processor
- Intel® Core™ i3
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
- OS
- Windows 11 Home
- Weight
- 590 g
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- Cubi 5 12M
- Part number
- 0B0A811-092
- EAN / UPC
- 4711377104326
- Also known as
- MSI Cubi 5 12M Intel® Core™ i3 i3-1215U DDR4-SDRAM Windows 11 Home Mini PC Mini PC barebone Black
Specifications
65 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 12th gen Intel® Core™ i3 |
| Processor model | i3-1215U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor frequency | 1.2 GHz |
| Processor cache | 10 MB |
| Thermal Design Power (TDP) | 15 W |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC barebone |
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Cooling type | Passive |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
Display
| Specification | Value |
|---|---|
| Display included | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 124 mm |
| Height | 53.7 mm |
| Weight | 590 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.33 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) |
