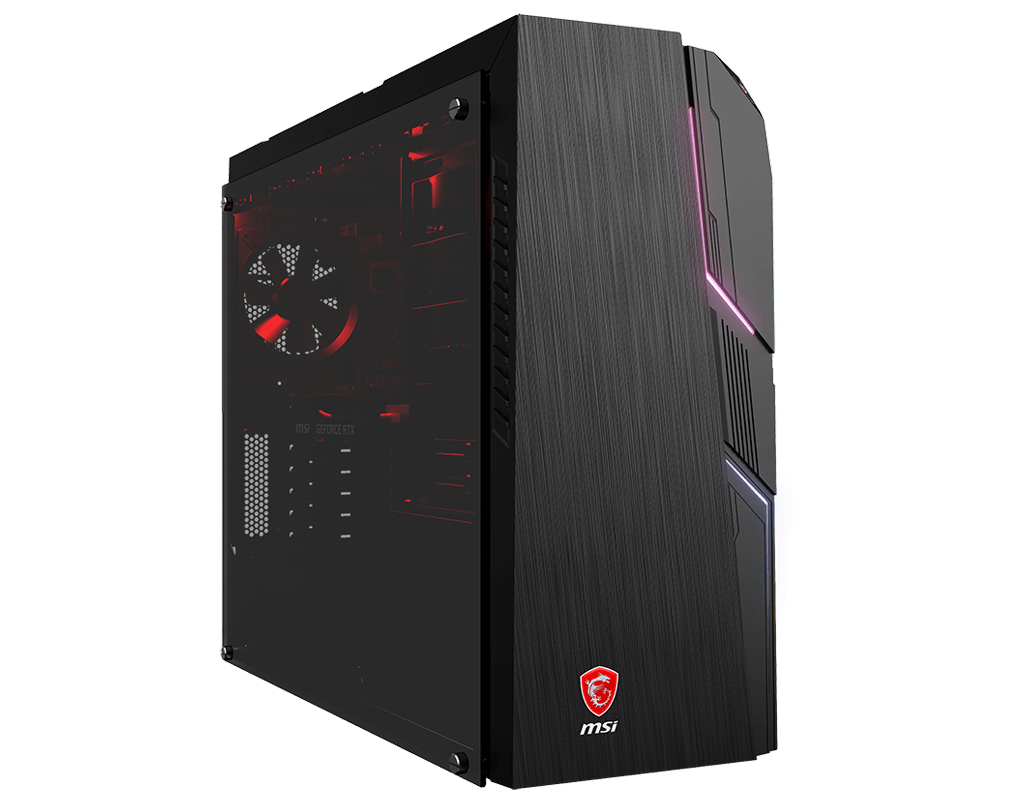

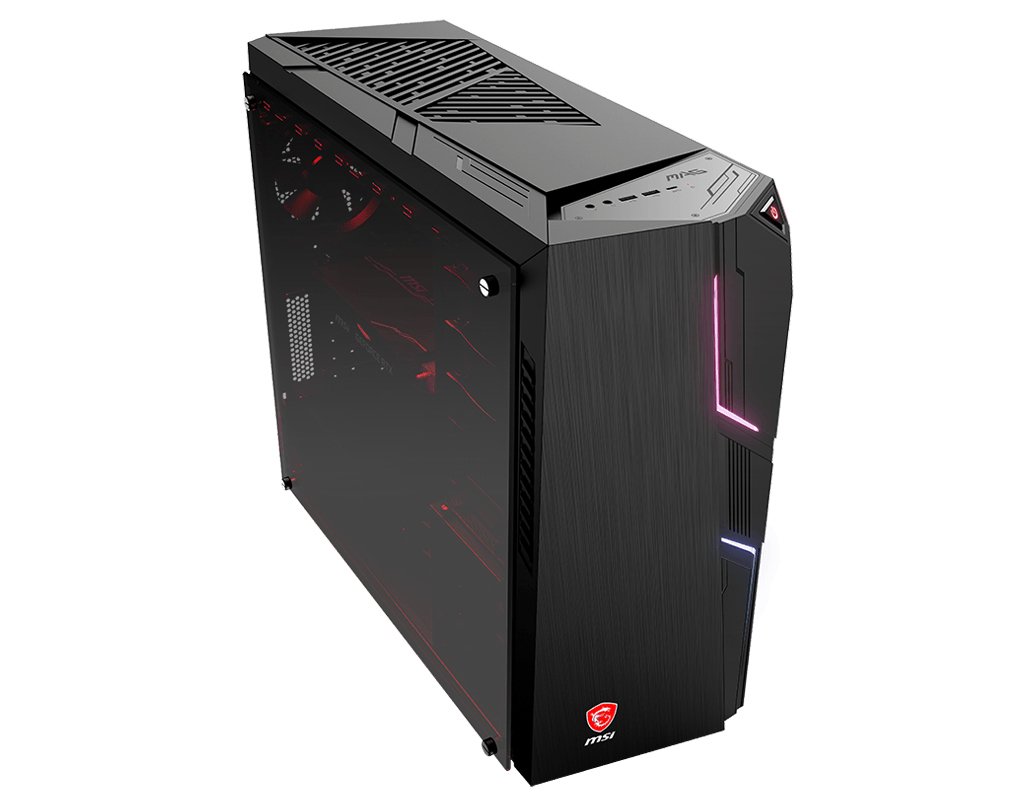

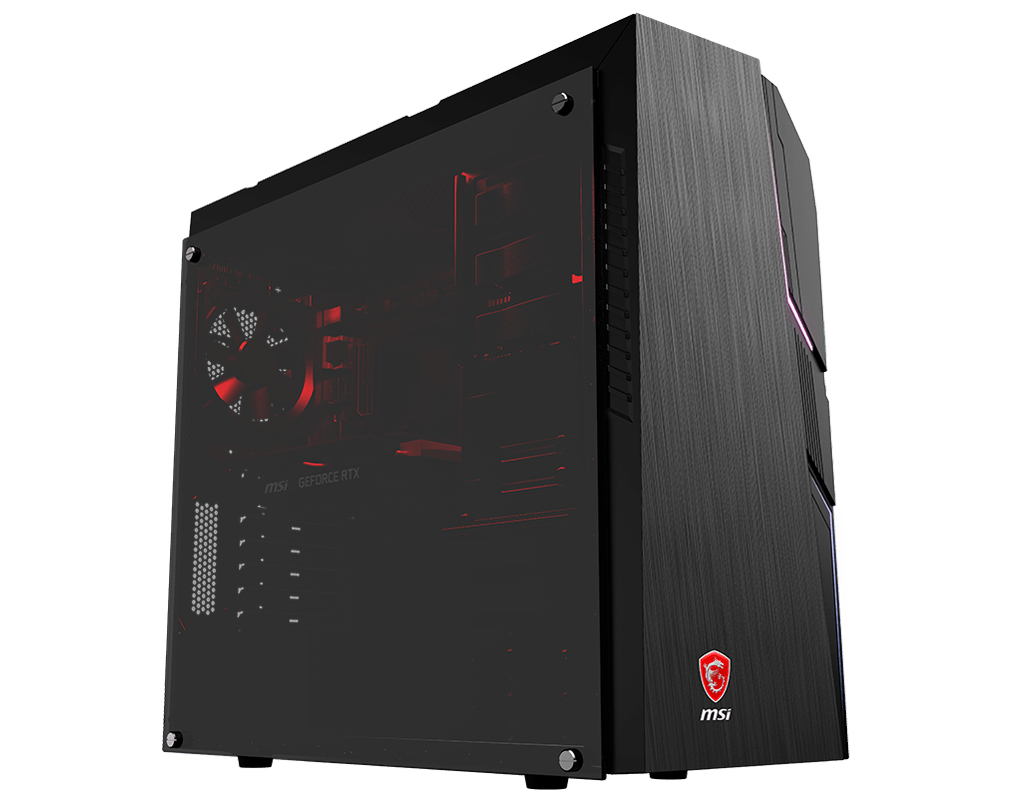

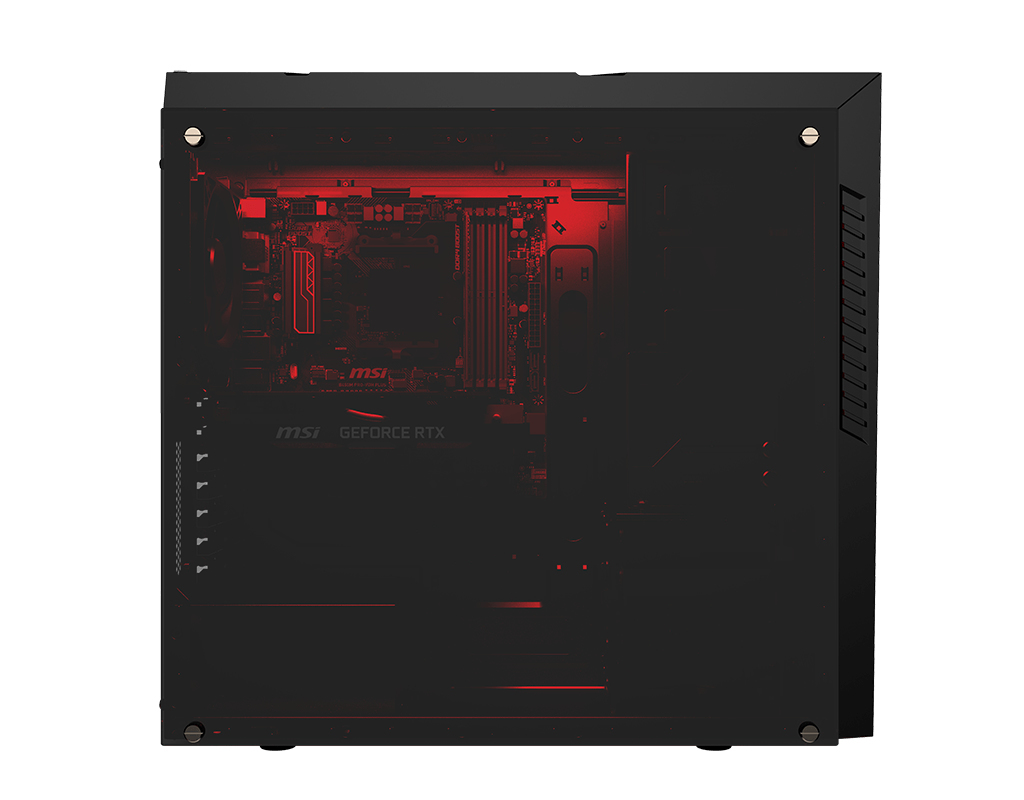

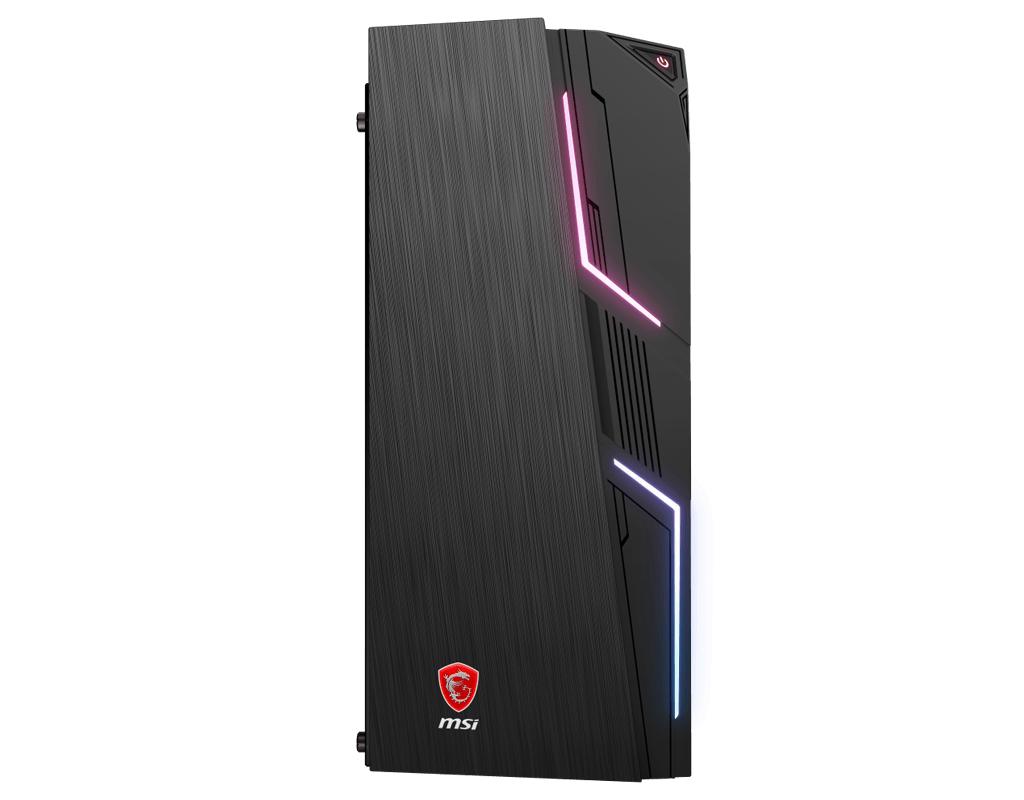

Codex 5 9SI-013AU
Model Codex 5 9SI-013AUPart no. CODEX 5 9SI-013AU
68 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage1.51 TB
- GraphicsNVIDIA GeForce GTX 1660 SUPER
- TypePC
- OSWindows 10 Home
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 1.51 TB
- Graphics
- NVIDIA GeForce GTX 1660 SUPER
- Type
- PC
- OS
- Windows 10 Home
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- Codex 5 9SI-013AU
- Part number
- CODEX 5 9SI-013AU
- Also known as
- MSI Codex 5 9SI-013AU Intel® Core™ i7 i7-9700F 16 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA GeForce GTX 1660 SUPER Windows 10 Home Desktop PC Black
Specifications
68 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 9th gen Intel® Core™ i7 |
| Processor model | i7-9700F |
| Processor cores | 8 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.51 TB |
| Optical drive type | No |
| Storage media | HDD+SSD |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA GeForce GTX 1660 SUPER |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DVI port | No |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC887 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 195 mm |
| Depth | 514.8 mm |
| Height | 466 mm |
| Weight | 9.42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 14.1 kg |
