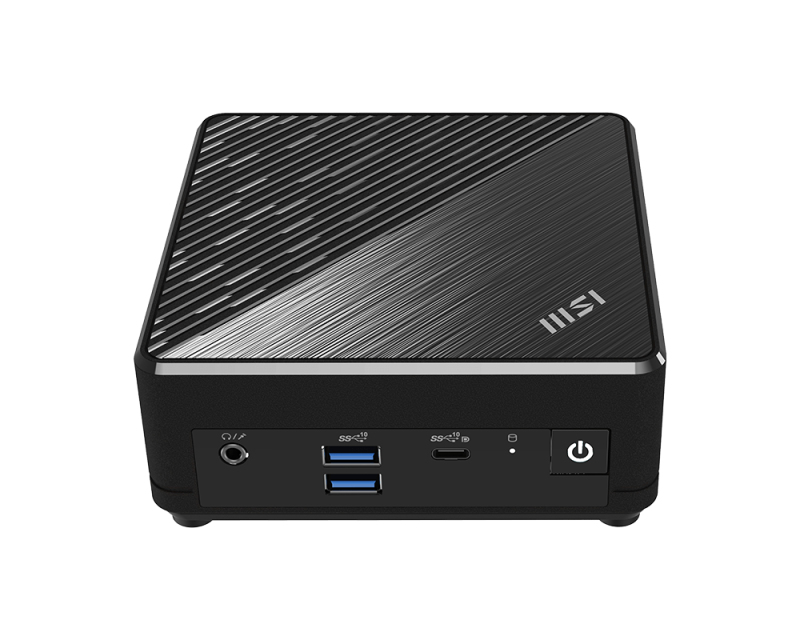

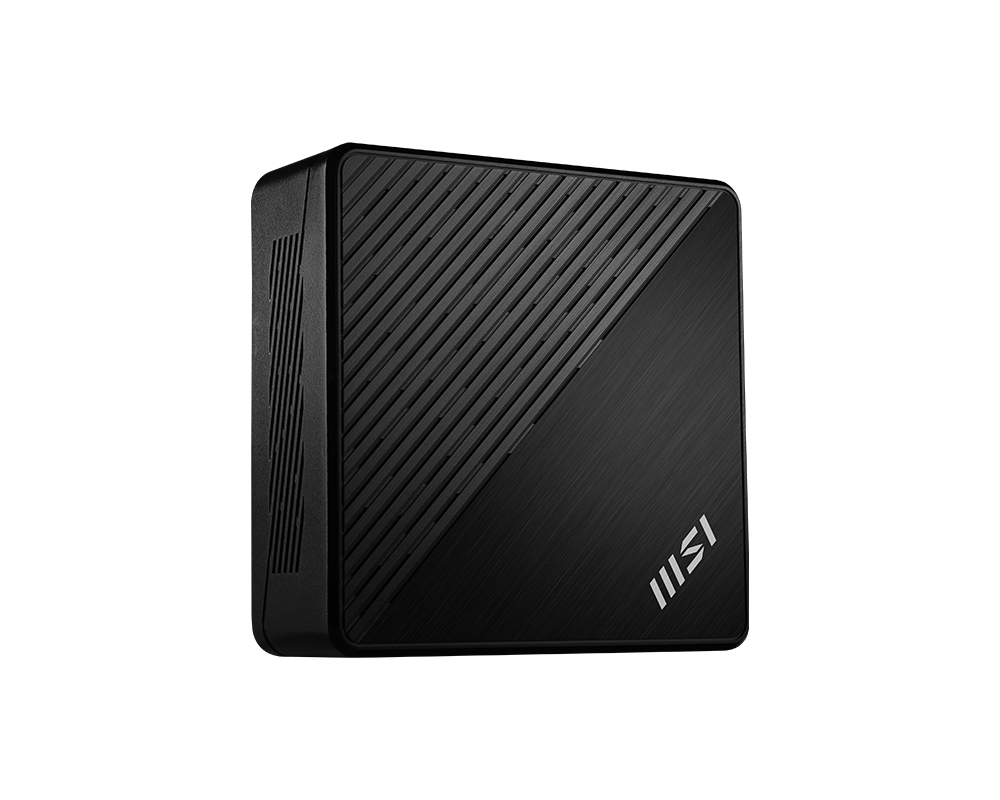

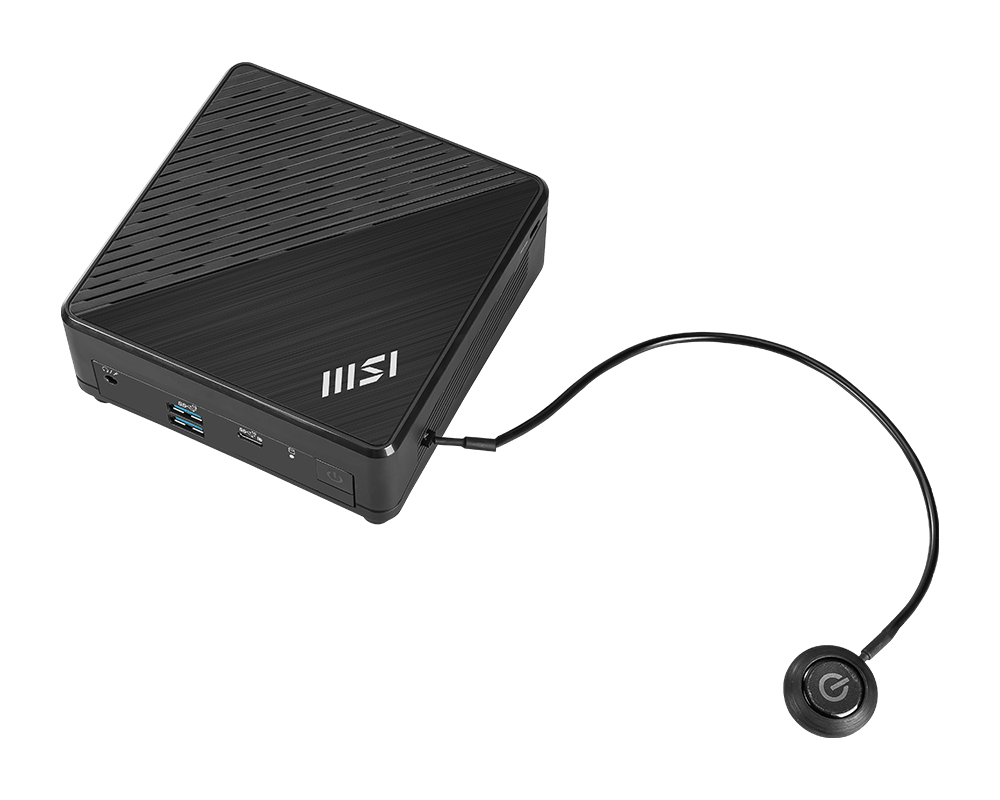

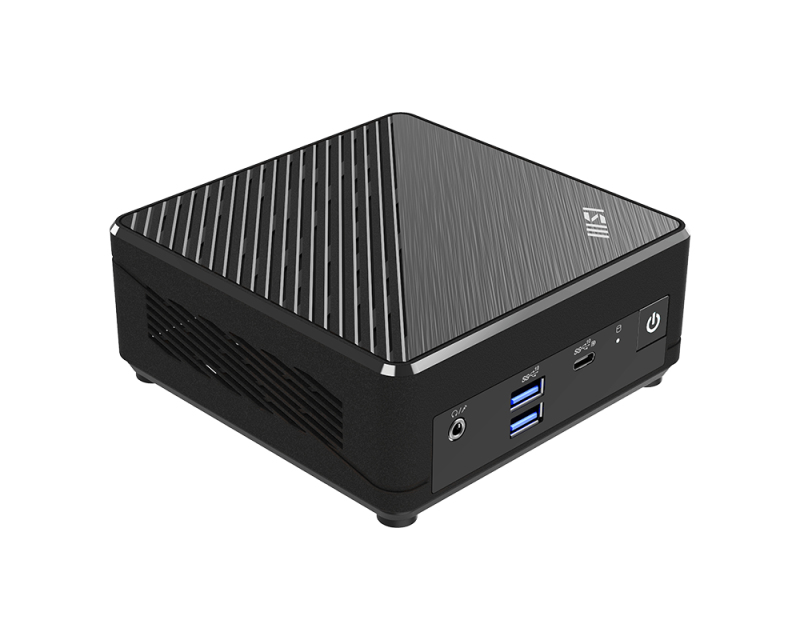

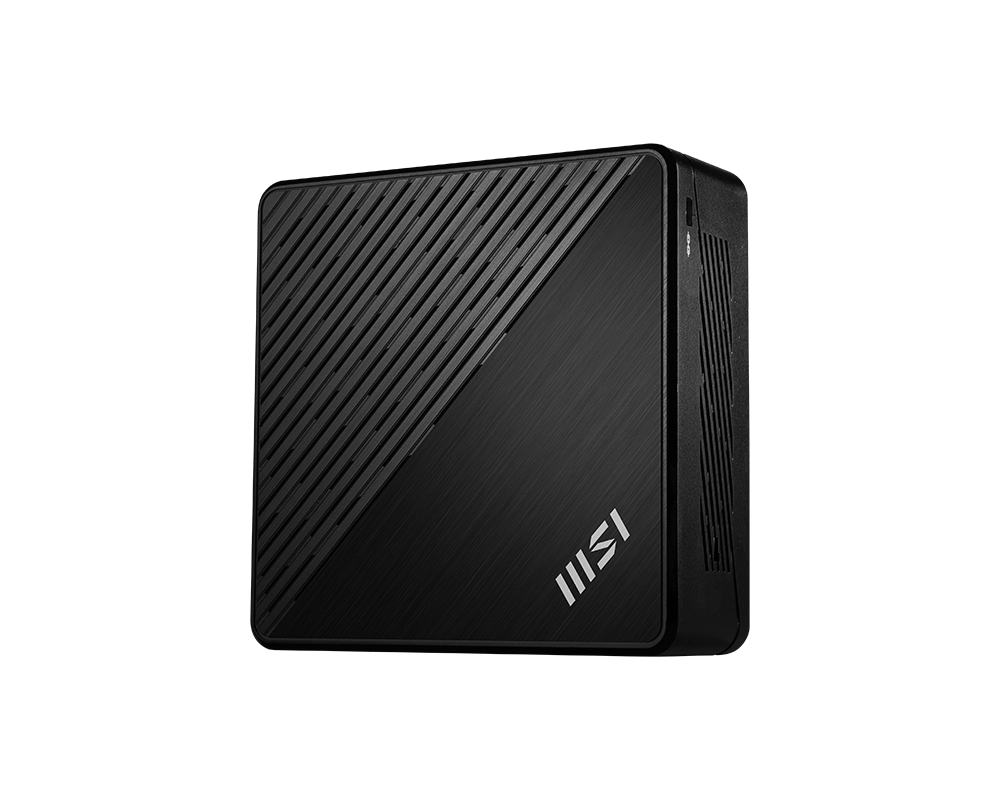

Cubi ADL-020BUS Intel Pentium N N100 DDR4-SDRAM Mini PC Workstation Black
Model ADL-020BUSPart no. CUBINADL020BEAN 824142320525
63 specifications
- ProcessorIntel Pentium N
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeWorkstation
- OSNo
- Weight453 g
Overview
- Processor
- Intel Pentium N
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Workstation
- OS
- No
- Weight
- 453 g
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- ADL-020BUS
- Part number
- CUBINADL020B
- EAN / UPC
- 824142320525
- Also known as
- MSI Cubi ADL-020BUS Intel Pentium N N100 DDR4-SDRAM Mini PC Workstation Black
Specifications
63 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium N |
| Processor model | N100 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 3.4 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 6 W |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Optical drive type | No |
| Number of storage drives supported | 2 |
| HDD interface | SATA |
| SSD interface | M.2, PCI Express, SATA |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Business |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| Bluetooth | Yes |

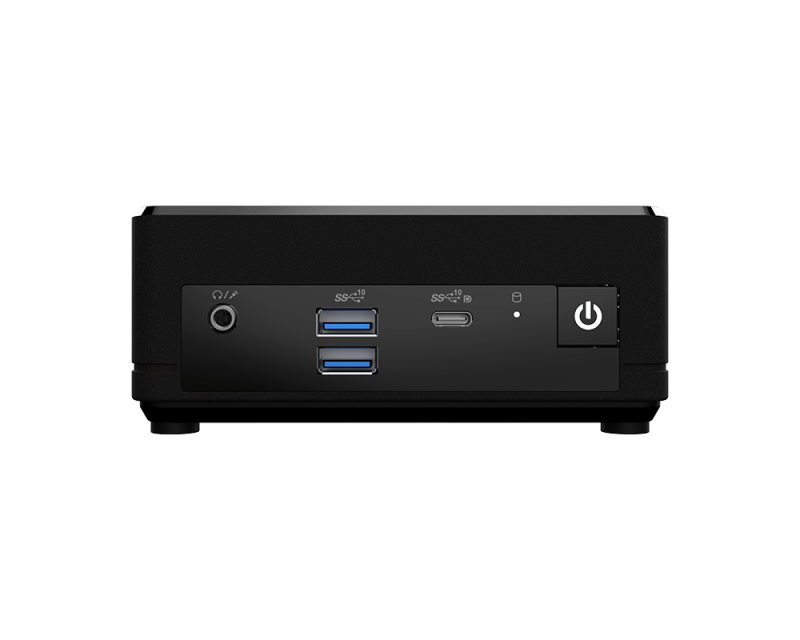

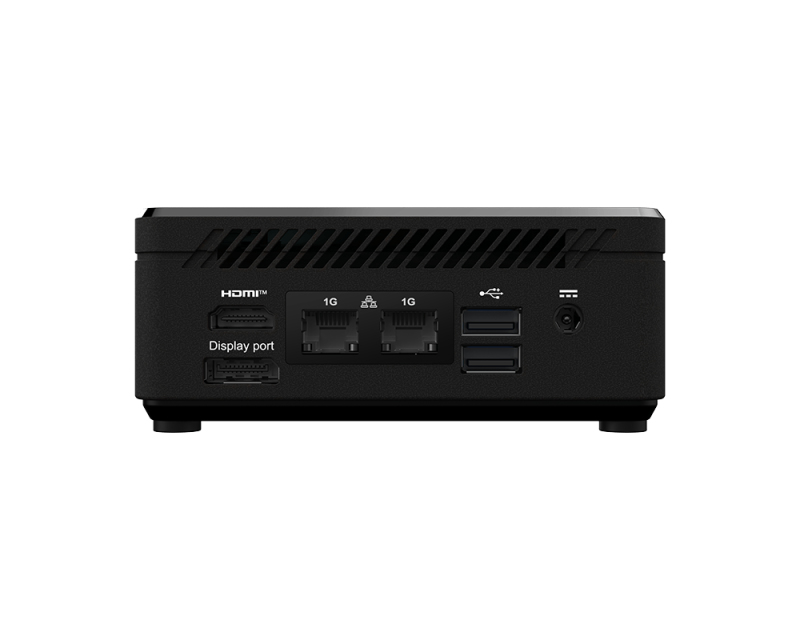

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DVI port | No |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Number of 2.5" bays | 1 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 112 mm |
| Depth | 116 mm |
| Height | 45 mm |
| Weight | 453 g |
