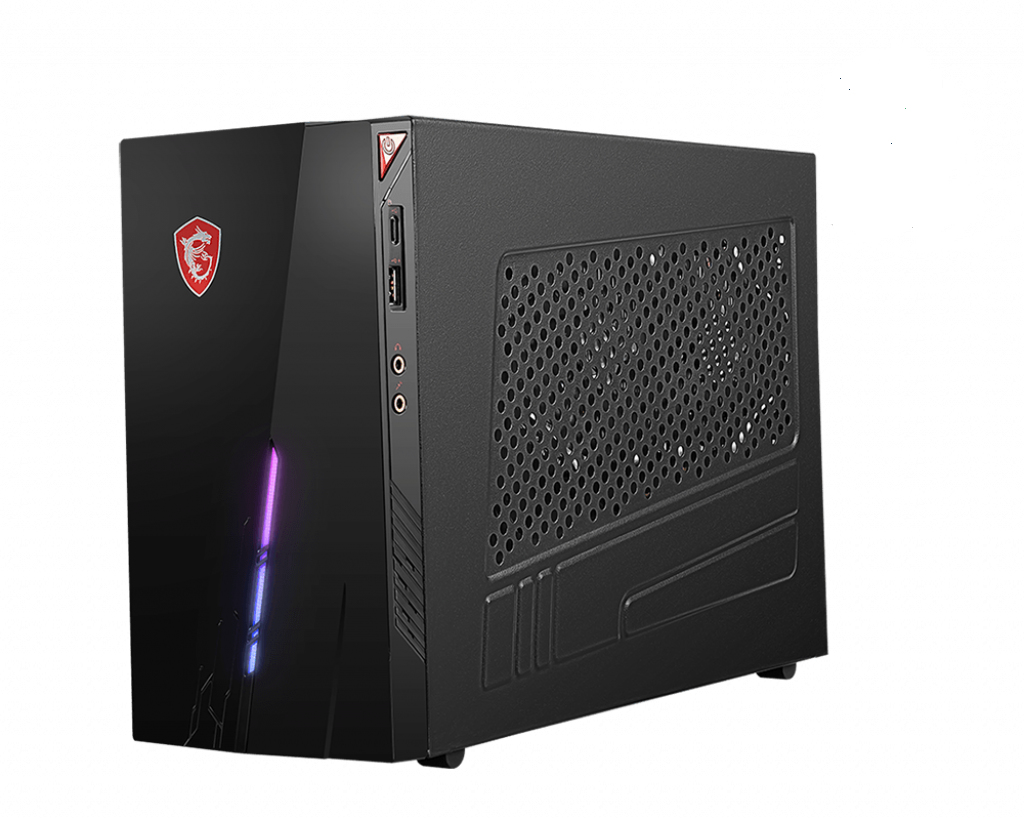

Infinite 9SI-080EU-B7970F166T68G1T051X Intel® Core™ i7 i7-9700

8 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA GeForce GTX 1660 Windows 10 Home Desktop PC Black

Model 9SI-080EU-B7970F166T68G1T051XPart no. 9S6-B92811-080EAN 4719072669034

132 specifications

Overview

Brand: MSI
Category: PCs/Workstations
Model: 9SI-080EU-B7970F166T68G1T051X
Part number: 9S6-B92811-080
EAN / UPC: 4719072669034
Also known as: MSI Infinite 9SI-080EU-B7970F166T68G1T051X Intel® Core™ i7 i7-9700 8 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA GeForce GTX 1660 Windows 10 Home Desktop PC Black

132 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	9th gen Intel® Core™ i7
Processor model	i7-9700
Processor cores	8
Processor threads	8
Processor boost frequency	4.7 GHz
Processor frequency	3 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	1.51 TB
Optical drive type	No
Storage media	HDD+SSD
Number of storage drives installed	2
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD size	3.5"
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD form factor	M.2
Card reader integrated	No

Specification	Value
Discrete graphics card	Yes
On-board graphics card	Yes
Discrete graphics card model	NVIDIA GeForce GTX 1660
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E98
On-board graphics card OpenGL version	4.5

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
S/PDIF out port	Yes

Specification	Value
Power supply	350 W
80 PLUS certification	80 PLUS Bronze

Specification	Value
Operating system installed	Windows 10 Home

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	191792
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
