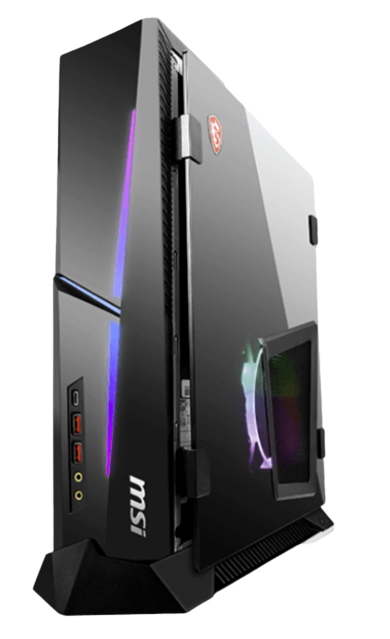

9S6-B92411-408 PC Intel® Core™ i7 i7-12700KF
32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3080 Ti Ventus Desktop Black
Model 9S6-B92411-408EAN 4719072973667
91 specifications
- ProcessorIntel® Core™ i7
- Memory32 GB
- Storage1 TB
- SpeedWi-Fi 6E (802.11ax)
- TypePC
- OSNo
Overview
- Processor
- Intel® Core™ i7
- Memory
- 32 GB
- Storage
- 1 TB
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- OS
- No
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- 9S6-B92411-408
- Part number
- 9S6-B92411-408
- EAN / UPC
- 4719072973667
- Also known as
- MSI 9S6-B92411-408 PC Intel® Core™ i7 i7-12700KF 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3080 Ti Ventus Desktop Black
Specifications
91 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-12700KF |
| Processor cores | 12 |
| Processor threads | 20 |
| Processor frequency | 3.6 GHz |
| Performance cores | 8 |
| Efficient cores | 4 |
| Performance-core base frequency | 3.6 GHz |
| Efficient-core base frequency | 2.7 GHz |
| Performance-core boost frequency | 4.9 GHz |
| Efficient-core boost frequency | 3.8 GHz |
| Processor cache | 25 MB |
| Bus type | DMI4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 2400 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | M.2, NVMe |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 3080 Ti Ventus |
| Discrete graphics card memory | 12 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card model | Not available |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel Z690 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| LAN controller | Intel I225-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 850 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC4080 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 396.6 mm |
| Depth | 127.1 mm |
| Height | 410.4 mm |
| Weight | 7.15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 577 mm |
| Package depth | 193 mm |
| Package height | 504 mm |
| Package weight | 10.2 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
