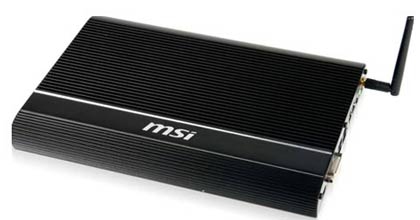

MSI 9A35-7316XPE Intel® Core™2 Duo SU7300

1 GB DDR2-SDRAM 160 GB Intel® GMA 950 FreeDOS Desktop PC Black

Model 9A35-7316XPEPart no. 009A35-010R

111 specifications

ProcessorIntel® Core™2 Duo
Memory1 GB
Storage160 GB
GraphicsIntel® GMA 950
TypePC
OSFreeDOS

See all specifications

Overview

Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 160 GB
Graphics: Intel® GMA 950
Type: PC
OS: FreeDOS

Brand: MSI
Category: PCs/Workstations
Model: 9A35-7316XPE
Part number: 009A35-010R
Also known as: MSI 9A35-7316XPE Intel® Core™2 Duo SU7300 1 GB DDR2-SDRAM 160 GB Intel® GMA 950 FreeDOS Desktop PC Black

Specifications

111 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	SU7300
Processor cores	2
Processor threads	2
Processor frequency	1.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Penryn
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Number of processors installed	1
Processor socket	BGA 956
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 GB
Memory slots	2x SO-DIMM

Storage

Specification	Value
Total storage capacity	160 GB
Optical drive type	No
HDD interface	SATA II
Card reader integrated	No
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 950
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® GS45 Express

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Networking features	Gigabit Ethernet

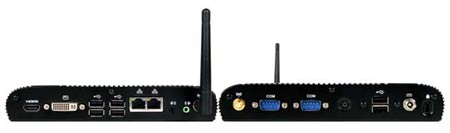

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	2
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
Serial ports quantity	2
Parallel ports quantity	0

Power

Specification	Value
Power supply type	DC
Power requirements	19V
Power supply	90 W

Design

Specification	Value
Chassis type	Desktop
Product colour	Black

Software

Specification	Value
Operating system installed	FreeDOS
Compatible operating systems	Windows XP/XPE/7
Mac compatibility	No

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	42791
Processor code	SLGYV
Processor package size	22 x 22 mm
Supported instruction sets	SSE4
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Realtec ALC888 HD
Built-in microphone	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	32 - 140 °F

Weight & dimensions

Specification	Value
Width	285 mm
Depth	196 mm
Height	33 mm
Weight	2.6 kg

Packaging content

Specification	Value
Remote control included	No

Certificates

Specification	Value
Compliance industry standards	802.11b/g/n
Certification	BSMI FCC C-tick CE CCC VCCI RoHS

Multimedia

Specification	Value
Built-in camera	No

Other features

Specification	Value
TV tuner integrated	No
