9A35-7316W7P Windbox III
Model 9A35-7316W7P Windbox IIIPart no. 009A35-060REAN 4719072222116
116 specifications
- ProcessorIntel® Core™2 Duo
- Memory1 GB
- Storage160 GB
- GraphicsNot available
- TypeMini PC
- OSWindows 7 Professional
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 1 GB
- Storage
- 160 GB
- Graphics
- Not available
- Type
- Mini PC
- OS
- Windows 7 Professional
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- 9A35-7316W7P Windbox III
- Part number
- 009A35-060R
- EAN / UPC
- 4719072222116
- Also known as
- MSI Wind Box 9A35-7316W7P Windbox III Intel® Core™2 Duo SU7300 1 GB DDR2-SDRAM 160 GB Windows 7 Professional Desktop Mini PC Black
Specifications
116 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | SU7300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.3 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor codename | Penryn |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 105 °C |
| Number of processors installed | 1 |
| Processor socket | BGA 956 |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 1 x 1 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | No |
| HDD interface | SATA II |
| Card reader integrated | No |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® GMA |
| On-board graphics card model | Intel® GMA 4500MHD |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel® GS45 Express |
| Motherboard southbridge | Intel ICH9M |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet |

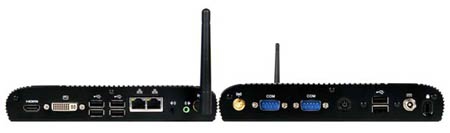

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 2 |
| DVI port | Yes |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| DC-in jack | Yes |
| Serial ports quantity | 2 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Power requirements | 19V |
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Compatible operating systems | Windows XP/XPE/7 |
| Mac compatibility | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 42791 |
| Processor code | SLGYV |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE4 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtec ALC888 HD |
| Built-in microphone | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 32 - 140 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 285 mm |
| Depth | 196 mm |
| Height | 33 mm |
| Weight | 2.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Compliance industry standards | 802.11b/g/n |
| Certification | BSMI, FCC, C-tick, CE, CCC, VCCI |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
